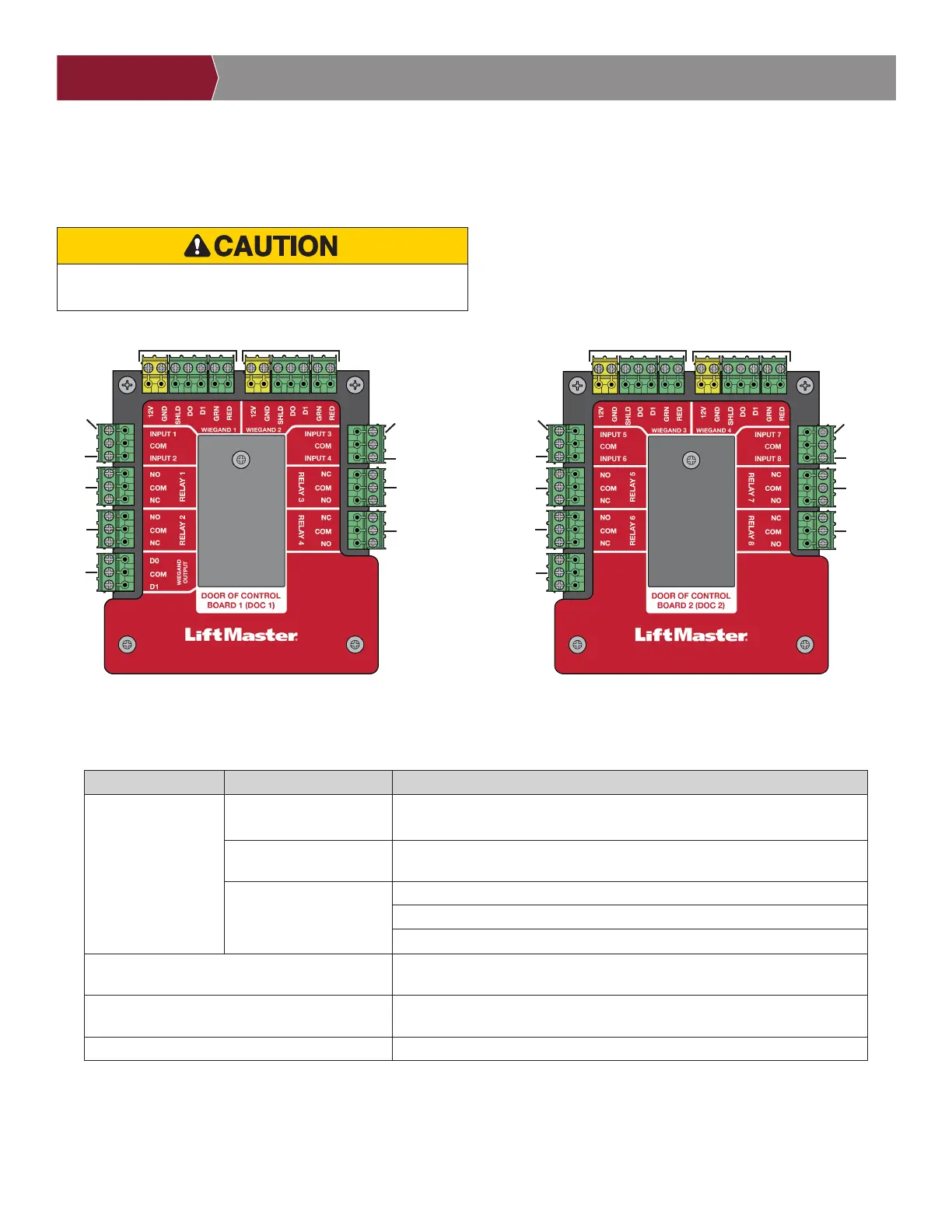

Door of Control Board Overview
The CAPXLV2 has a combination of access control inputs/outputs on the door of control board(s) that work in conjunction to control up
to 4 access points each, so CAPXLV2 can control up to 8 access points in total.
INPUT/OUTPUT TYPE (CONFIGURABLE) USED FOR
Monitored Inputs REX
(Request to Exit)
External Free Exit Loop Detectors, REX Buttons, and Proximity Sensors
Knox Box In the case of an emergency (medical or fire), the Fire Rescue Department
is able to gain entry.
Status Door sensors detecting when door is ajar.
Supervised Gate Operators detecting when failed to close.
Supervised Gate Operators detecting when failed to open.
Relay Gate Operator, Door Strikes, Alarm Shunt, Maglocks, and Lights (for
control only - power to be provided by external supply)
Wiegand Input Proximity Readers (Wiegand 12Vdc power is for readers only, do not use
to power other external devices).
Wiegand Output Access grant activity for integration with other access systems
Wiegand 1
Wiegand 2 Wiegand 3
Wiegand 4
Monitored
Input 5
Monitored
Input 6
Monitored
Input 3
Monitored
Input 4
Relay 1
Relay 3
Relay 2
Relay 5
Relay 6
Relay 4
Relay 7
Relay 8
Monitored
Input 7
Monitored
Input 8
Monitored
Input 1
Monitored
Input 2
Wiegand
Output
Wiegand
Output
NOTE: Only the 26-bit Wiegand protocol and OSDP protocol are compatible in UL installations.
DO NOT use the Wiegand 12V power output port to power
anything except the Wiegand proximity readers.
NOTE: Monitored inputs can operate in
any of the following configurations: Rex,
knox box, or status.
