Compliance UL294
CAPXLV2 Capacity Resident Capacity 50,000 / Local Event History 50,000
Supply Voltage 1 (VIN Connector) 24V DC 72W (3A) MAX. The 24v power supply provided in the box is recommended.
Supply Voltage 3 (AC/DC converter) 120 VAC, 1.5 A, 60 Hz
Supply Voltage 2 (POE) 36-55VDC 60W max 802.3bt Type 3 four pair compatible max
PoE Supply Connector Configuration Alternative B (or Mode B)
Operating Temperature -20-50C
Storage and Shipping Temperature -40-85C
Enclosure Front (Aluminum), Rear (Carbon Steel)
Wiegand Inputs* (4) 26-bit, *30-bit, *32-bit Mifare, *36-bit Mifare, *56-bit Mifare, *37-bit with and without facility
code, and ASCII (for keypads). 12VDC, 250mA power output (per input)
Relay Contacts (8) SPDT 3A @ 30VDC (each)
OSDP OSDP 2.2, 12 Vdc, 1.3 A max (total)
OSDP Interface (1): connected up to 8 recommended OSDP readers in daisy chain configuration
Accessory Compatibility Refer to the accessory page for compatible accessories
Network Compatibility 10/100 Ethernet
Bluetooth
®
Version 5.0
Wi-Fi Compatibility 802.11 a/b/g/n and 802.11ac 2.4GHz / 5GHz
Wi-Fi Security CAPXLV2 is compatible with routers using the following security protocols: WPA3-SAE, WPA2-
PSK/WPA3-SAE, WPA2-PSK, or WPA/WPA2-PSK
WiFi Range (w/ external antenna) Up to 500 feet (152.4 m), Open Air/Line-of-Sight (range will vary depending on obstructions and
2.4GHz/5GHz router type)
Built-in Liftmaster Passport Receiver Security+ 2.0
Wireless Communication to Gate Operator Up to 750 feet (228.6 m), Open Air/Line-of-Sight (range will vary depending on obstructions),
Compatible with LiftMaster Security+ 2.0
®
gate operators, 2018 LiftMaster Gate Operators
(firmware v4.4 and later), HD Operators (firmware v3.3 or later). NOT compatible with LiftMaster
Barrier Gate Operators.
Video Camera 1080p, Viewing angle - 135 degree diagonal, Up to 1,000 30-second temporary video events
stored locally

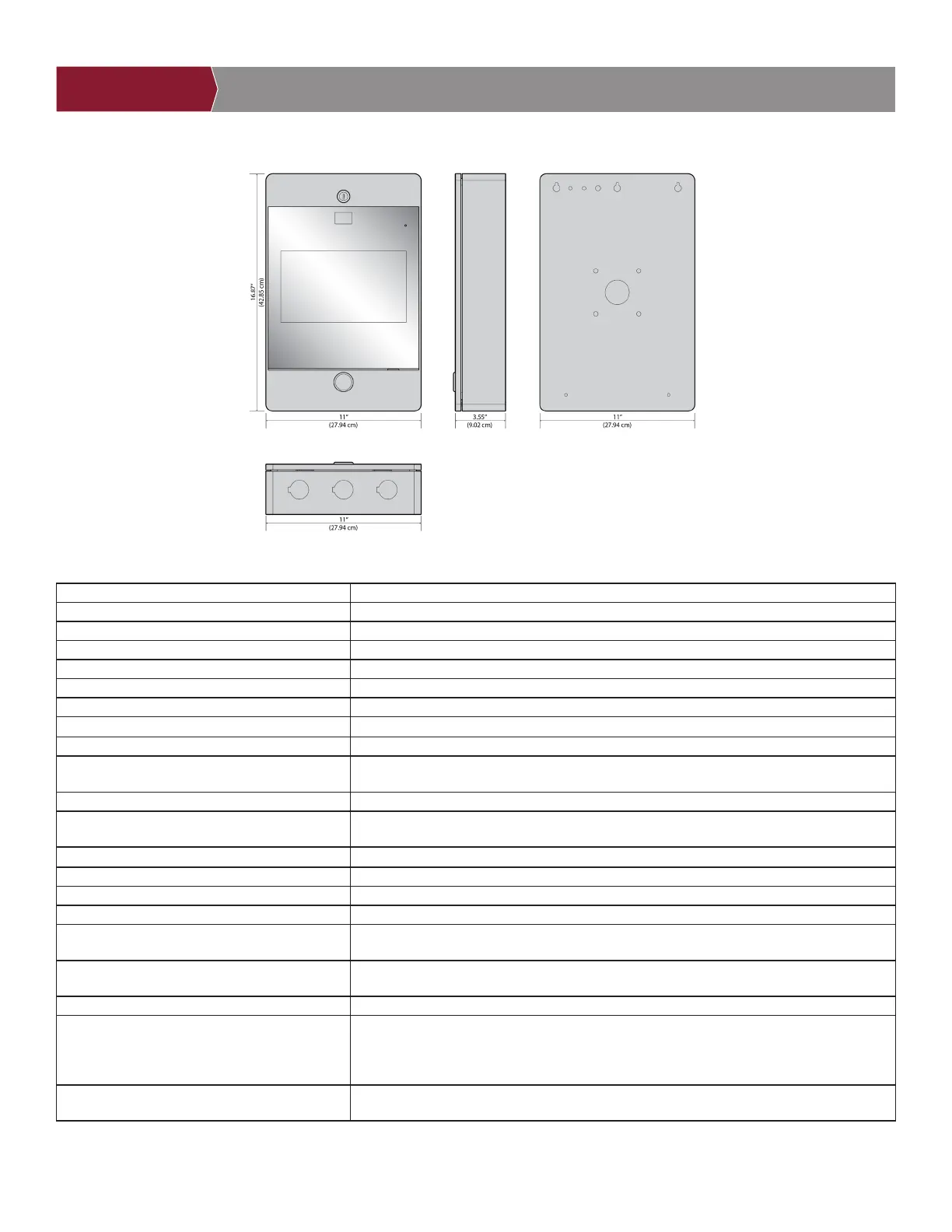

Dimensions
Specifications
ACCOUNT SETUP NETWORK/MOUNTINGPOWER ACCESS CONTROLINTRODUCTION
INTRODUCTION
ACCOUNT SETUP NETWORK/MOUNTINGPOWER ACCESS CONTROL
INTRODUCTION ACCESS CONTROL
ACCOUNT SETUP NETWORK/MOUNTINGPOWER
INTRODUCTION
ACCOUNT SETUP NETWORK/MOUNTINGPOWER ACCESS CONTROL
INTRODUCTION ACCOUNT SETUP NETWORK/MOUNTINGPOWER ACCESS CONTROL
BOTTOM VIEW
FRONT VIEW SIDE VIEW BACK VIEW
*NOTE: Only the 26-bit Wiegand protocol and OSDP protocol are compatible in UL installations. Wi-Fi and wireless ranges were not evaluated.
