EN
W415-2005 / A / 06.26.19
13
installation
Wall
Wall

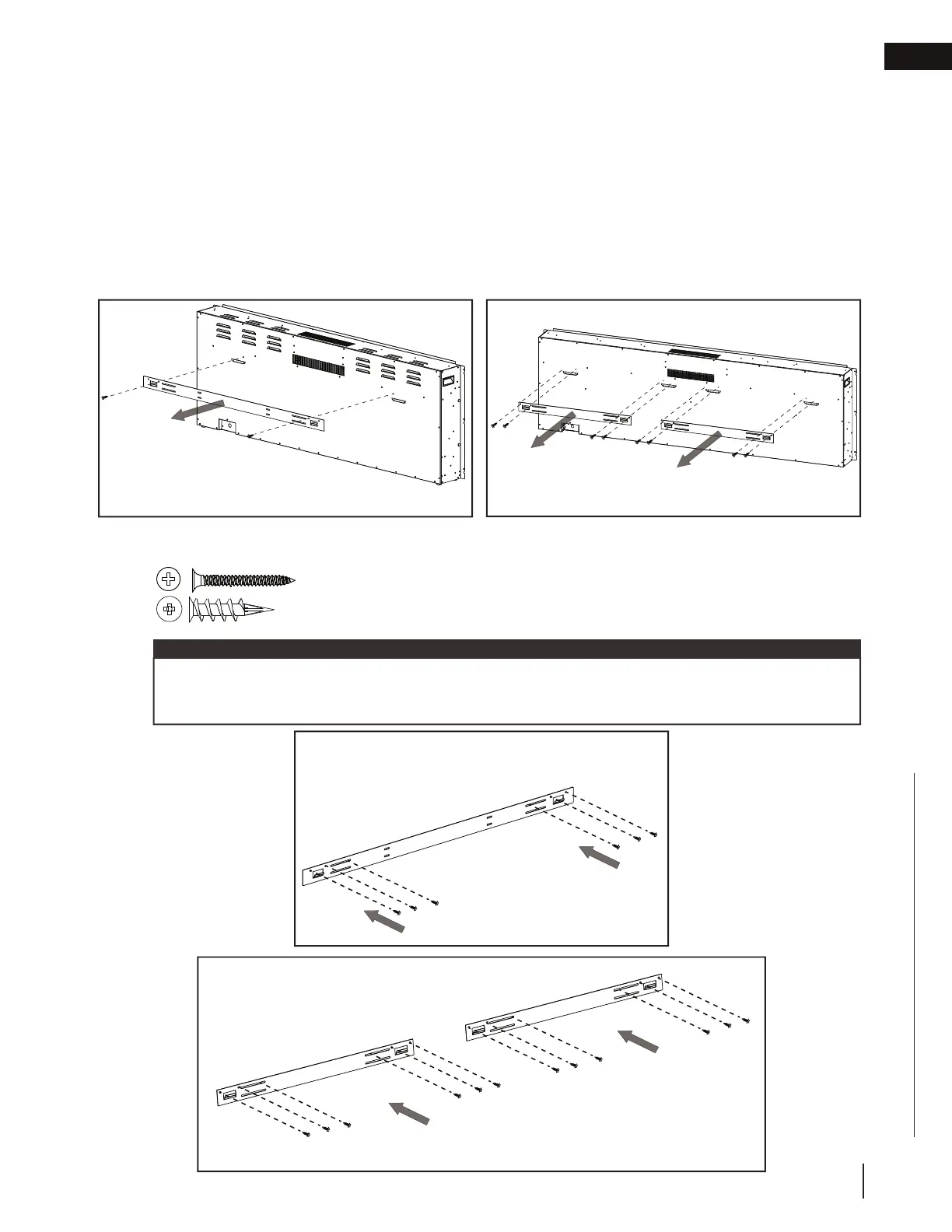

3.3 wall mount installation
Due to the many different materials used on different walls, it is highly recommended that you consult your local
builder before you install this appliance on the wall.
A. Select a location that is not prone to moisture and is located at least 36" (91.4cm) away from combustible
materials such as curtain drapes, furniture, bedding, paper, etc.
B. Remove the front glass (see “front glass removal / installation” section).
C. Have two people hold the appliance against the wall to determine the fi nal location.
D. Place appliance face down on a soft, non abrasive surface. Remove the bracket from the back of the
appliance by removing the screws (Fig. 3-1). Set the bracket aside and discard the screws.
E. Mark out location, then mount the bracket onto the wall using screws (supplied). This bracket MUST have
the hooks facing upward and be level (Fig. 3-2).
It is strongly recommended that the mounting bracket be screwed into the wall studs where possible. If
the wall studs cannot be used, ensure that the supplied plastic anchors are used to affi x the bracket to
the wall and the bracket is adequately secured.
note:
A x 6 for NEFL42/50/60HS/HI
A x 12 for NEFL72/100HS/HI
Fig. 3-1
Fig. 3-1
NEFL42/50/60HS/HI
Bracket Illustrated
NEFL72/100HS/HI
Bracket Illustrated
B x 6 for NEFL42/50/60HS/HI
B x 12 for NEFL72/100HS/HI
NEFL42/50/60HS/HI
Bracket Illustrated
NEFL72/100HS/HI
Bracket Illustrated
Fig. 3-2
Fig. 3-2
