electrical information

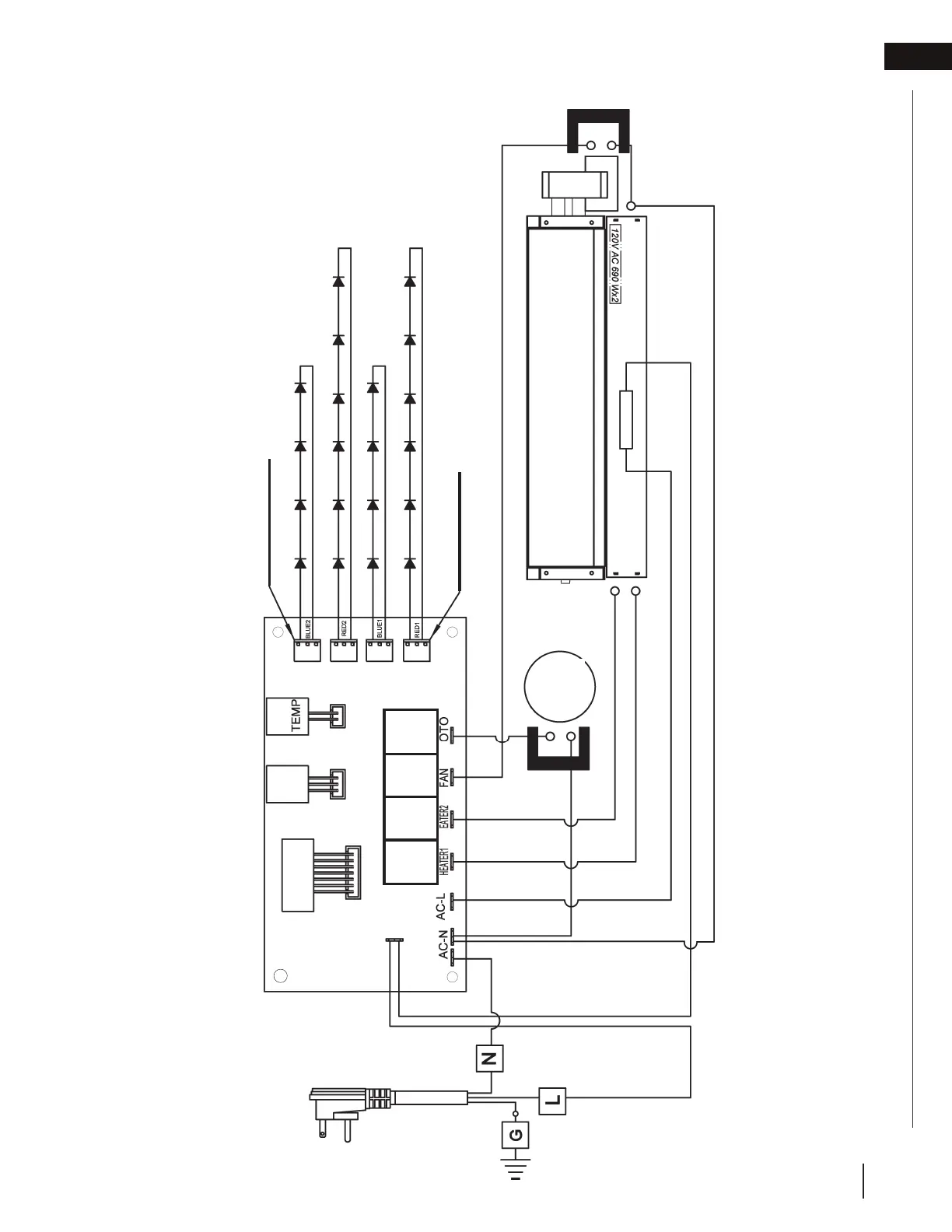

4.3 wiring diagram (NEFL50/60HS/HI)
HEATER FAN
VENTILATEUR DE CHAUFFAGE
REMOTE RECEIVER
RÉCEPTEUR À
DISTANCE
TOUCH PANEL
PANNEAU TACTILE
BLUE/BLEU 1-2
BLUE/BLEU
RED/ROUGE 1-2
ORANGE
HEATER FAN
VENTILATEUR DE CHAUFFAGE
SYNCHRONOUS
MOTOR
MOTEUR
SYNCHRONE
