EN
W415-2005 / A / 06.26.19
15
installation
3.4 recessed pre-installation
A. Select a location that is not prone to moisture and is located at least 36” (94.1cm) away from combustible
materials such as curtain drapes, furniture, bedding, paper, etc.
B. Measure the appliance and create a rough-in frame with electrical (see “framing” section).
C. Remove the front glass (see “front glass removal / installation” section).
D. Hold the appliance up to ensure it will fi t into the framing.
Due to the many different materials used on different walls, it is highly recommended that you consult your local
builder before you install this appliance on the wall.

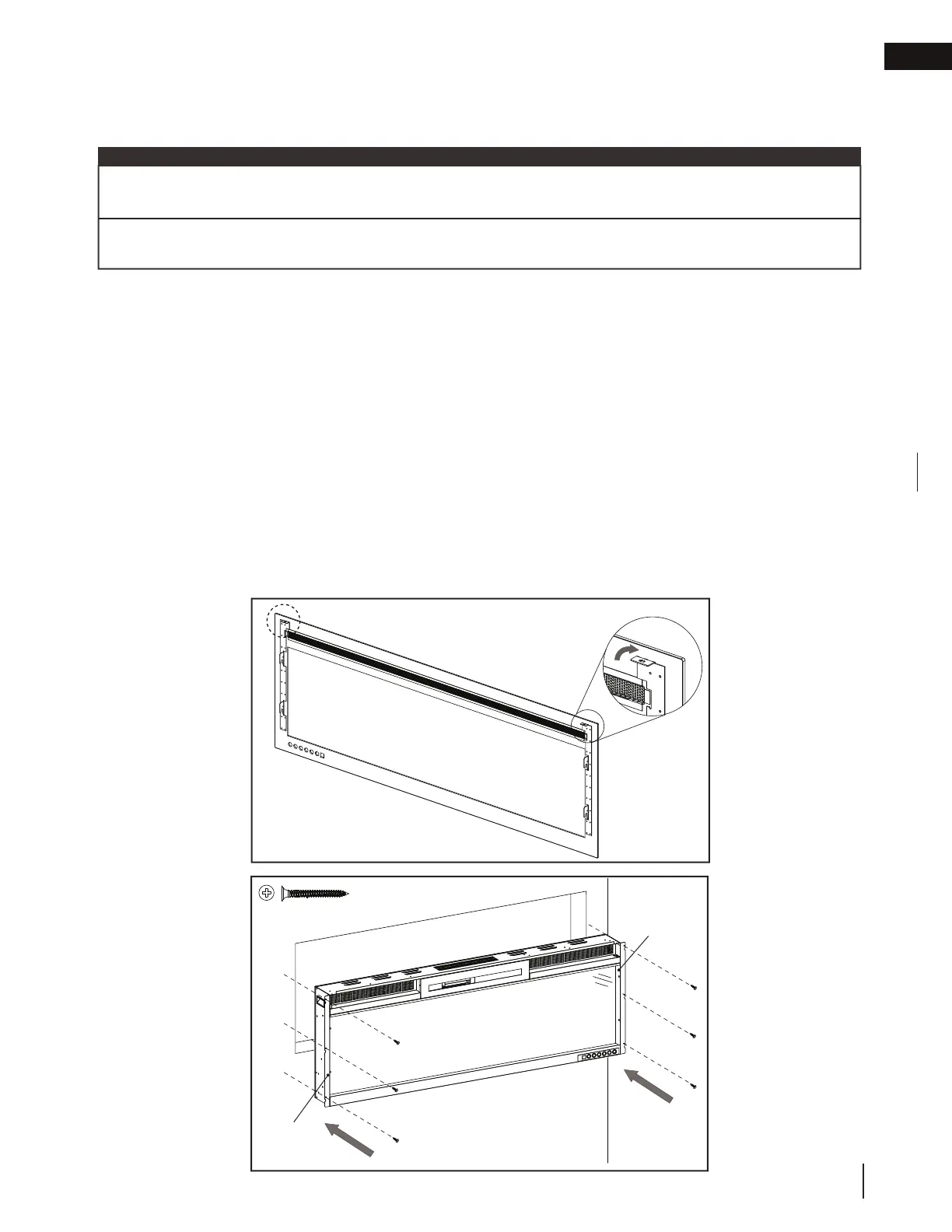

Fig. 3-4
NEFL60HS illustrated
Repeat on
opposite side.
Fig. 3-5
NEFL60HS illustrated
Side
Flange
Side
Flange
It is recommended the walls of the appliance enclosure be fi nished (i.e. drywall) to avoid exposed insulation or
vapour barrier coming in contact with the appliance. This will ensure clearance to combustibles is maintained.
note:
The appliance tabs come bent. You must bend the tab fl at by hand when fully recessing the appliance into the
wall (see “fully recessed” section).
3.4.1 fully recessed installation
A. Bend the two top tabs upward on the front glass until they are fl at (Fig. 3-4). Set the front glass aside.
B. Remove power cord and complete hardwiring (see “hardwiring installation” section).
C. Insert the appliance into the rough-in frame, and then secure it by installing 6 screws (supplied) through
the side fl anges (Fig. 3-5).
D. Install media (see “crystal ember installation” section). You must complete this step before moving
onto the next step.
E. Reinstall the front glass.
A x 6
