installation
3.4.3 into a mantel
A. Remove the front glass (see “front glass removal / installation” section).
B. Install the rubber feet onto the bottom of the appliance for stability (see “rubber feet installation” section).
C. Remove the 2 screws from the appliance and then re-use them to fi x 2 brackets (supplied) in place (Fig.
3-8).
D. Insert the appliance into the mantel, and secure it by installing 2 screws (supplied) through the metal
brackets (Fig. 3-9).
E. Install media (see “crystal ember installation” section). You must complete this step before moving
onto the next step.
F. Reinstall the front glass.

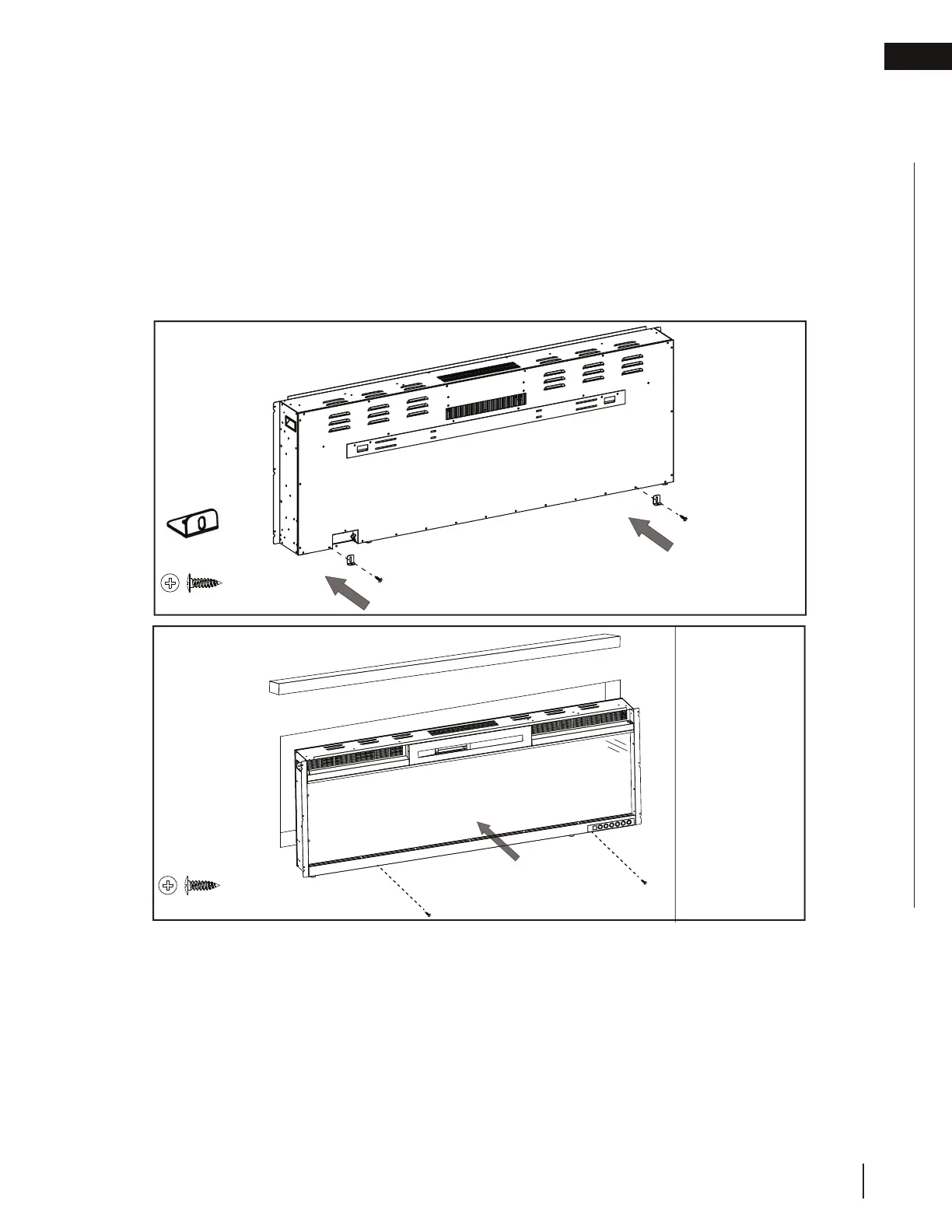

Fig. 3-8
NEFL60HS illustrated
Fig. 3-9
NEFL60HS illustrated
C x 2
C x 2
For illustrative
purposes only. Mantel
structures may vary.
F x 2
