W415-2350 / 10.28.19
EN
18
framing
Minimum clearance to combustible construction from appliance and vent surfaces:
Appliance framing: - 6" (152mm) to top
- 0" to stand-offs
(Rear and sides)
Vent pipe*: - 2" (51mm) top
- 1" (25mm) sides and bottom
Recessed depth: - 7" (178mm)
WITHOUT FRAME INSTALLED
WITH FRAME INSTALLED

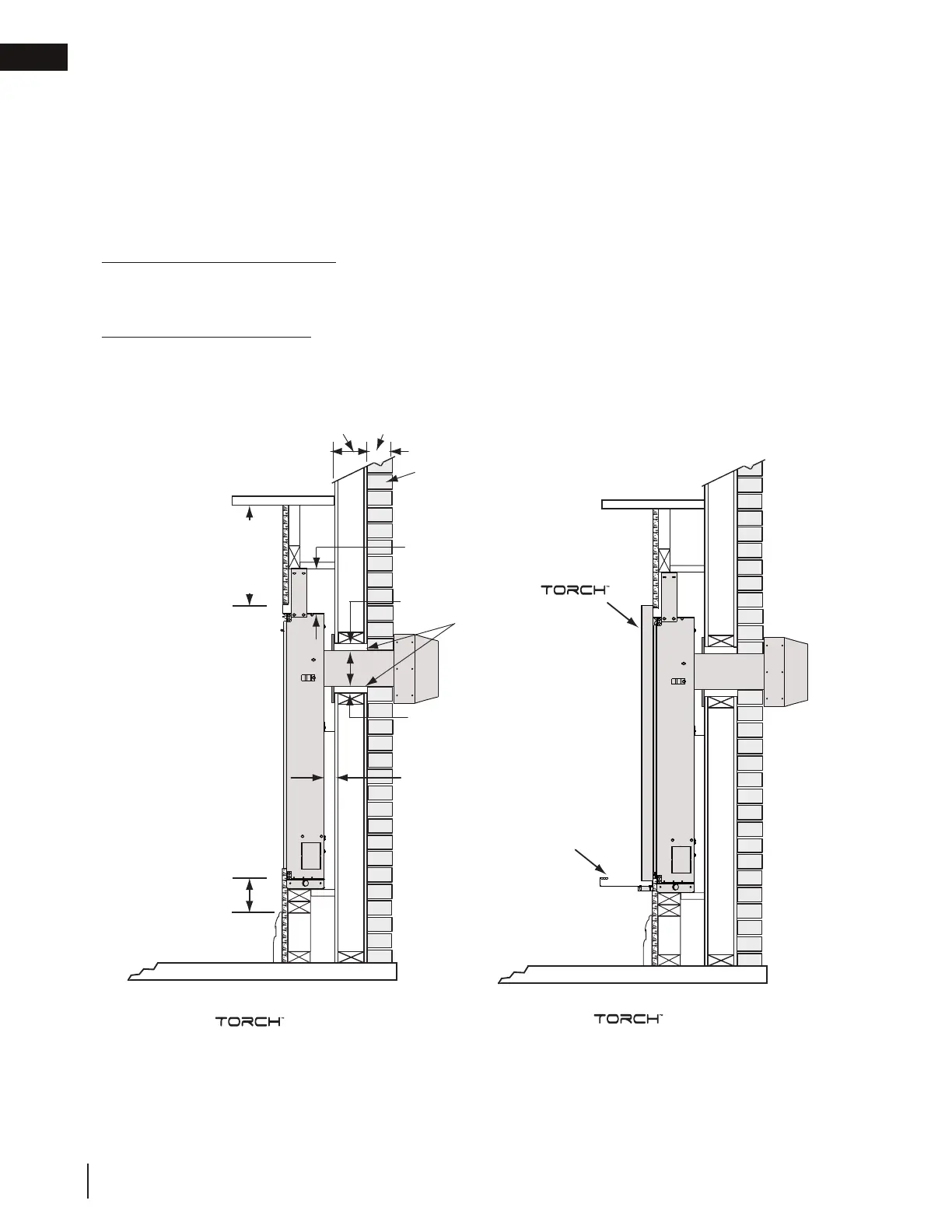

4.1 minimum clearance to combustibles
2" (51mm)
MIN.*
12" (305mm)
MIN. TO
COMBUSTIBLES
(to ceiling or mantle)
1
1
/2" (38mm)
MIN.
* Any protruding finishing
material installed in this
space (ie. baseboards)
must leave 2" (51mm) of
unobstructed clearance to
allow for full rotation of the
control door.
COMBUSTIBLE
NON-COMBUSTIBLE
1" (25mm)
1" (25mm)
0” IF
NON-COMBUSTIBLE
FINISHING IS USED
SUCH AS BRICK AND
STONE.
BRICK
6" (152mm)
MIN.
* HORIZONTAL VENT SECTIONS: A minimum clearance of 1" (25mm) at the bottom and sides and 2" (51mm)
at the top of the vent pipe in all horizontal runs to combustibles is required. Use fi restop spacer W010-1961
(supplied).
* VERTICAL VENT SECTIONS: A minimum of 1" (25mm) all around the vent pipe on all vertical runs to
combustibles is required. Use fi restop spacer W500-0358 (not supplied).
FRAME
CONTROL DOOR
(OPEN POSITION)
