It is necessary to hard wire this appliance.
Permanently framing the appliance with an enclosure, requires the appliance junction box to be hard wired.
This appliance must be electrically connected and grounded in accordance with local codes. In the absence of
local codes, use the current CSA C22.1 CANADIAN ELECTRICAL CODE in Canada or the ANSI/NFPA 70-1996
NATIONAL ELECTRICAL CODE in the United States.
12
3
4
YELLOW
BROWN
W
H
I
T
E
B
L
A
C
K
IGNITOR
WIRE
IGNITOR
GAS
VALVE
SWITCH
CONTROL MODULE
110v
POWER
SUPPLY
GFI
(Ground Fault Interrupter)
G
R
O
U
N
D

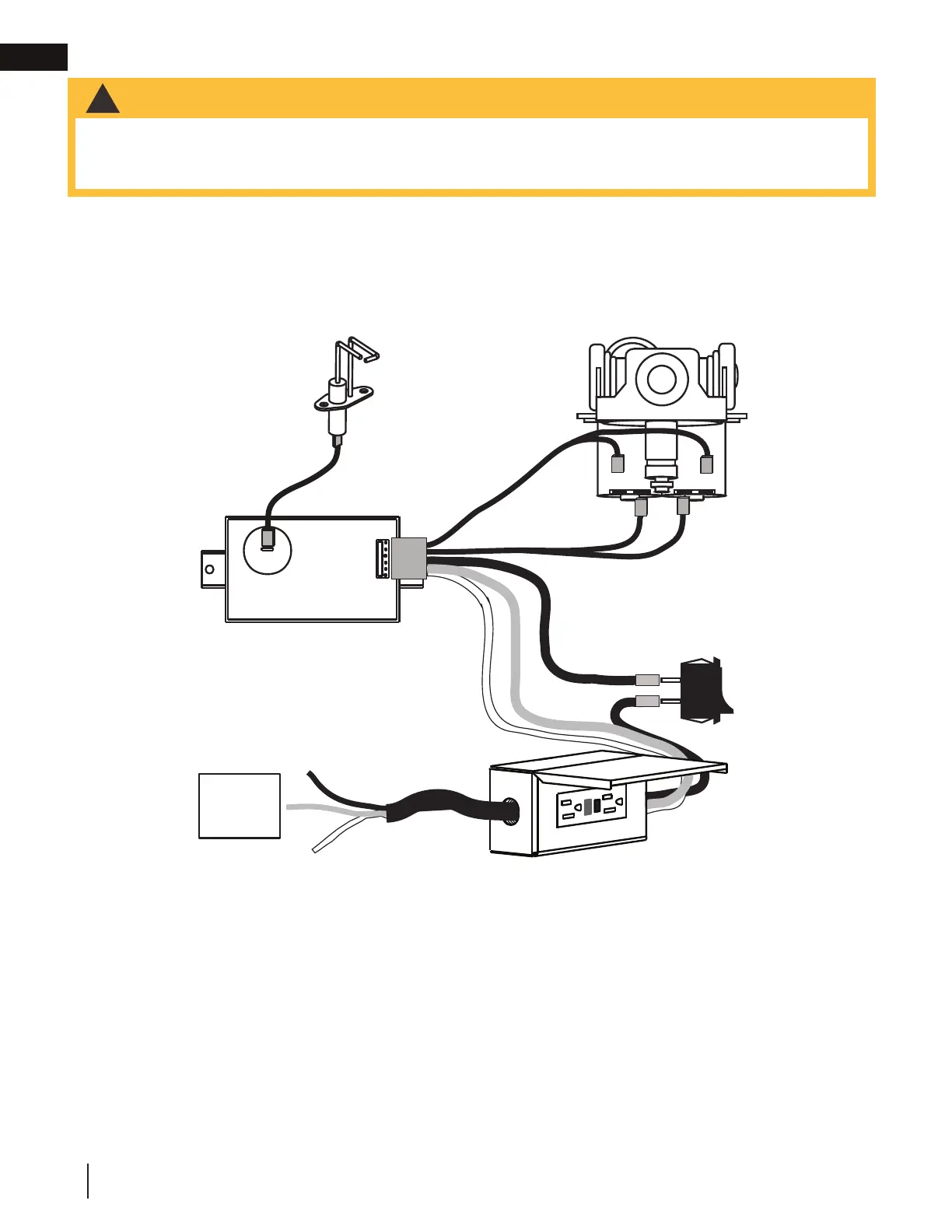

Illustration for reference only.
Follow the complete installation
instructions included with the GFI.
RESET
TEST
6.0 electrical information
6.1 hard wiring connection
!
WARNING
• Risk of electric shock! Control and valve operate with 110V.
• Do not use the appliance if any part has been underwater. Call a qualifi ed service technician immediately to
have the appliance inspected for damage to the electrical circuit.
