fi nishing
5.0 fi nishing
5.1 mounting cabinet installation
INSTALLATION
TEMPLATE
TORCH
MOUNTING
FRAME
CABINET
1
NOTE: It is recommended that all fasteners be stainless
steel.

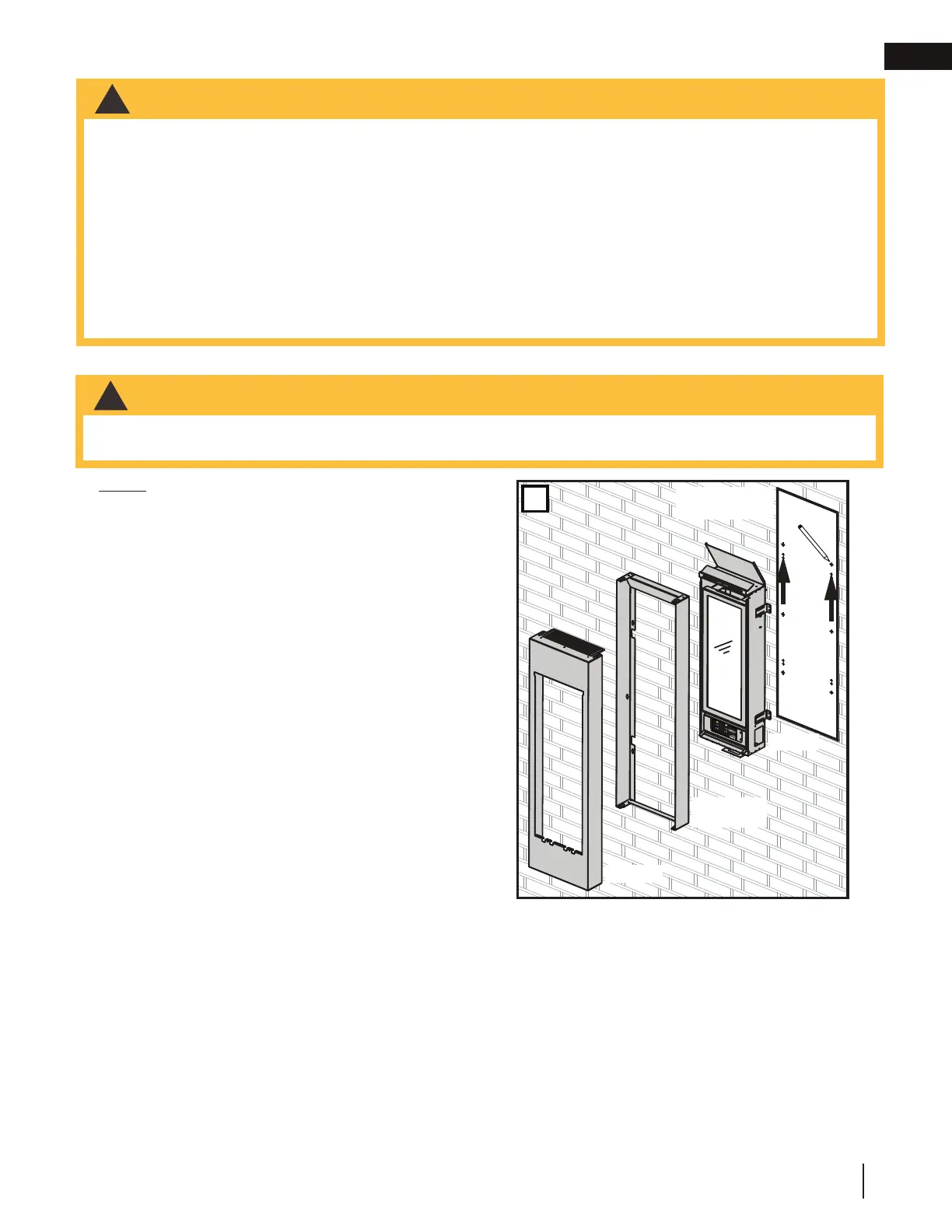

A. Using the installation template (W122-0401) supplied
with the TMCK or TMCSS kit, determine the best
mounting location for your new Torch. See “minimum
clearance to combustibles” section. Mark all 14 hole
centres on the wall (surface) using the template.
!
WARNING
• Risk of fi re!
• Never obstruct the front opening of the appliance.
• The front of the appliance must be fi nished with any non-combustible materials such as brick, marble, granite,
etc., provided that these materials do not go below the specifi ed dimension, as illustrated.
• Do not strike, slam, or scratch. Do not operate appliance with glass removed, cracked, or scratched.
• Facing and/or fi nishing material must never overhang into the appliance opening.
• The glass door assembly is a safety device designed to pivot forward when relieving excess pressure that
might occur. Finishing or other materials must not be located in the opening surrounding the door as this will
interfere with the doors ability to relieve pressure.
• If applicable, drywall dust will penetrate into the blower bearings, causing irreparable damage. Care must
be taken to prevent drywall dust from coming into contact with the blower or its compartment. Any damage
resulting from this condition is not covered by the warranty policy.
!
WARNING
• Before starting the installation, remove the protective layer from all three components that make up the GT8
(cabinet, frame and torch).
To Next Page
