© National Instruments | 2-9
PXIe-1095 User Manual
Installing Peripheral Modules
Caution The PXIe-1095 chassis has been designed to accept a variety of peripheral
module types in different slots. To prevent damage to the chassis, ensure that the
peripheral module is being installed into a slot designed to accept it. Refer to
Chapter 1, Getting Started, for a description of the various slot types.
This section contains general installation instructions for installing a peripheral module in a
PXIe-1095 chassis. Refer to your peripheral module user manual for specific instructions and
warnings. To install a module, complete the following steps:
1. Connect the AC power source to the PXI Express chassis before installing the module. The
AC power cord grounds the chassis and protects it from electrical damage while you install
the module.
2. Ensure that the chassis is powered off.
3. Install a module into a chassis slot by first placing the module card PCB into the front of
the card guides (top and bottom), as shown in Figure 2-5. Slide the module to the rear of
the chassis, making sure that the injector/ejector handle is pushed down as shown in
Figure 2-5.
4. When you begin to feel resistance, push up on the injector/ejector handle to fully seat the
module into the chassis frame. Secure the module front panel to the chassis using the
module front-panel mounting screws.

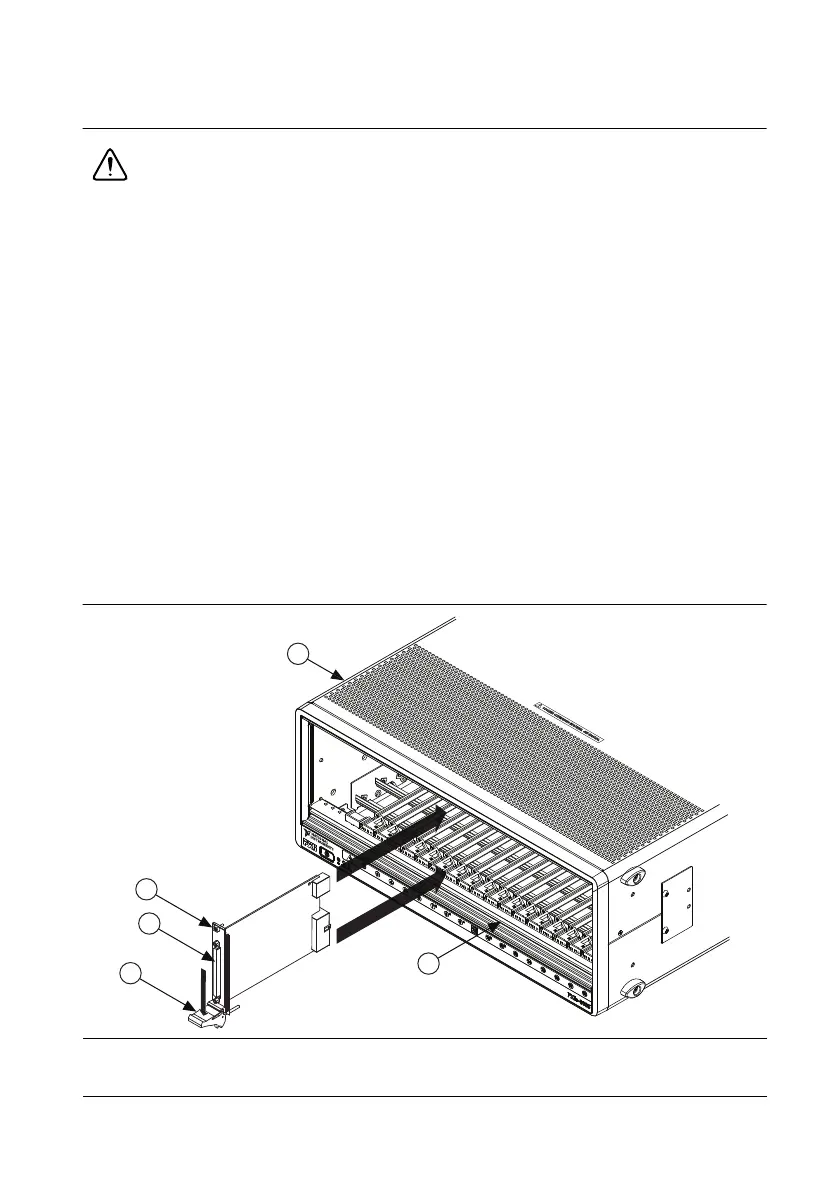

Figure 2-5. Installing PXI, PXI Express, or CompactPCI Peripheral Modules
1 Injector/Ejector Handle
2 PXI Peripheral Module
3 Peripheral Module Front Panel Mounting Screws (2x)
4 PXIe Chassis
5 Injector/Ejector Rail
