Chapter 2 Installation and Configuration
LED Indicators

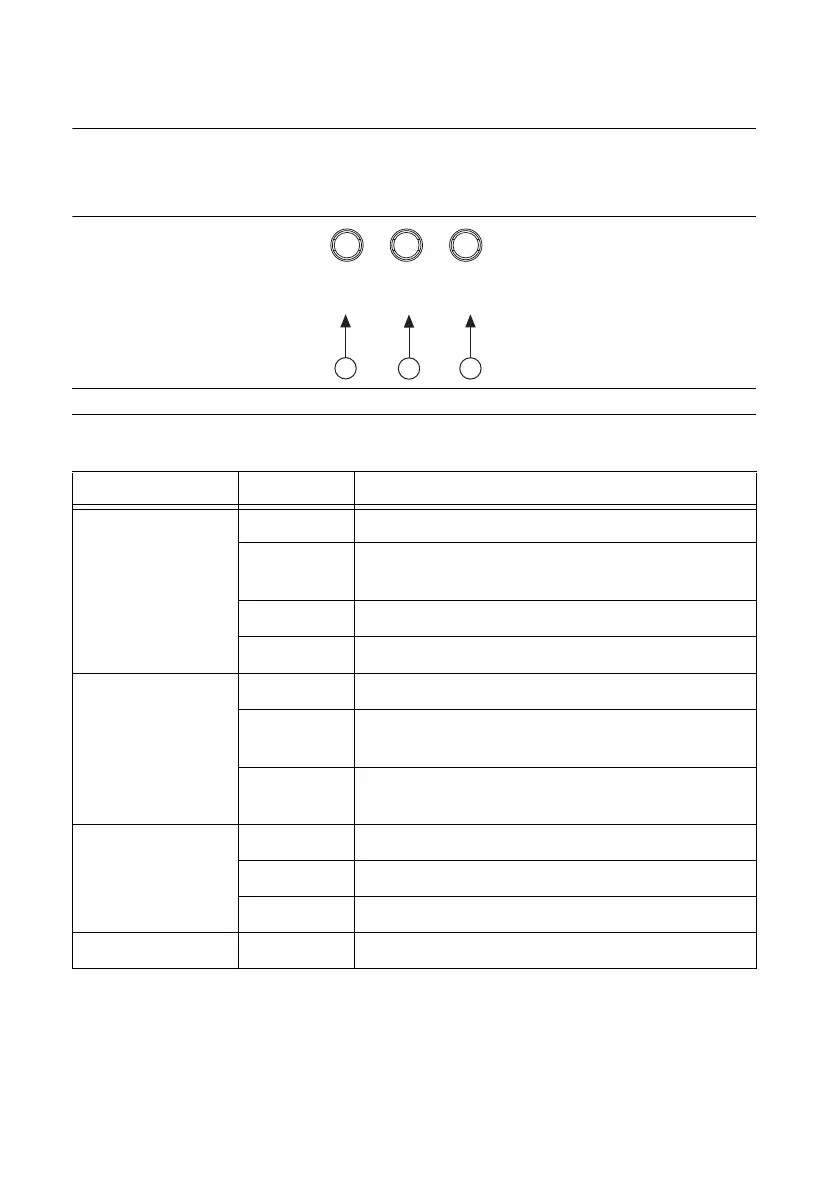

Figure 2-6 shows the front panel LEDs. Table 2-1 describes the front panel LED states. Refer to
Figure 1-1, Front View of the PXIe-1095 Chassis for LED locations.
Figure 2-6. Front Panel LEDs
1 Power Supply LED 2 Temperature LED 3Fan LED
Table 2-1. Front Panel LED States
LED State Description
Power Supply LED Off Chassis is powered off.
Steady green Chassis power supply or supplies are active, and
operating normally.
Blinking red In a redundant power setup, one power supply has failed.
Steady red The chassis power supply or supplies have failed.
Temperature LED Off Chassis is powered off.
Steady green Intake or exhaust temperature is within chassis
operating range.
Steady red Intake or exhaust temperature is outside of chassis
operating range.
Fan LED Off Chassis is powered off.
Steady green All chassis fans are enabled and operating normally.
Steady red One or more chassis fans have failed.
All LEDs Blinking red An internal chassis fault has occurred.
