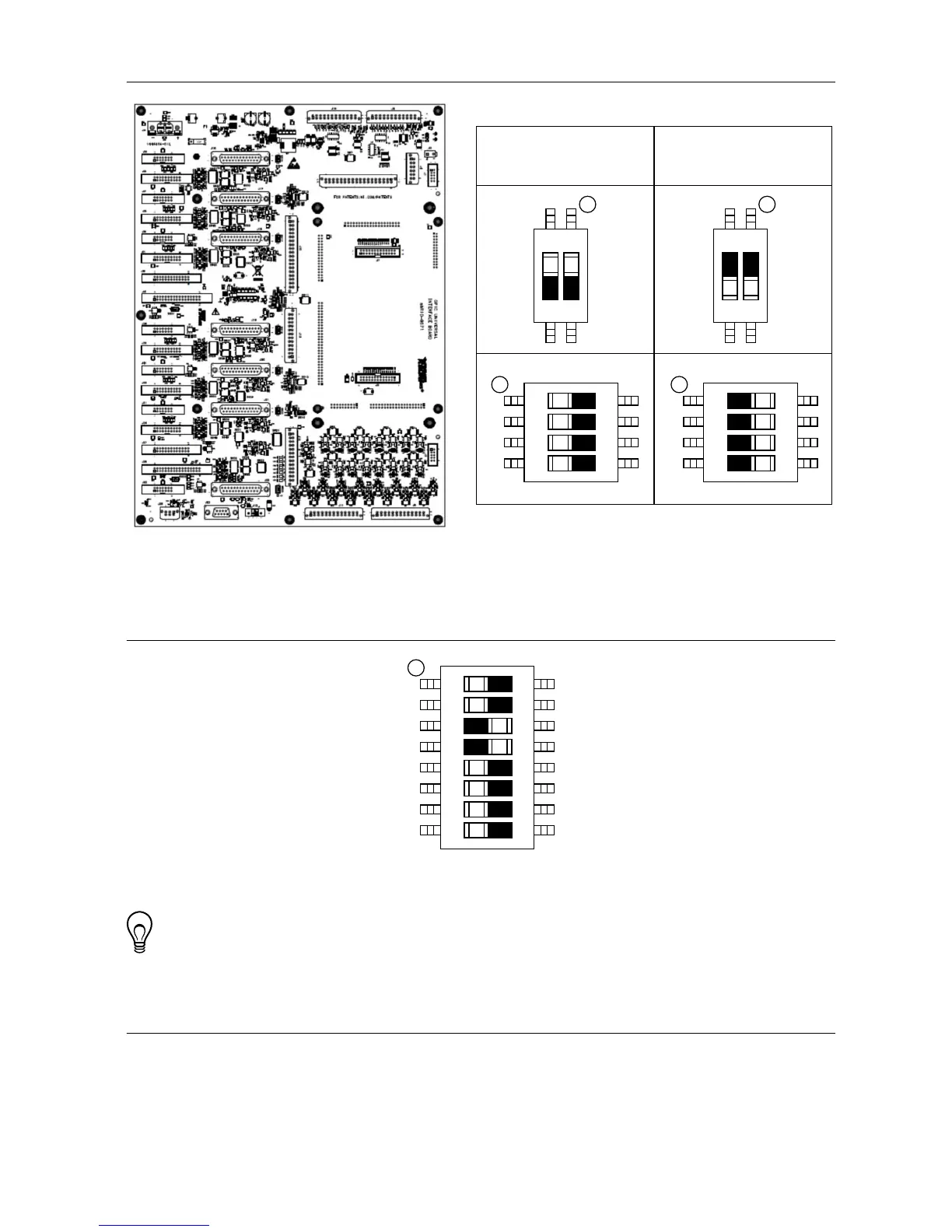

Figure 2. Board and DIP Switch Orientation
Contacts OFF
(open circuit)
Contacts ON
(closed circuit)
1
2
ON
1
2
ON
1
2
3
4
ON
1
2
3
4
ON
Contacts are referenced by the switch reference designator. As an example, the following
figure shows SW48 configured with contacts 3 and 4 closed.
Figure 3. Contact Configuration
1
2
3
4
ON
5
6
7
8
SW48
Tip Use a sharp tool to toggle the contacts.
Power Considerations
It is recommended that you perform all resistor changes and switch configurations before the
sbRIO-9687 is placed in its final location.
