Chapter 2 Analog Input and Temperature Sensor Measurements
To use the SCB-68A with ground-referenced single-ended inputs, do not use the open positions
that connect the input to AI GND, positions B and D, for grounded sources as shown in
Figure 2-3. Build any signal conditioning circuitry requiring a ground reference in the custom
breadboard area using AI SENSE as the ground reference instead of building the circuitry in the
open component positions.

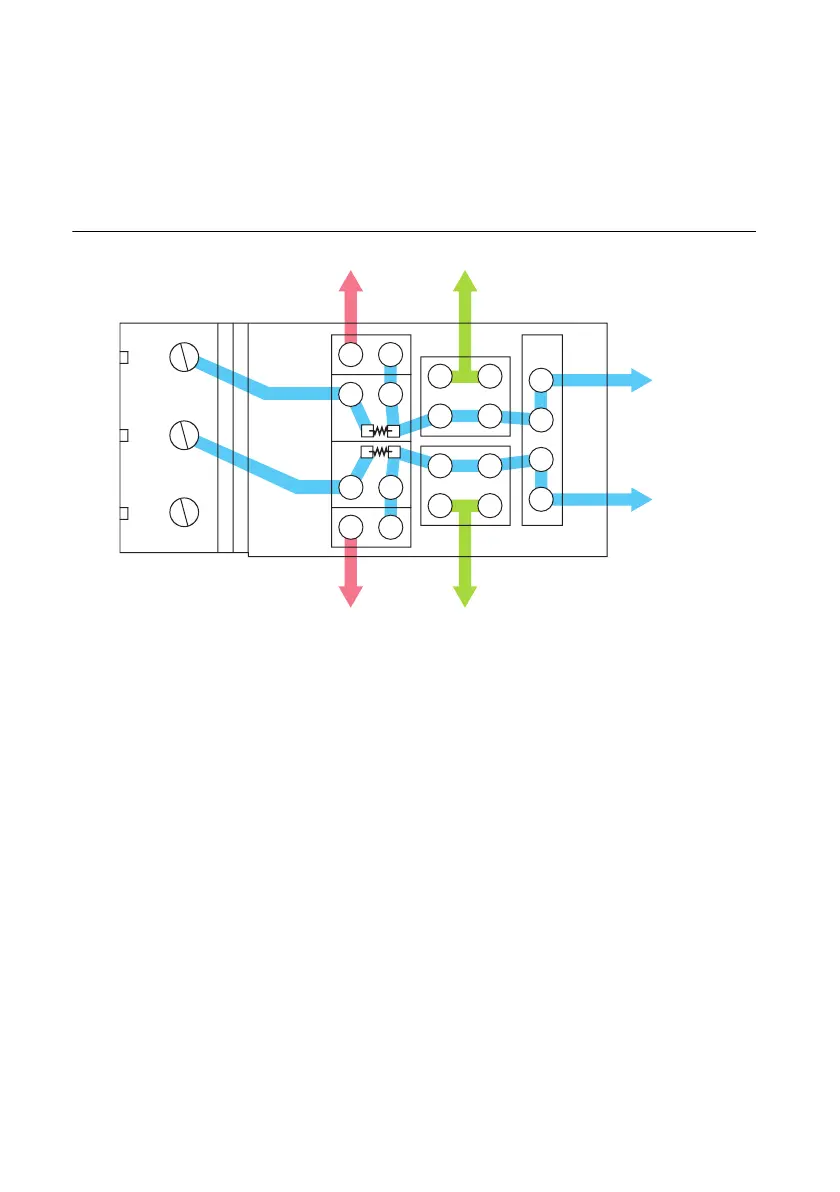

Figure 2-3. Analog Input Channel Pad Configuration for AI <i> and AI <i+8>
AIi
AIi+8
y
SCx
E
A
F
G
B
C
D
+
+
+
–
+
5 V AI GND
+
5 V AI GND
AI i
AI i
+
8
