Chapter 3 Configuring Your SCXI Hardware and Software
© National Instruments Corporation 3-27 Getting Started with SCXI
If you cable this SCXI-1124 directly to a plug-in DAQ device, then use the
following procedure to configure your SCXI-1124:
1. Set jumper W1 for a single chassis or multichassis system, as shown in
Table 3-19.
2. If you are cabling this module directly to a DAQ device, set jumpers
W1, W2, and W3 depending on the type of DAQ device you are using,
as shown in Table 3-20.

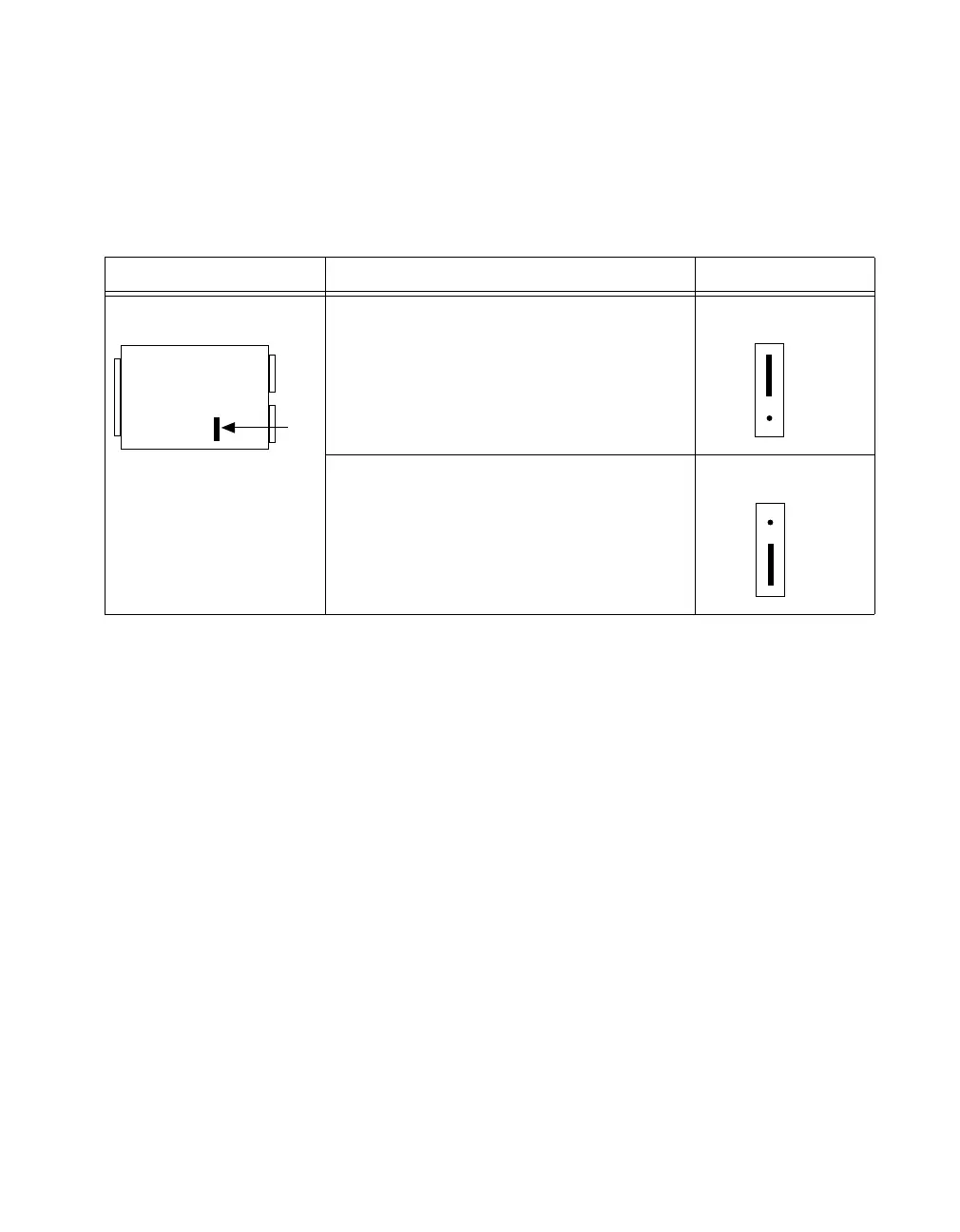

Table 3-19. SCXI-1124 Chassis Jumper Configuration
Jumper Description Configuration
Pullup—Use this setting for a single-chassis
system. Connects a 2.2 kΩ pullup resistor to
the SERDATOUT line (factory-default
position).
No Pullup—Use this setting for additional
cabled SCXI-1124 modules in a multichassis
system. No pullup resistor is connected to the
SERDATOUT line (parking position).
W1
P
W1
NP
P
W1
NP
