VX150 TO VX2 TROUBLESHOOTING MANUAL RESPONDING TO ALARMS
PAGE 3.1.52 VERSION 2.0 2023-04-20

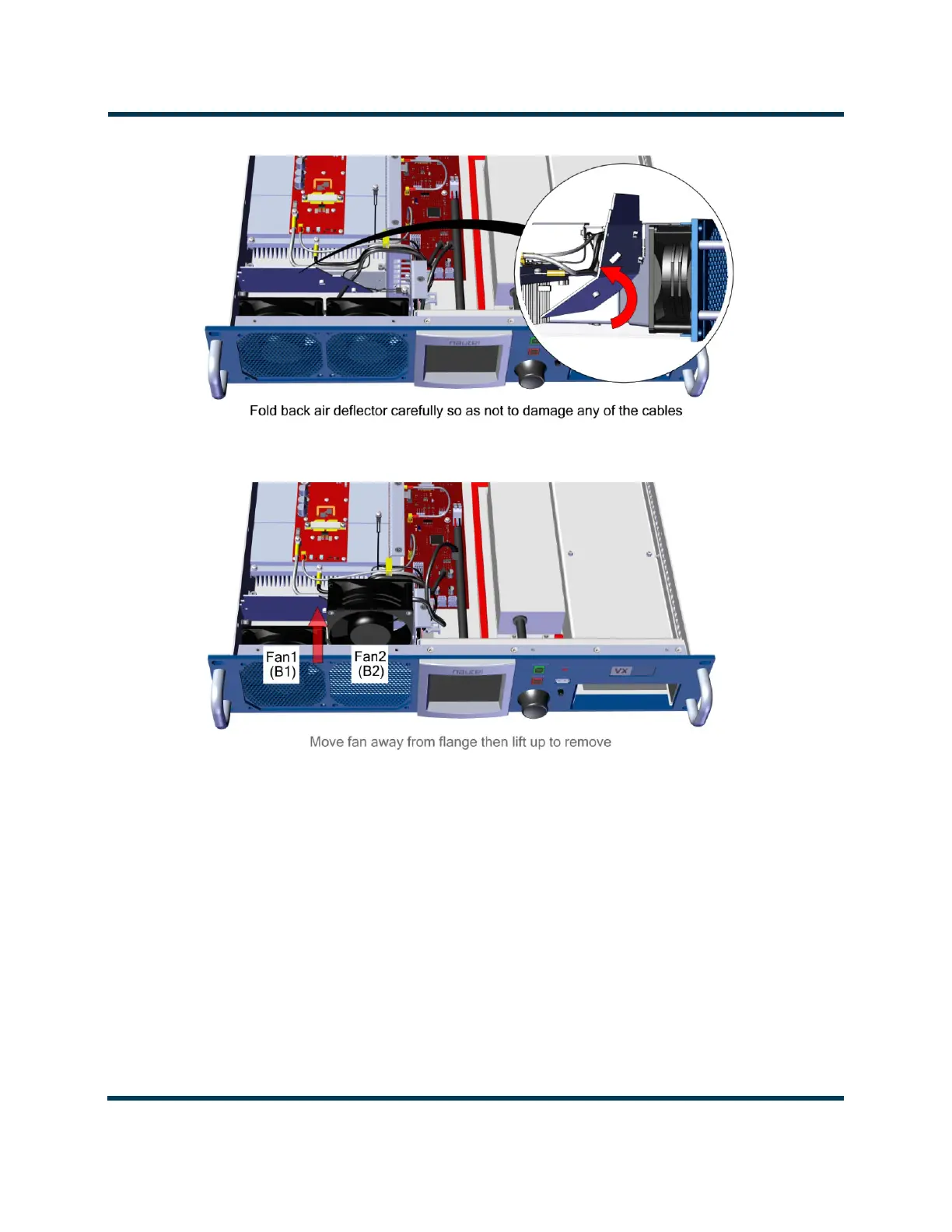

Figure 3.1.20: Air Deflector Relocation
Figure 3.1.21: Fan Removal
14. Obtain the replacement fan(s) (Nautel part # ZAP68).
15. Note the orientation of the fan when installing. The Airflow indicator arrows on the fan should be
pointing up and away from the front panel, such that air will be drawn in through the front panel.
See Figure 3.1.22 on page 3.1.53.
