VX150 TO VX2 TROUBLESHOOTING MANUAL RESPONDING TO ALARMS
VERSION 2.0 2023-04-20 PAGE 3.1.53

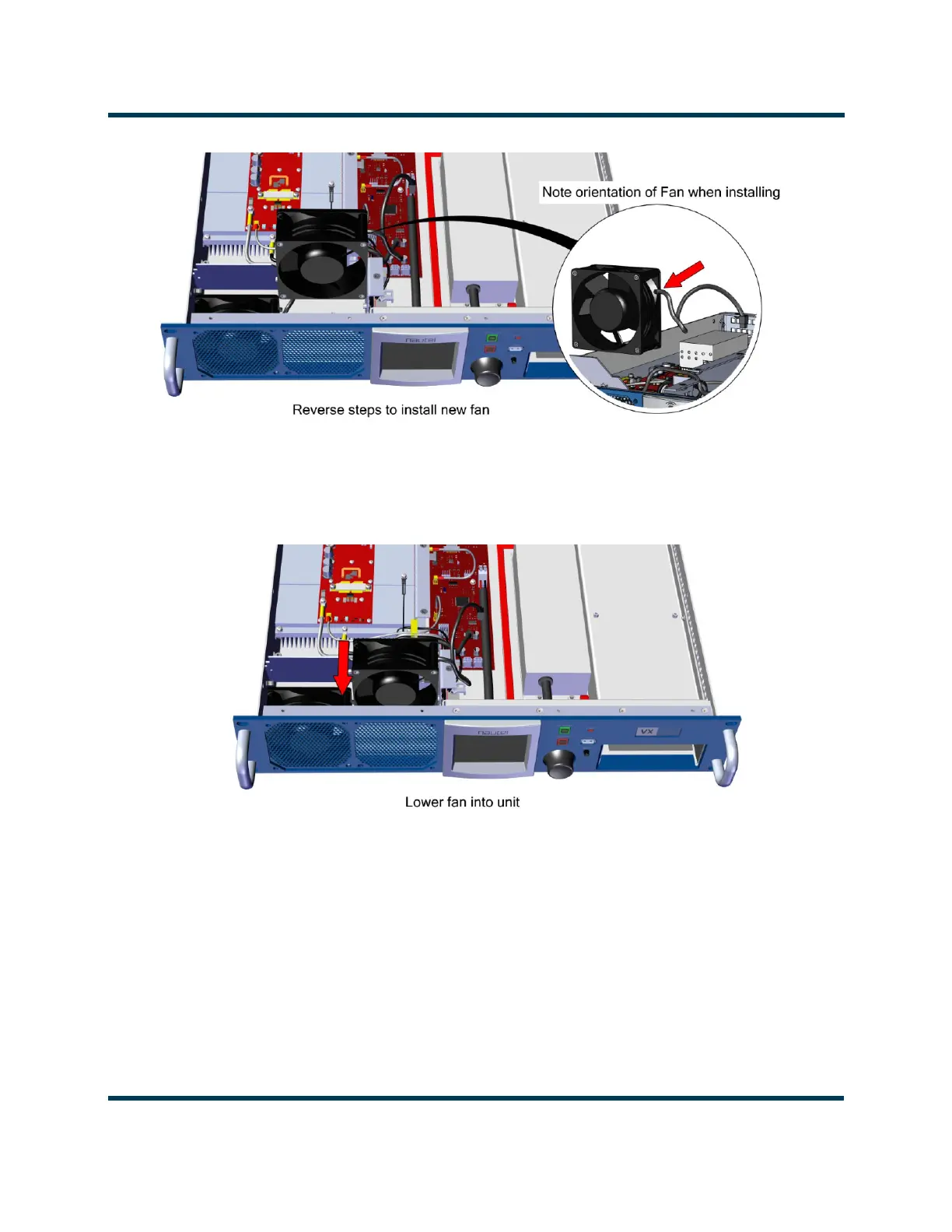

Figure 3.1.22: Fan Orientation
16. Fold back the Air Deflector and install the fan in the transmitter by sliding the fan under the Air
Deflector. See Figure 3.1.23.
Figure 3.1.23: Fan Installation (Fan B2 shown for reference)
17. Complete the Installation of the fan(s) by reversing Step 5 to Step 12. Use cable ties (Nautel part #
HT77, found in the ancillary kit) to secure the wiring harness. Torque all M3 hardware to 6 in-lbs
(0.68 N-m). Return the transmitter to operation.
