Nautilus® Commerical Series Elliptical Service Manual
E916 Elliptical Main Power Wiring Diagram

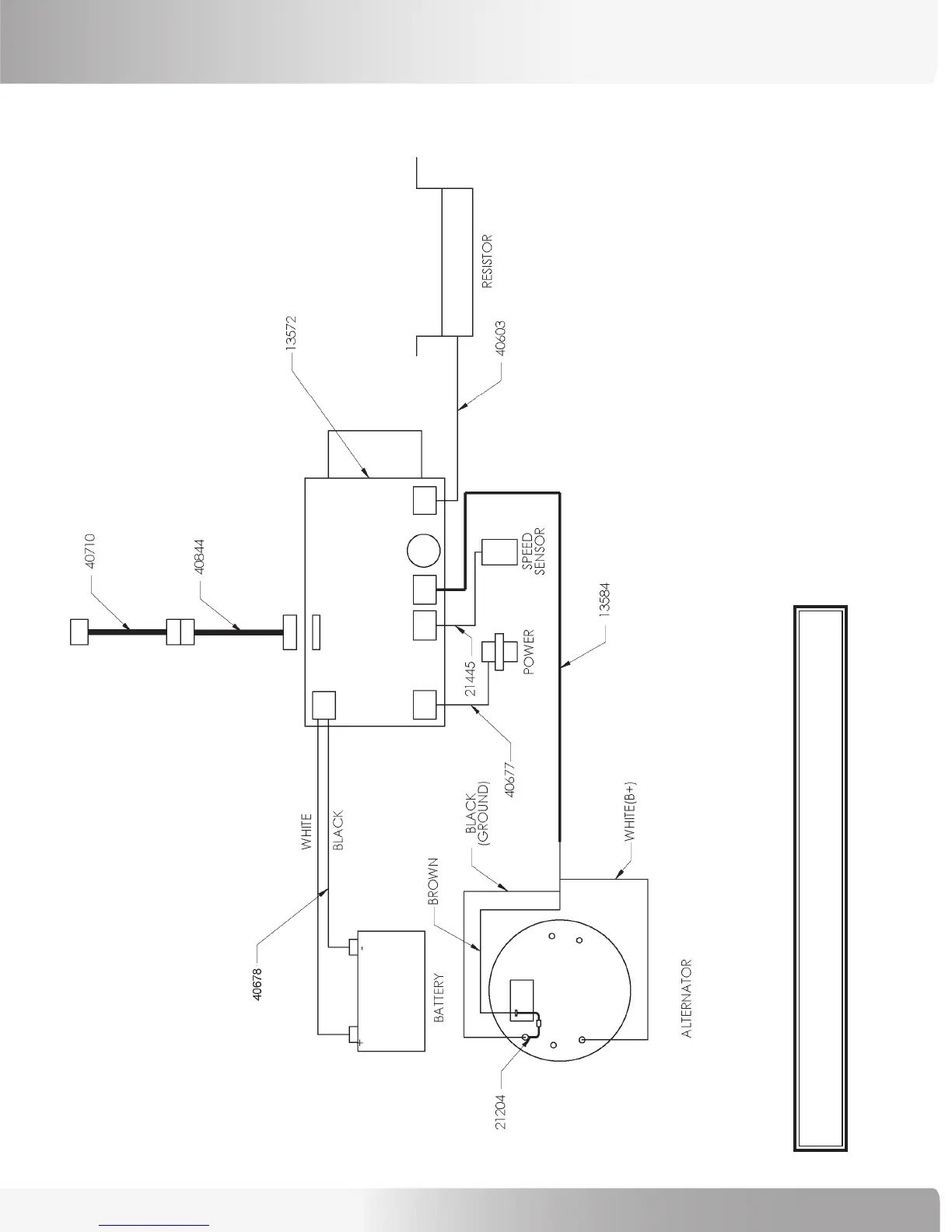

Main Power Wiring Diagram
Notes:
Place field diode assembly (21204) between field and ground
terminals on the alternator (22661).
