Nautilus® Commerical Series Elliptical Service Manual
Cable Connections - E916
Cable Connections - E916
The main cable connection for the E916 elliptical is shown below. Wiring diagrams for the E916 console, handles and
main power are provided in Section 2.

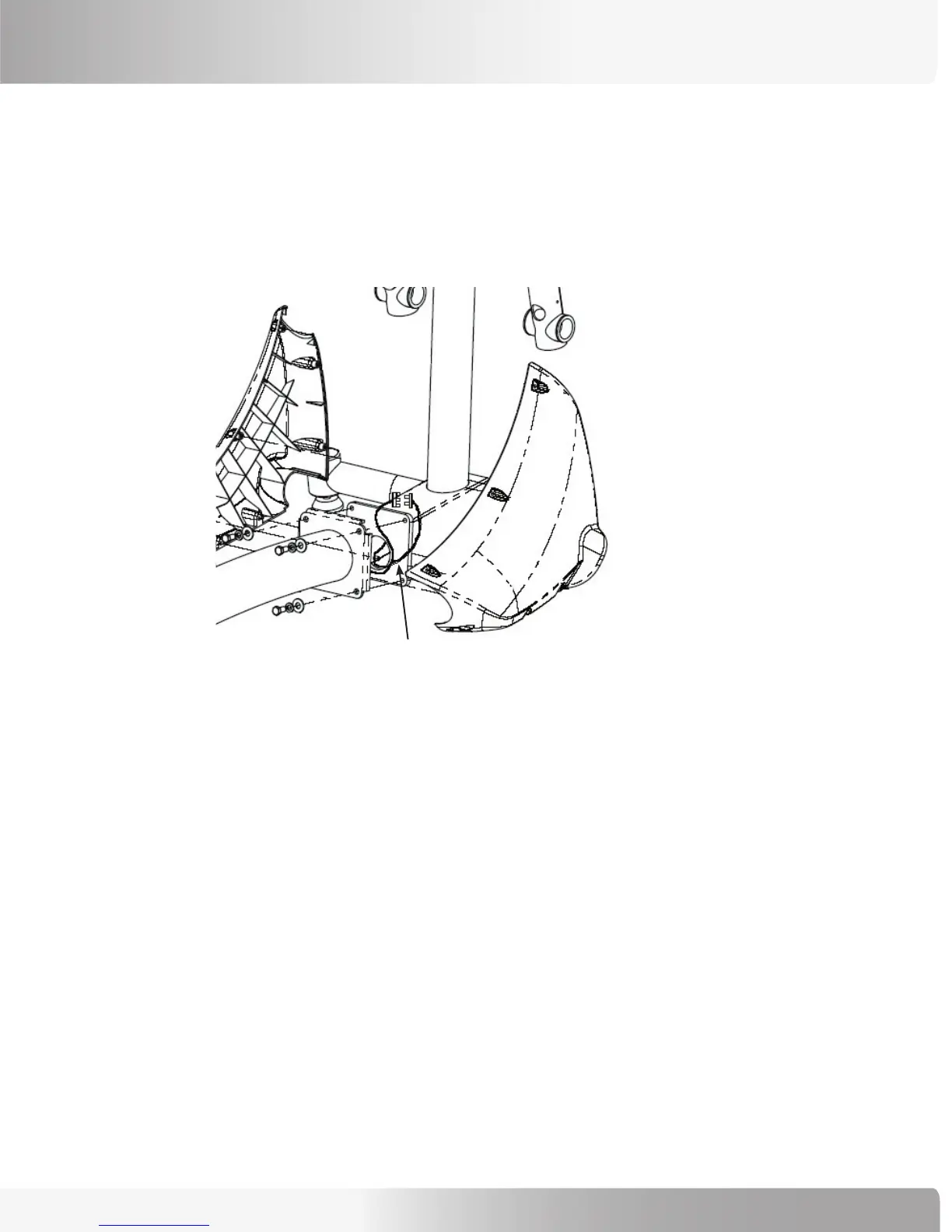

Front Mast to Main Frame Connection:
CONNECT CABLE (40710) FROM FRONT MAST TO CABLE (40844)
FROM MAIN FRAME CENTER TUBE BEFORE SECURING FLANGES
TOGETHER. THE COLOR-CODED CABLES SNAP TOGETHER WITH
THE M/F CONNECTORS FOR THE CORRESPONDING CABLE COLORS.
NOTE: TAKE CARE NOT TO PINCH CABLES WHEN ASSEMBLING.
