Nautilus® Commerical Series Elliptical Service Manual
Assembly Drawings - EV916
Assembly Drawings Overview - EV916
Some drawings include specific notes, represented by . Refer to these notes when replacing parts because they
mention critical torque specs and other important servicing information.
Refer to the Parts List in the preceding pages to locate information on the part numbers that are called out in the assembly
drawings.

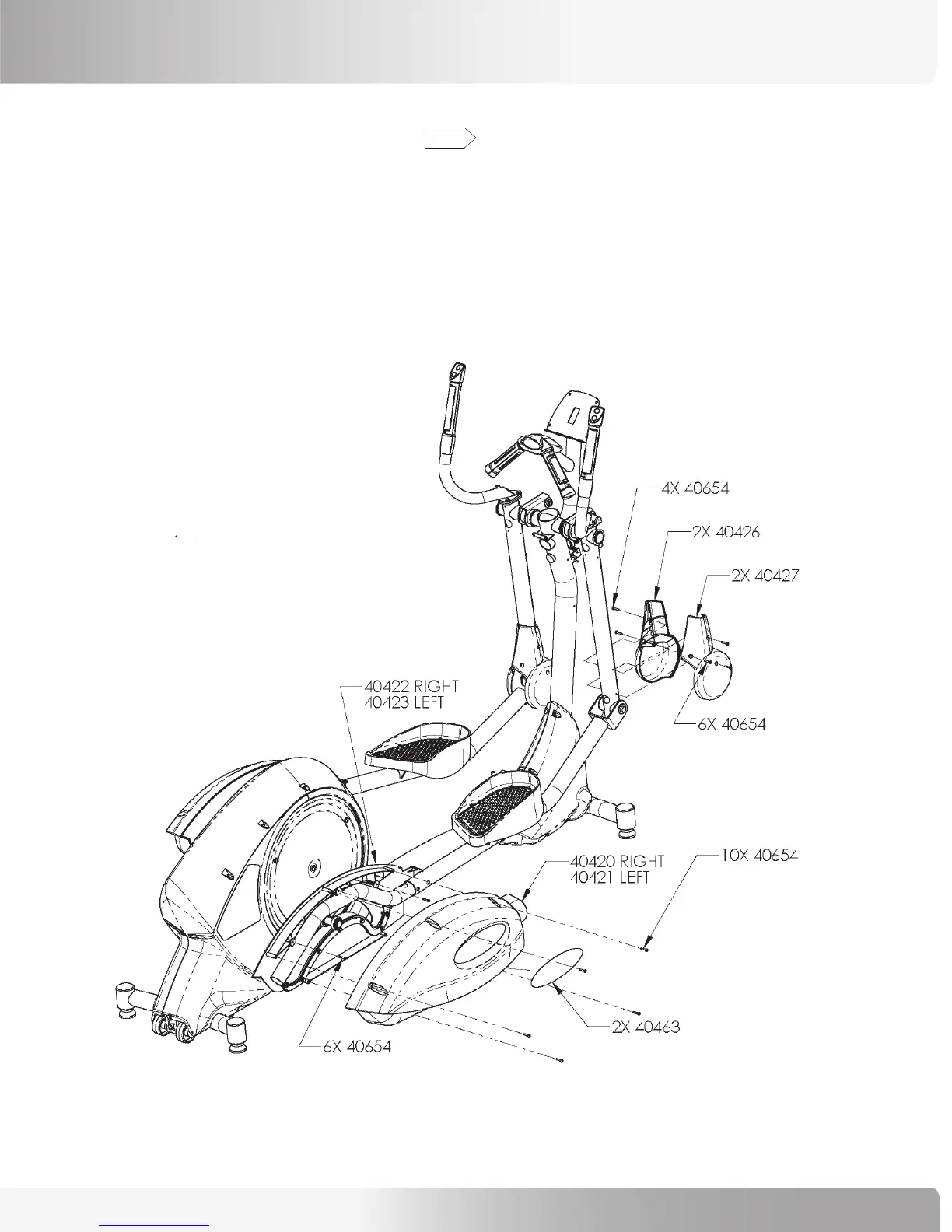

Cam Covers (Pods) and Front Knuckle Covers:
