Nautilus® Commerical Series Elliptical Service Manual
SRVC#
WRNTY-
CODE
PART NO./ LEVEL DESCRIPTION
1 2 3 4
SM40671
1
40671 SCREW,10-32X.50,PAN HEAD,SS,BL
SM40676
1
40676 CABLE ASSY,INLINE TO PWR PCBA
SM40677
1
40677 ASSY,MAIN POWER,ELLIPTICAL
SM40678
1
40678 CABLE,ASSY,BATTERY,ELLIPTICAL
SM40679
1
40679 CABLE,ASSY,T-BAR GRIP TO CONSOLE
SM40680
1
40680 ASSY,CABLE,ELLIPTICAL SWINGARM
SM40681
1
40681 ASSY, CABLE, C41 CHR BREAKOUT
SM40710
1
40710 CABLE ASSY,CONSOLE TO INLINE
SM40801
1
40801 ASSY, CONSOLE, C51, LCD

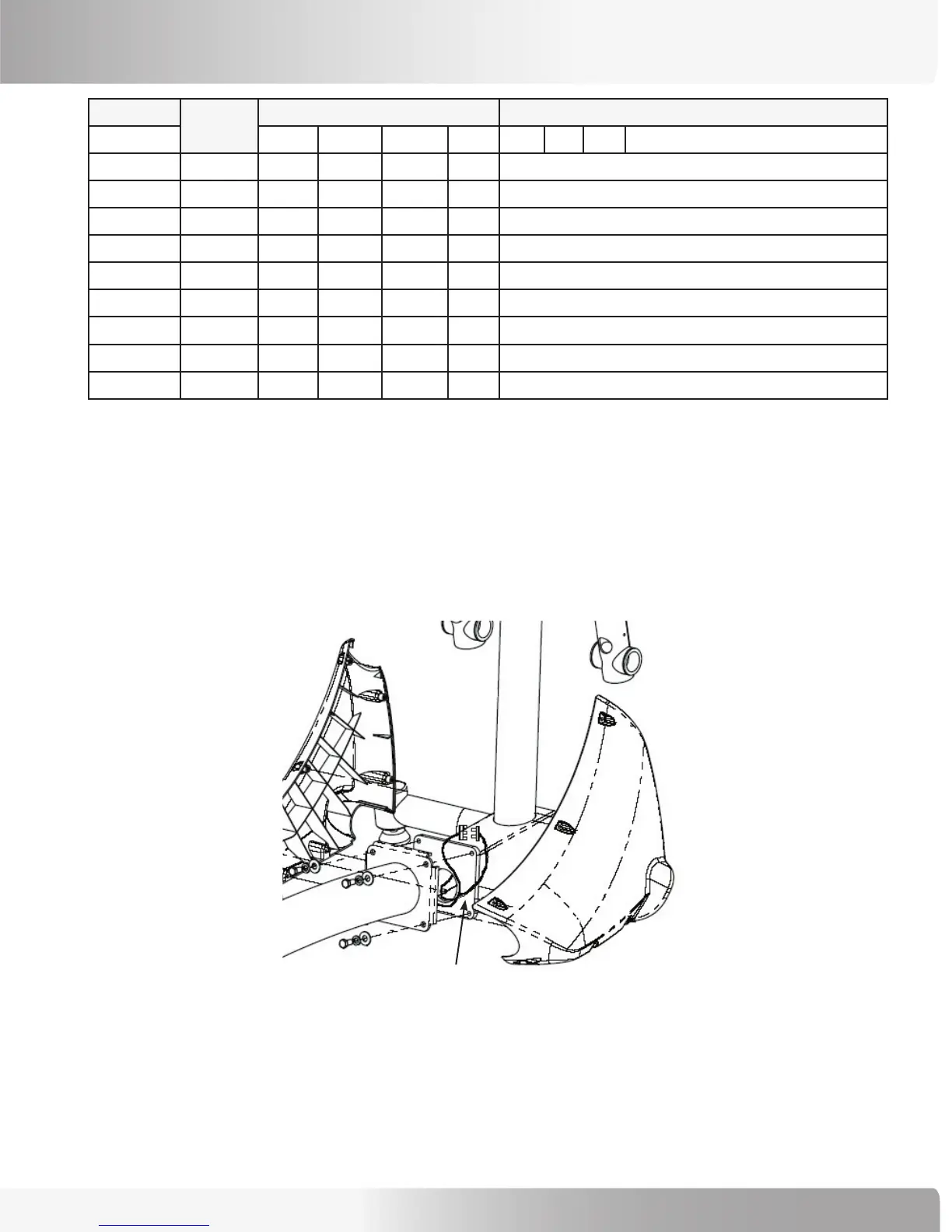

Cable Connections - EV916
Cable Connections - EV916
Two of the main cable connections for the EV916 elliptical are shown below. Wiring diagrams for the EV916 console,
handles and main power are provided in Section 2.
Front Mast to Main Frame Connection:
CONNECT CABLE (PN 40471) FROM FRONT MAST TO CABLE (PN
40844) FROM MAIN FRAME CENTER TUBE BEFORE SECURING
FLANGES TOGETHER. THE COLOR-CODED CABLES SNAP TOGETHER
WITH THE M/F CONNECTORS FOR THE CORRESPSONDING CABLE
COLORS.
NOTE: TAKE CARE NOT TO PINCH CABLES WHEN ASSEMBLING.
CABLES
