Hardware Installation 2-29
Connecting ACPower
The CX7 receives power from an external 24V power brick.
Caution: The CX7 requires the NCR 24V power supply that is shipped with the
terminal. Use of other power bricks may cause damage to the unit.

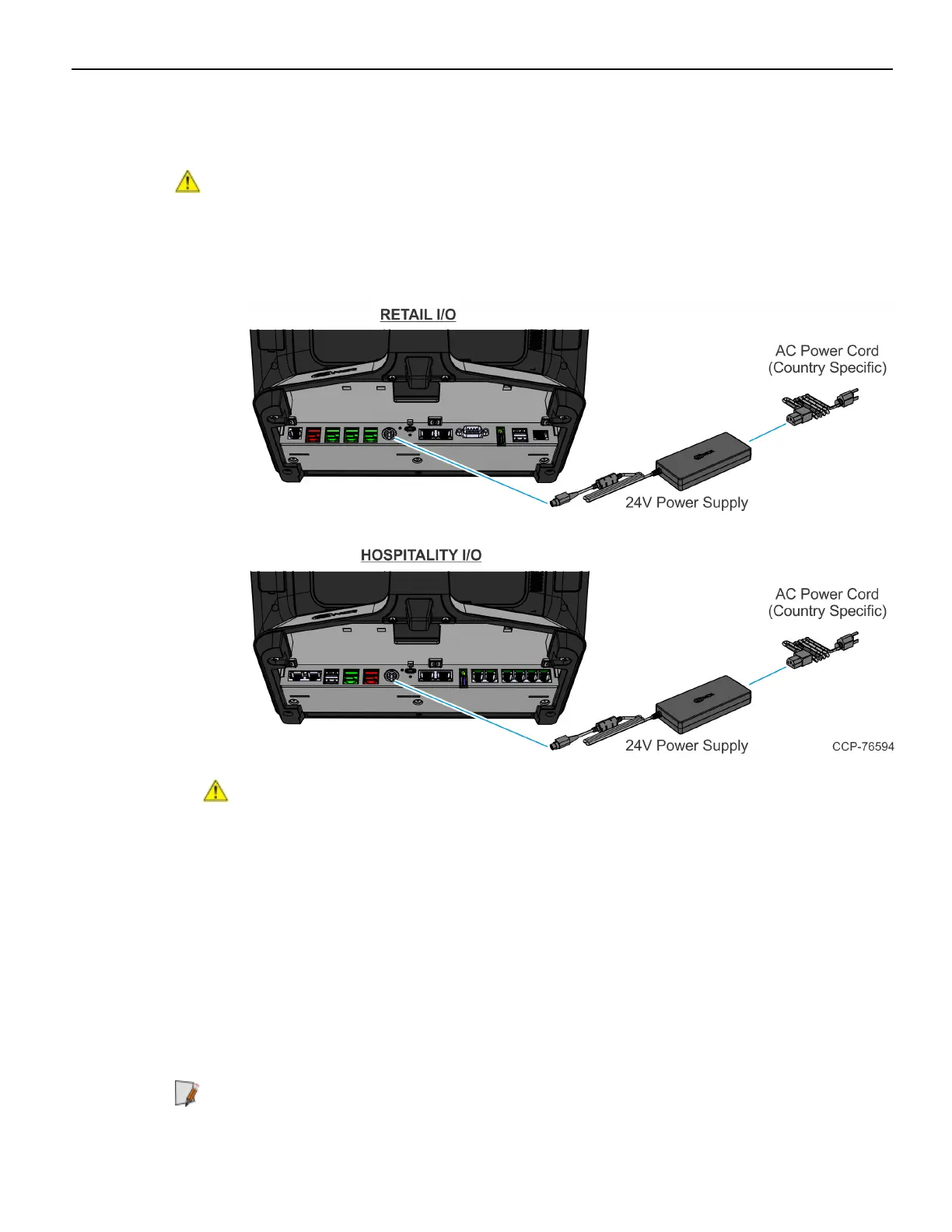

1. Connect the Power Supply cable to the Power In connector on the Base.
2. Connect the AC Power Cord to the Power Supply and to an AC outlet.
Caution: Do not connect or disconnect the Power Cable from the terminal with the
AC Power Cord connected to an AC outlet.
Connecting to a Network
Most business configurations require the terminal to connect to a network. Connecting
to a network enables communicating with other systems and devices also on the
network. Depending on business configurations, connecting to a network may allow
connection to the Internet.
To connect the CX7 terminal to a network, connect the 10/100/1000 Ethernet cable to the
port labeled LAN In on the I/Opanel of the Base. The other end of the 10/100/1000
Ethernet cable should be connected into the network hub.
Note: Consult with your business Information Technology (IT) representative to
determine the available connection, and to locate the network hub.
