3-37 Operation and Cleaning
Magnetic Stripe Reader
The Magnetic Stripe Reader (MSR) for the CX7 is an ISO 3-Track (Encrypted).
The card reading is bi-directional and can be mounted on Port A(right side) of the
display.

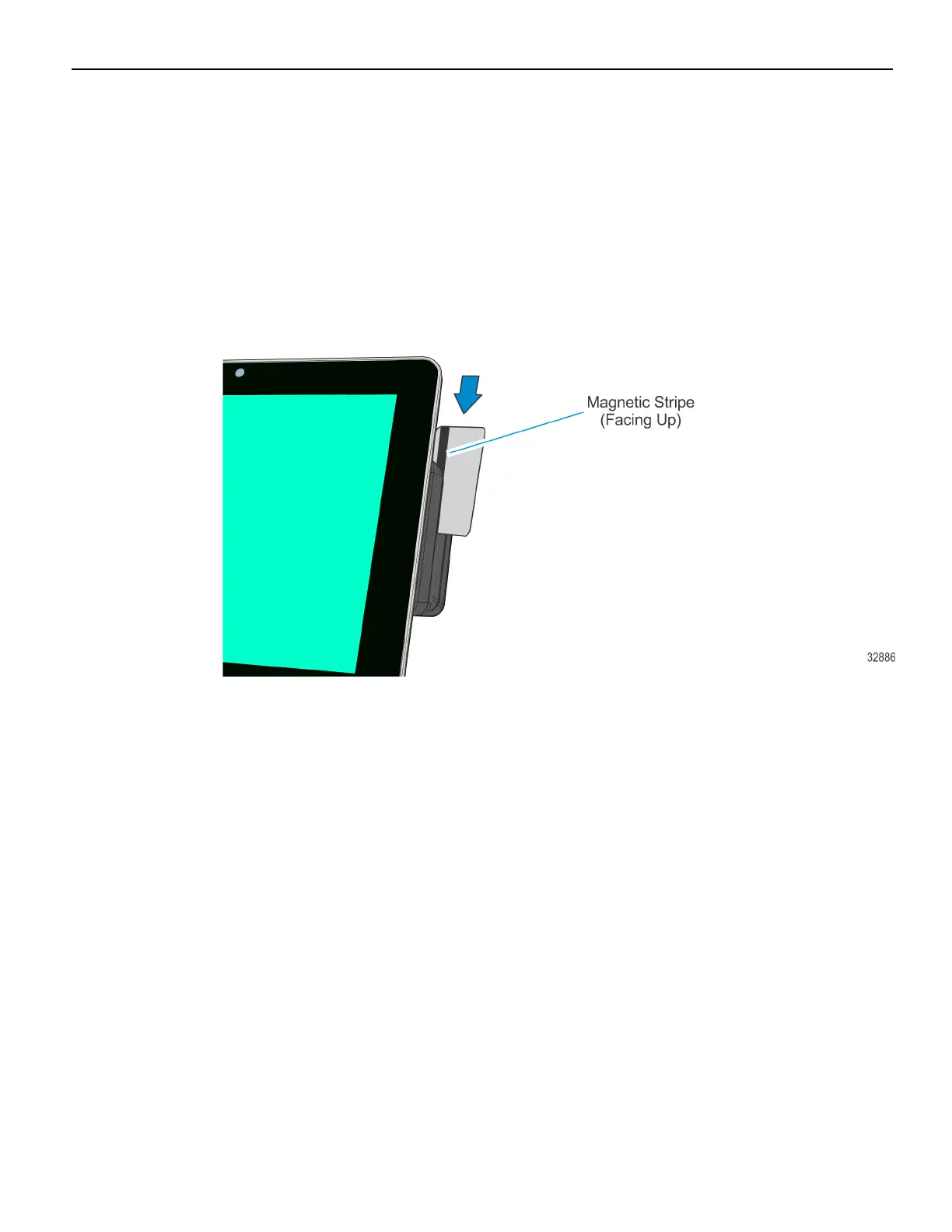

Using the MSR
Swipe the card through the slot in the MSR in a quick and steady movement. The
magnetic stripe must be facing up and with the stripe in the slot.
Care of Cards
• Cards should never come in contact with liquids.
• Cards should never be bent or folded in any way.
• Cards should never come in close proximity of a magnetic field.
Card Thickness
The MSR module accepts standard cards within the thickness range of 0.68–0.84 mm.
