Installing the Second Cash Drawer
A second Cash Drawer can be installed on terminals with a:
• Retail I/O Base — For more information, refer to Second Cash Drawer for Retail I/O
below.
• Hospitality I/O Base — For more information, refer to Second Cash Drawer for
Hospitality I/O on the next page.
Second Cash Drawer for Retail I/O

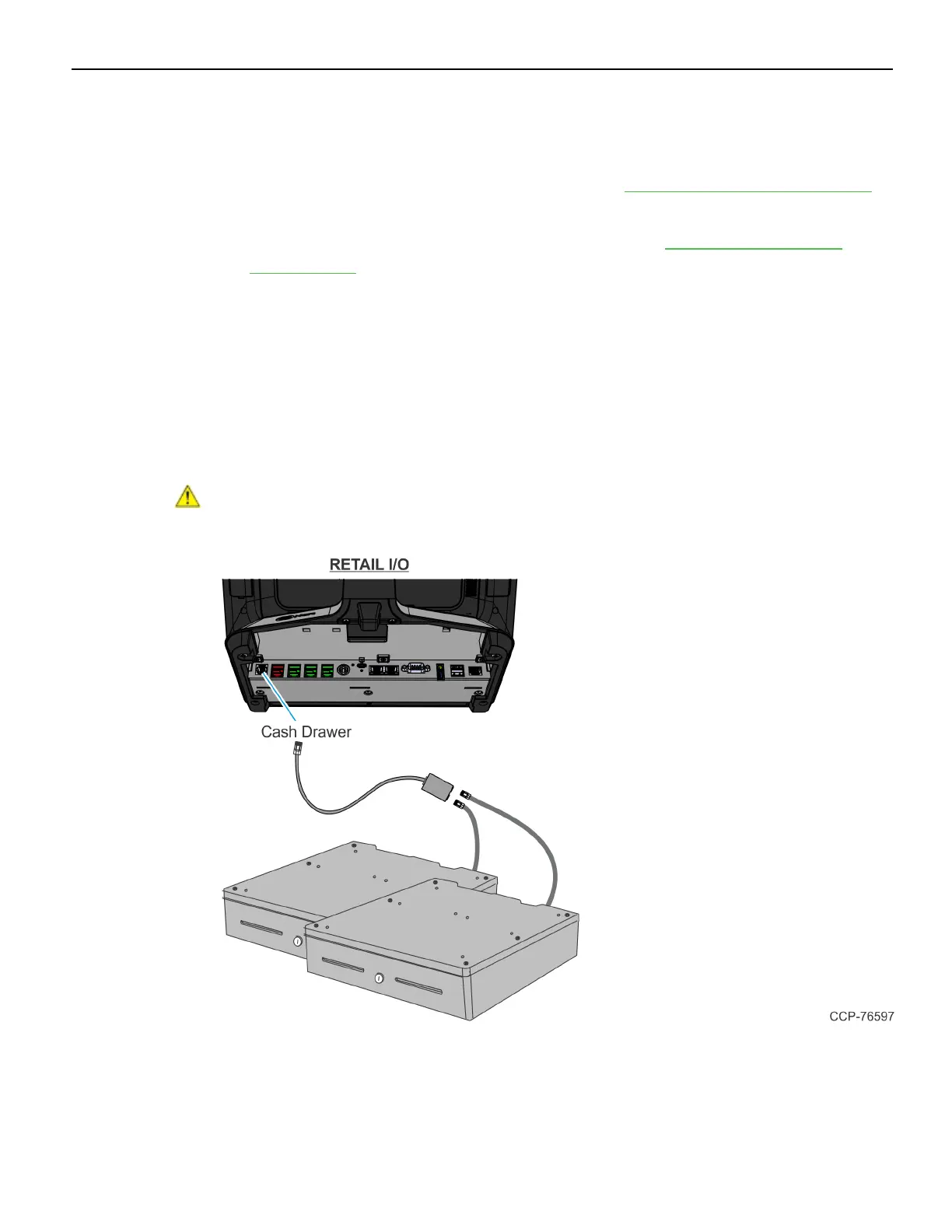

The Retail I/O supports a 2-drawer configuration with a Dual Cash Drawer Cable.
Connect this cable to the Base or transaction printer cash drawer connector.
There are two versions of the Dual Cash Drawer Cable for the Retail I/O:
• 1432-C516-0009 (24V)
• 1432-C517-0009 (12V)
Caution: The two cables look very similar. Make sure to use the correct one.
Connecting the wrong cable can cause system damage.
