2-20 Hardware Installation

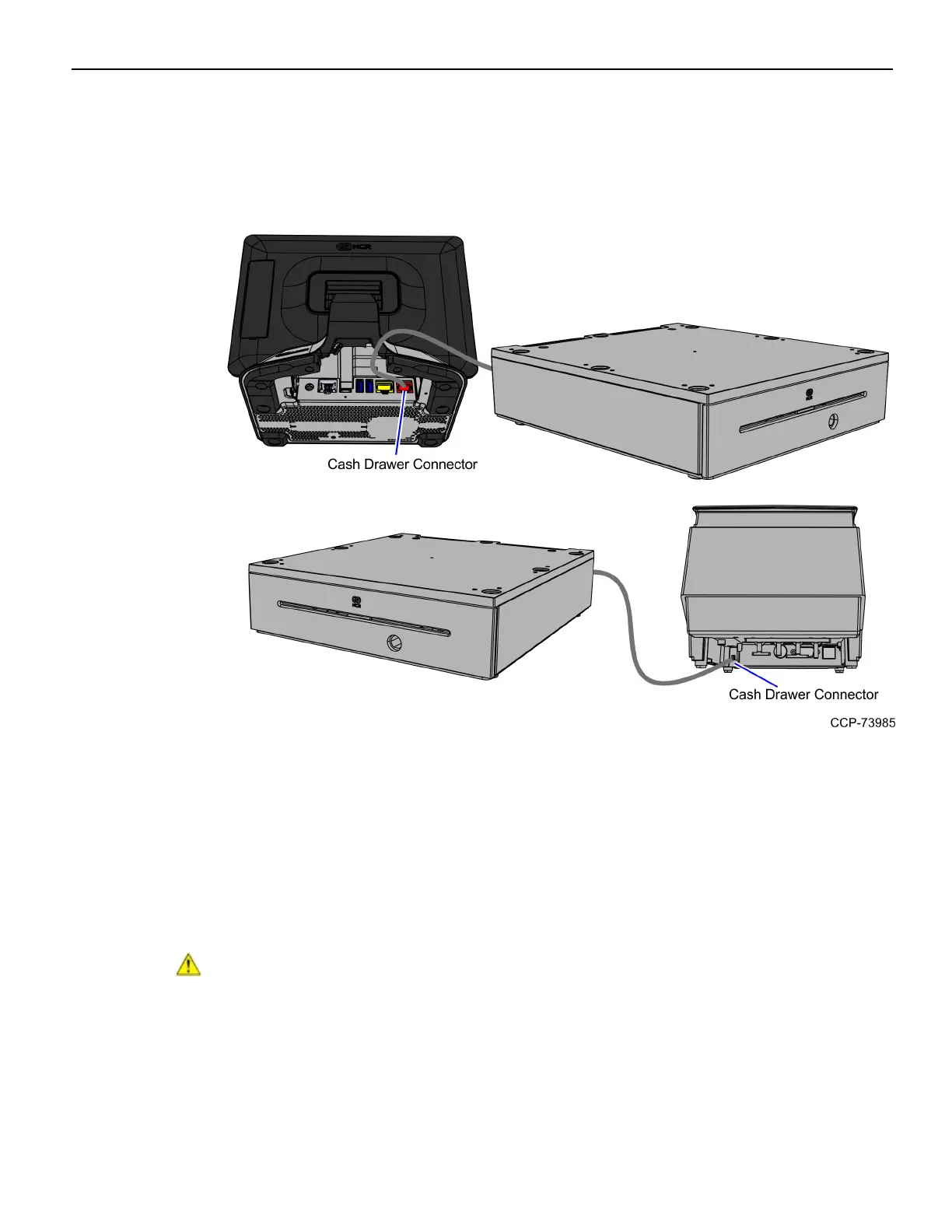

Installing the Cash Drawer
The Cash Drawer can be connected to the PX10/PX15 terminal or to the transaction
printer.
Second Cash Drawer Cable Connection
The terminal supports a two-drawer configuration with a Dual Cash Drawer Cable.
Connect this cable to the terminal or transaction printer cash drawer connector.
There are two versions of the Dual Cash Drawer Cable:
•1432-C516-0009 (24V) — for dual 24V cash drawers
•1432-C517-0009 (12V) — for single or dual 12V legacy cash drawers
Caution: The two cables look very similar. Make sure you use the correct one.
Connecting the wrong cable can cause system damage.
