Hardware Installation 2-31

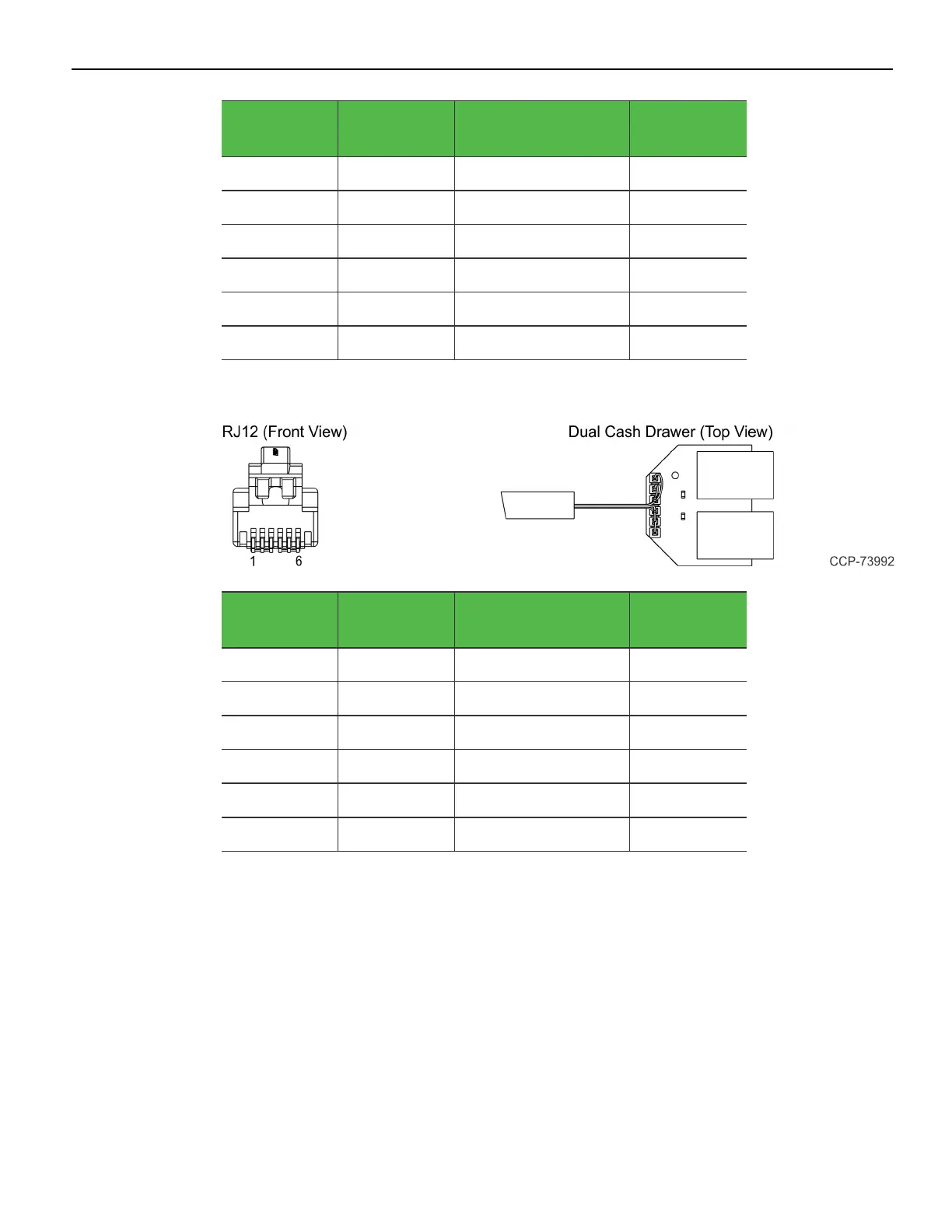

RJ12 Pin Color Signal Name

Dual Cash

Drawer

1 Blue Frame GND 1

2 Yellow Kick-out Signal 2

3 Green Open/Close Status 3

4 Red +24V 4

5 Black Kick-out Signal 2 5

6 White SignalGND 6

12VCash Drawer Cable Splitter (1432-C517-0009)

RJ12 Pin Color Signal Name

Dual Cash

Drawer

1 Blue N/C 1

2 Yellow CD Kick-out SignalA 2

3 Green CD Open Con 3

4 Red N/C 4

5 Black CD Kick-out Signal B 5

6 White SignalGND 6

SIMCard Reader

The 7746 Motherboard provides one smart card reader for full size SIM using Microchip

SEC1110 Smart Card Bridge to USB. The Smart Card Bridge to USB is connected to the

one of the downstream port of the USB 2.0 Hub 4-Port internally. SIM slot is located at

the bottom side of the unit with a label and insert arrow “SIM”.

NCR PX10 User Manual
