3.
Lead the Line cord through the applicable grooves.

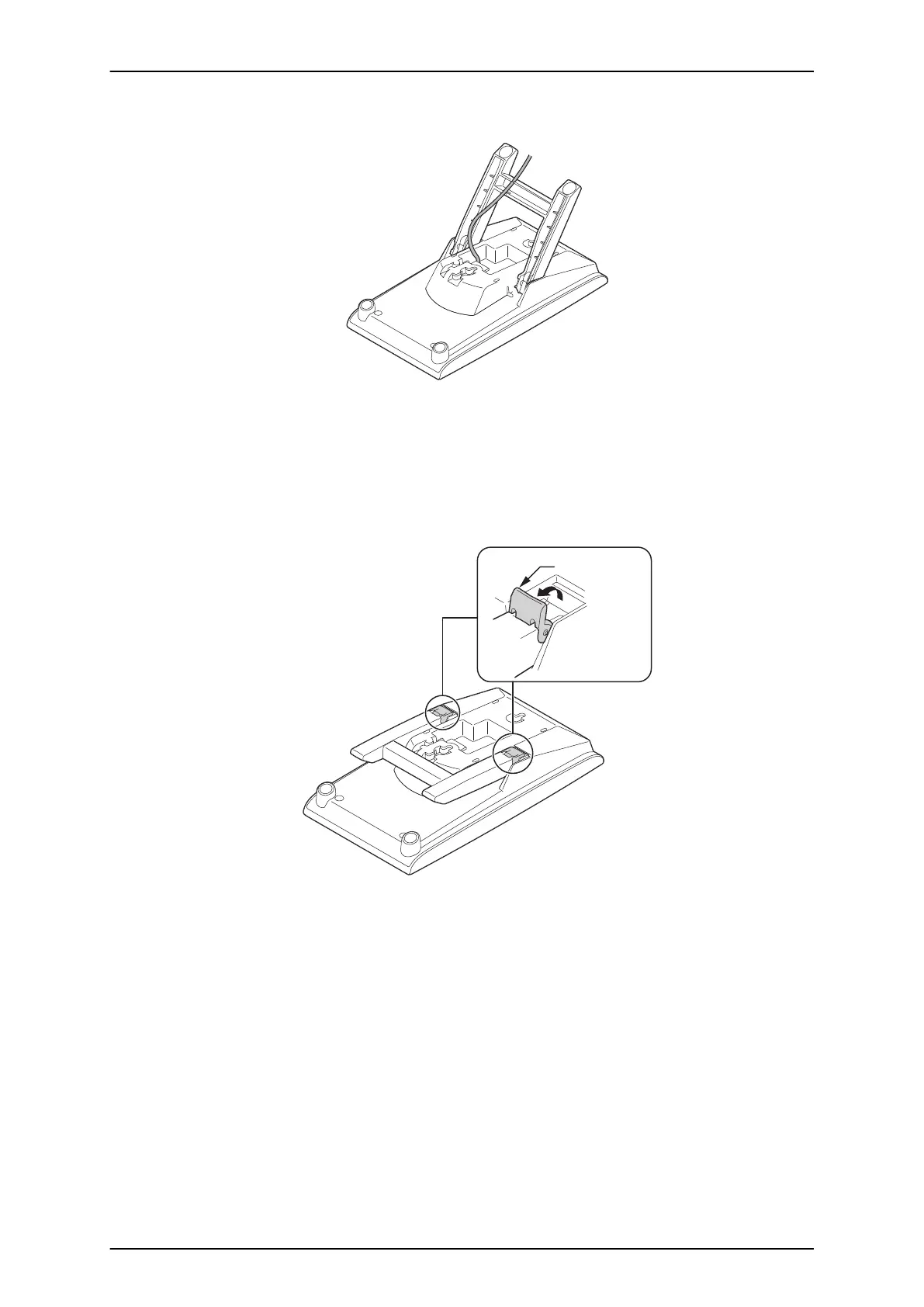

Figure 2-109 Cabling of DSS
5.3.1.2 High position setting
1.
Turn DSS Console over (button side down).
2.
Pull up the Leg Stoppers.
Leg Stopper
Figure 2-110 Leg Stopper of DSS Console
SL1100
ISSUE 4.1 (R5.1)
2-74
Installation
99
101
