• Use cable protectors in case the cables run on the floor.
• Aerial distribution wiring is not allowed.
• Trunks must be installed with lightning protectors.
• Only SL1100 terminals (12TXH, 24TXH) may be connected to a SL1100 digital port. Do not connect
any other terminal as damage may result.
3.4.1 Cabling IP4WW-080E-B1
This IP4WW-080E-B1 PCB provides two RJ-61 connections for digital extensions.
Before plugging in the Multiline Telephone, DSS Console, Single line
Telephone or Doorphone, ensure Main KSU is powered off.
Only SL1100 terminals (12TXH, 24TXH) may be connected to a SL1100
digital port. Do not connect any other terminal as damage may result.
Exit Help
Flash
Clear/Back
ABC
GHI JKL MNO
PQRS TUV WXYZ
DEF
Hold
Speaker
1
23
4
56
7
89
0
㸡
Mute
DND
Transfer
Modular Cable
(2-wire, Straight)
J102 J101
ESI 5-8 ESI 1-4
TRTR
Multiline Telephone DSS Console
T: Tip
R: Ring
5
Port 1 Port 2 Port 3 Port 4
43 6 2 71 8

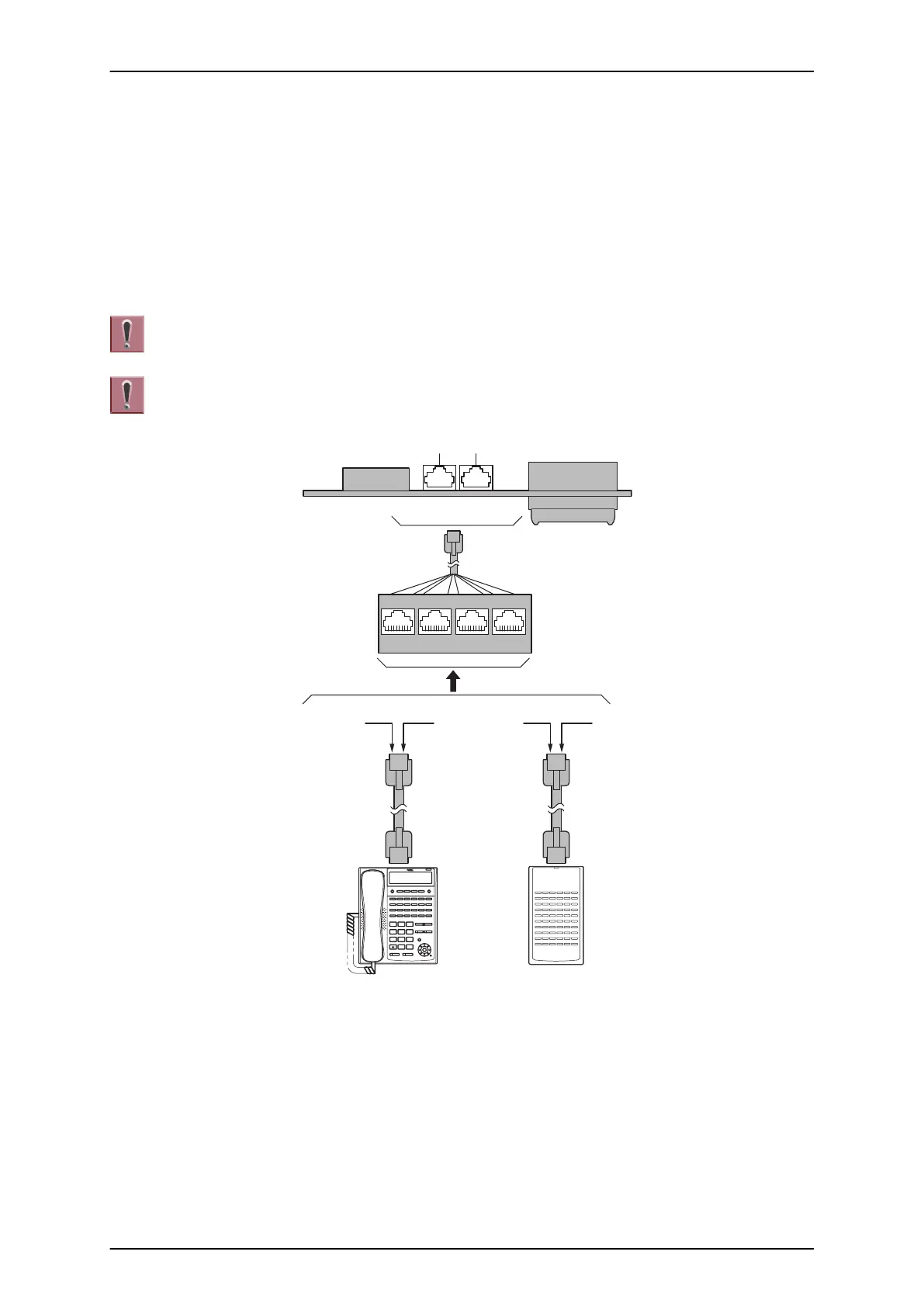

Figure 2-68 Connectors of 080E-B1
3.4.1.1 Connectors
The following table shows the pin-outs for the RJ-61 cable connector for Digital extension connections.
ISSUE 4.1 (R5.1)
SL1100
Hardware Manual 2-45
