NEC DP-D-1D - Figure 2-91 Removing the CPU Card; Figure 2-92 Installing the PZ-VM21 PCB

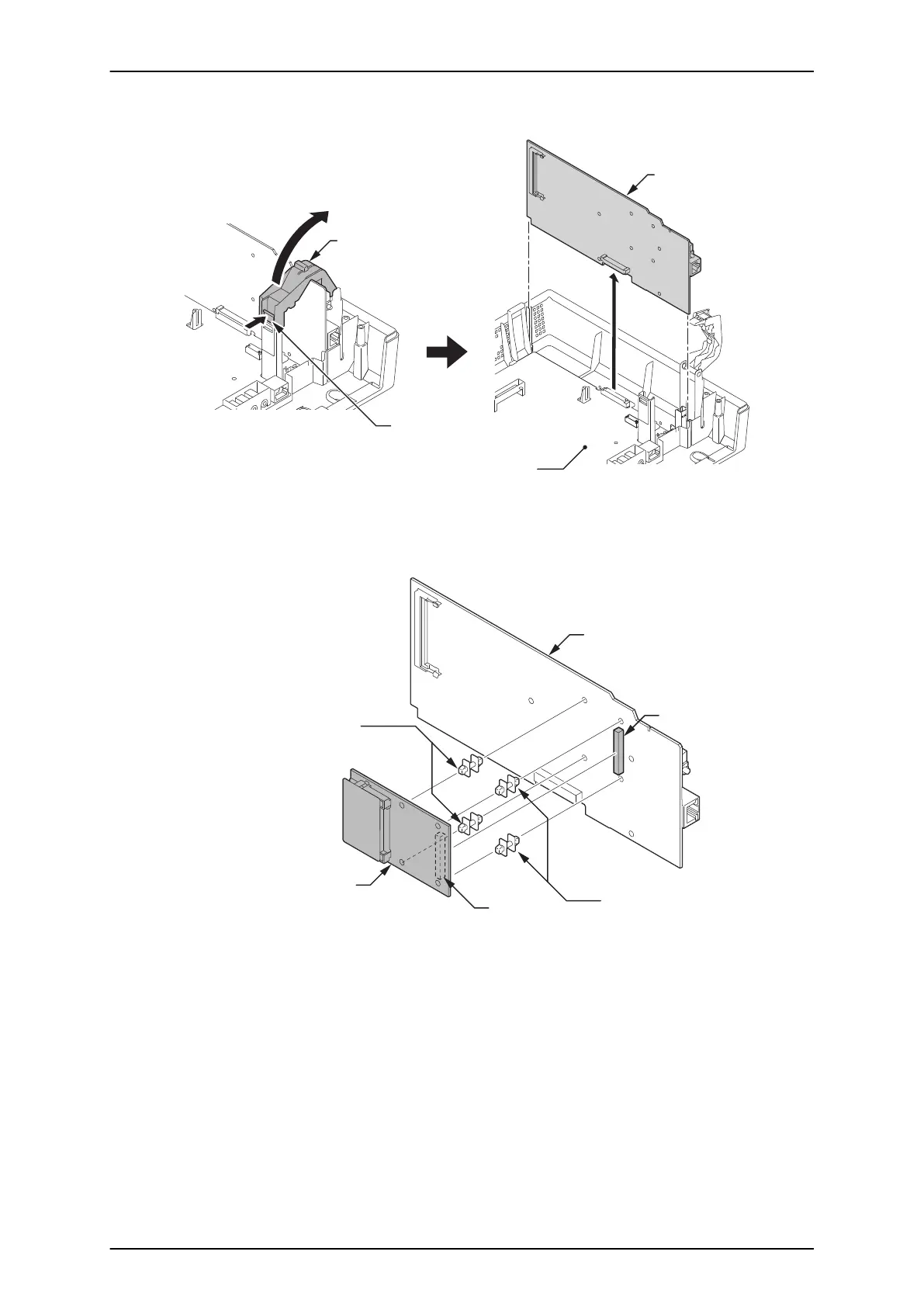

4. Press tab A and lift the CPU support bracket. Remove the CPU card.
CPU support
CPU card
084M-B1 at 1228M KSU
A
Figure 2-91 Removing the CPU Card
5. Connect the PZ-VM21 daughter board to the J6 connector using four Nylon-spacers on the CPU
card.
CPU card
J6
PZ-VM21 PCB
CN1
Nylon-spacers
Nylon-spacers
Figure 2-92 Installing the PZ-VM21 PCB
SL1100
ISSUE 4.1 (R5.1)
2-64 Installation
