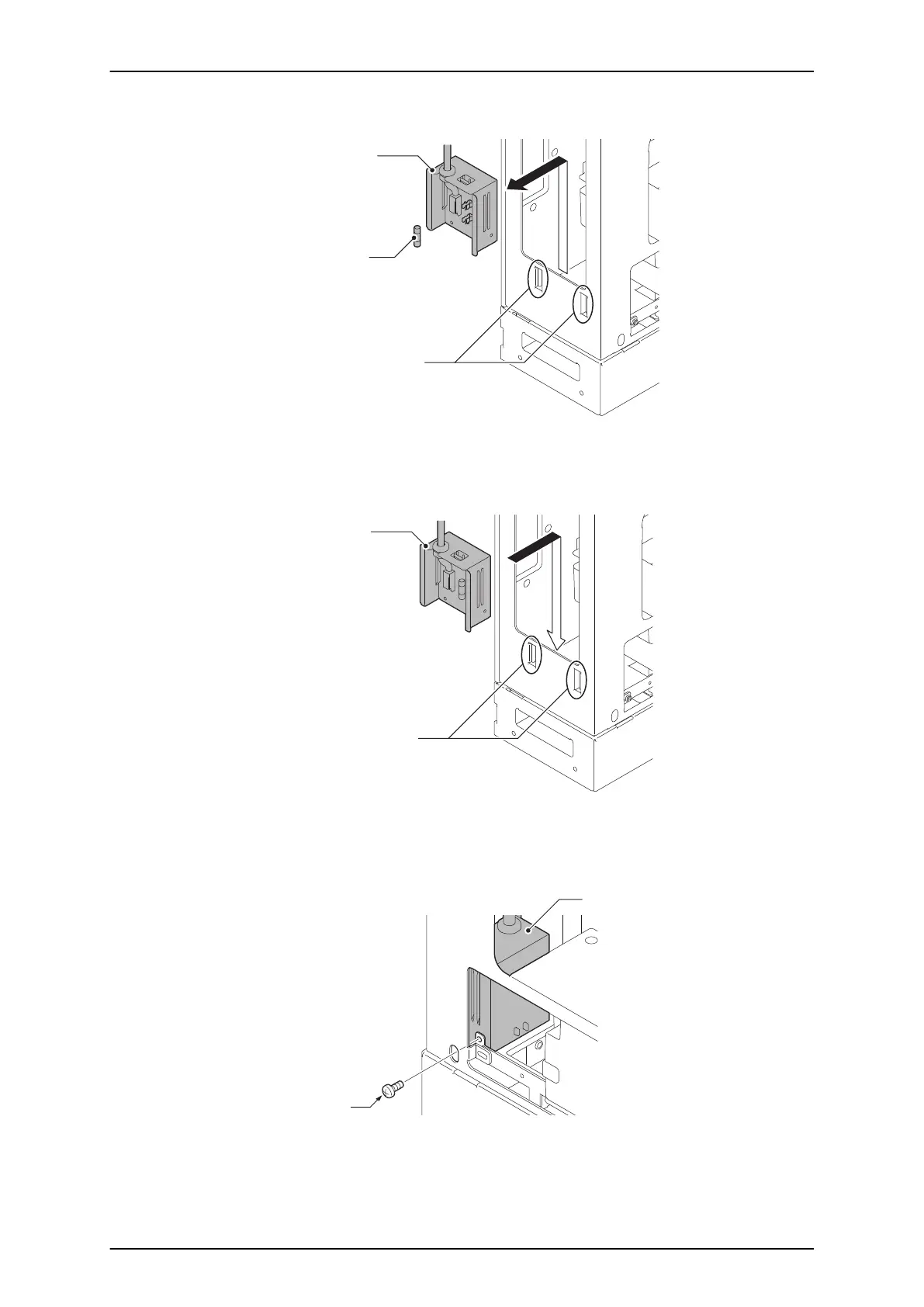

6.
Replace the fuse (250VT8AL).
250VT8AL
Fuse
Fuse Unit guide
Fuse Unit
Figure 2-48 Replacing the Fuse
7.
Using the Fuse Unit guides, slide the Fuse Unit into the Battery Box.
Fuse Unit guide
Fuse Unit
Figure 2-49 Install the Fuse Unit
8.
Secure the Fuse Unit by tightening the screw.
Screw
Fuse Unit
Figure 2-50 Securing the Fuse Unit
ISSUE 4.1 (R5.1)
SL1100
Hardware Manual
2-33
