2.

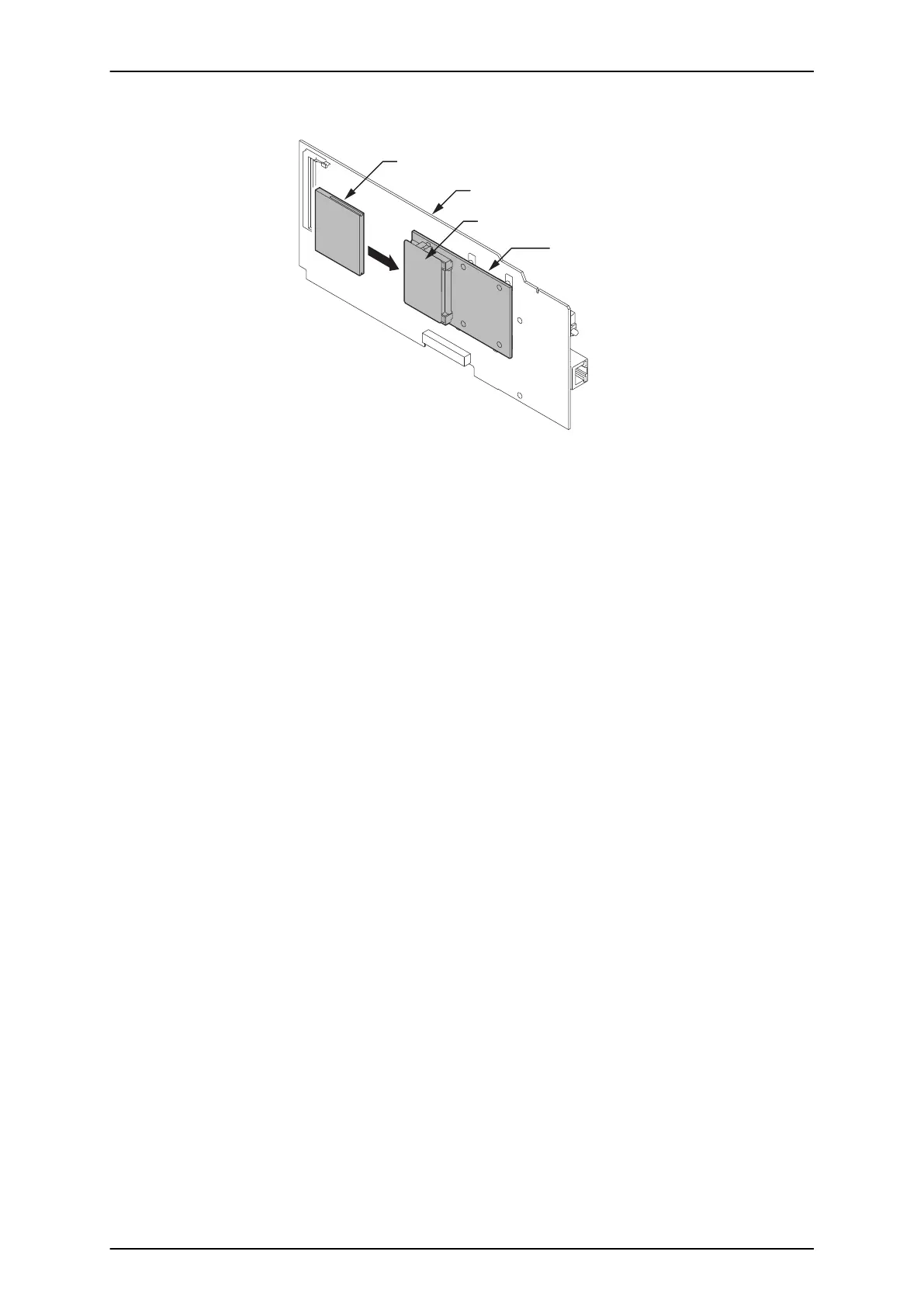

Remove the CPU card and insert the compact flash card into the CF slot (CN2).
CF card
CF Slot (CN2)
CPU card
PZ-VM21 PCB
Figure 2-95 Installing the CF Card
3.
Reinstall the CPU card into the 084M-B1 mother board, and close the CPU Support making sure
tab A locks into place.
SL1100
ISSUE 4.1 (R5.1)
2-66
Installation
91
93
Table of Contents
Default Chapter
3
Table of Contents
3
Regulatory
13
Chapter 1 Introduction
17
Section 1 GENERAL INFORMATION
17
Figure 1-1 System Configuration
17
Section 2 EQUIPMENT LIST
18
KSU and Optional Unit
19
IP4WW-Battery Box
19
Ip4[ ]-1228M-B Ksu
19
Trunk/Extension/Isdn Expansion Interface Cards
20
Ip4Ww-000E-B1
20
Ip4Ww-080E-B1
20
Ip4Ww-4Coidb-B1
20
Ip4[ ]-008E-B1
20
Ip4Ww-1Priu-C1
21
Ip4Ww-2Bridb-C1
21
Optional Interface Cards
21
Ip4Ww-Voipdb-C1
21
Ip4[ ]-Memdb-C1
21
Table 1-1 Memory Capacity of MEMDB-C1
21
Ip4Ww-Cfvms-C1
22
Pz-Vm21
22
Multiline Telephones and Optional Equipment
22
Ip4Ww-12Txh-B Tel
22
Ip4Ww-24Txh-B Tel
22
Dp-D-1D
23
Ip4Ww-60D Dss-B
23
Ip4[ ]-24Tixh-C Tel
23
Section 3 SYSTEM CAPACITY
24
System Capacity
24
Table 1-2 System Capacity
24
KSU Capacity
25
Expandability of Trunk and Extension (Without PRI)
25
Figure 1-2 System Image
25
Figure 1-3 Maximum KSU Capacity - Expandability of Trunk and Extension (Without PRI)
25
Expandability of Trunk and Extension (with PRI)
26
Figure 1-4 Maximum KSU Capacity - Expandability of Trunk and Extension
26
Chapter 2 Installation
27
Section 1 INSTALLING the MAIN KSU
27
Before Installing the KSU
27
Environmental Requirements
27
General Precautions
27
Preparations
27
Site Requirements
27
Unpacking
28
Installing the Main KSU (1228M-B KSU)
28
Table 2-1 KSU Packing List
28
Table 2-2 Items on the CPU Card
28
Figure 2-1 CPU Card Location
28
Wall-Mounting the KSU
29
Figure 2-2 Dimension of the Main KSU
29
KSU Dimensions
29
Wall Installation of KSU
29
Figure 2-3 Wall Mount of KSU
30
Figure 2-4 Wall-Mounting Template
30
Mounting Procedure of KSU
30
Figure 2-5 Screw Positions
31
Figure 2-6 Sub-Cover Slide-Out
31
Figure 2-7 Removing the Sub-Cover
32
Figure 2-8 Sub-Cover Open Position
32
Figure 2-9 Mounting the KSU
32
Grounding and AC Cabling
33
AC Power Requirement
33
Figure 2-10 ETH Lug
33
Grounding the KSU
33
Table 2-3 Power Requirement
33
AC Power Cord
34
Trunk/Extension Cabling
34
Figure 2-11 AC Power Cord
34
General
34
Extension Cabling
35
Precautions for Cabling
35
Trunk Cabling
35
Figure 2-12 Digital Extension Cabling
36
Figure 2-13 Analog Extension Cabling
37
Cable Routing and Clamping
38
Figure 2-14 Cabling
38
Table 2-4 RJ61 Cable Connector Pin-Outs (J101-J103)
38
Figure 2-15 Sub-Cover
39
Section 2 INSTALLING the EXTERNAL BACKUP BATTERY
40
General
40
Unpacking
40
Table 2-5 IP4WW-Battery Box Packing List
40
Battery Box Dimensions
41
Battery Specifications
41
Battery Installation
41
Table 2-6 Battery Specifications
41
Figure 2-16 Dimension of the IP4WW-Battery Box
41
Figure 2-17 Removing the Front Cover
42
Figure 2-18 Disconnect Battery Connection Cable
42
Figure 2-19 Batt Stopper
43
Figure 2-20 Pulling out the Battery Tray
43
Figure 2-21 Remove the Battery Tray Bracket
44
Figure 2-22 Battery Installation
44
Figure 2-23 Connecting the Battery Cables
45
Figure 2-24 Installation of Battery Tray Cover
45
Figure 2-25 Inserting the Battery Tray
46
Figure 2-26 Secure Batt Stopper Bracket
46
Mounting the IP4WW-Battery Box
47
Figure 2-27 Connecting the Battery Connection Cable
47
Figure 2-28 Installation of Front Cover
47
Floor-Mounting the IP4WW-Battery Box
47
Figure 2-29 Bases and Support of the Battery Box
48
Figure 2-30 Floor-Mount Spacing Guide
48
Figure 2-31 Mounting the Battery Box
49
Figure 2-32 Securing the Battery Box
49
Wall-Mounting the IP4WW-Battery Box
49
Figure 2-33 Assemble Battery Box Base
50
Figure 2-34 Wall-Mount Spacing Guide
50
Figure 2-35 Removing the Front Cover
52
Figure 2-36 Mounting the Battery Box
52
Figure 2-37 Securing the Battery Box
53
Figure 2-38 Removing the Front Cover
53
Mounting One KSU on the Battery Box
53
Figure 2-39 Removing the L-Bracket
54
Figure 2-40 Securing the L-Bracket and WM Hook
55
Figure 2-41 Attaching the KSU
55
IP4WW-Battery Box to KSU Connection
56
Figure 2-42 KSU Mounting on Battery Box
56
Figure 2-43 Sub-Cover Open and Hold
56
IP4WW-Battery Box Fuse Replacement
57
Figure 2-44 Connecting Battery Cable
57
Figure 2-45 Removing the Front Cover
57
Figure 2-46 Disconnecting the Battery Connection Cable
58
Figure 2-47 Loosen the Fuse Unit Screw
58
Figure 2-48 Replacing the Fuse
59
Figure 2-49 Install the Fuse Unit
59
Figure 2-50 Securing the Fuse Unit
59
Figure 2-51 Connect Battery Connection Cable
60
Figure 2-52 Installation of the Front Cover
60
Cards
61
General
61
Unpacking
61
Table 2-7 Expansion Cards
61
Table 2-8 Expansion Card Packing List
61
Mounting the Expansion Interface Card
62
Figure 2-53 Removing the Sub-Cover
62
Mounting the 080E-B1/008E-B1/000E-B1/1PRIU-C1 Pcbs
62
Figure 2-54 Removing the Main-Cover
63
Figure 2-55 Mounting the 1St Expansion Interface Card
63
Figure 2-56 Mounting the 2Nd Expansion Interface Card
64
Figure 2-57 Mounting Two Expansion Interface Cards
64
Figure 2-58 Plastic Knockouts
65
Figure 2-59 Replacing the Main-Cover
65
Figure 2-60 Plastic Knockouts on 084M-B1/080E-B1/008E-B1/000E-B1
66
Figure 2-61 Installing the 4COIDB-B1
66
Mounting the 4COIDB PCB
66
Figure 2-62 Mounting the 4COIDB-B1 into the KSU
67
Figure 2-63 Replacing the Main-Cover
67
Figure 2-64 Plastic Knockouts on 084M-B1/080E-B1/008E-B1/000E-B1
68
Figure 2-65 Installing the 2BRIDB-C1
68
Mounting the 2BRIDB PCB
68
Cabling and Setting the Expansion Interface Card
70
Figure 2-66 Mounting the 2BRIDB-C1 into the KSU
70
Figure 2-67 Replacing the Main-Cover
70
Cabling IP4WW-080E-B1
71
Figure 2-68 Connectors of 080E-B1
71
Cabling IP4[ ]-008E-B1
72
Figure 2-69 Connectors of 008E-B1
72
Table 2-9 RJ-61 Digital Connector Pin-Outs (J101, J102)
72
Cabling and Setting IP4WW-4COIDB-B1
73
Cabling IP4WW-000E-B1
73
Figure 2-70 Connectors of 4COIDB-B1
73
Table 2-10 RJ-61 Analogue Pin-Outs (J101, J102)
73
Cabling and Setting IP4WW-2BRIDB-C1
74
Figure 2-71 Connectors of 2BRIDB-C1
74
Table 2-11 RJ-61 CO/PF Pin-Outs (J2, J3)
74
Figure 2-72 Switches Location of 2BRIDB-C1
75
Table 2-12 RJ-61 BRI Pin-Outs (S-Bus, T-Bus)
75
Table 2-13 Switch Setting of 2BRIDB-C1
75
Cabling and Setting IP4WW-1PRIU-C1
76
Pri 1
76
Figure 2-73 Connector of 1PRIU-C1
76
Table 2-14 RJ-45 PRI Pin-Outs (S-Bus, T-Bus)
77
Table 2-15 Switch Setting of 1PRIU-C1
77
Figure 2-74 Switches and Leds Location of 1PRIU-C1
78
Table 2-16 LED Indication
78
General
79
Power Failure Transfer (4COIDB-B1 Only)
79
Section 4 INSTALLING the OPTIONAL INTERFACE CARDS
80
Installing the Expansion Memory Card (MEMDB-C1)
80
Figure 2-75 Removing the Sub-Cover
80
General
80
Installing the MEMDB PCB
80
Table 2-17 MEMDB-C1 Packing List
80
Unpacking
80
Figure 2-76 Removing the Main-Cover
81
Figure 2-77 Removing the CPU Card
81
Figure 2-78 Installing the MEMDB PCB
82
Figure 2-79 Installing the CPU Card
82
Voip Card (VOIPDB-C1)
83
Figure 2-80 Replacing the Main-Cover
83
General
83
Installing the VOIPDB-C1 PCB
83
Table 2-18 VOIPDB-C1 Packing List
83
Unpacking
83
Figure 2-81 Removing the Sub-Cover
84
Figure 2-82 Removing the Main-Cover
84
Figure 2-83 Removing the CPU Card
85
Figure 2-84 Installing the VOIPDB-C1 PCB
85
Figure 2-85 Installing the CPU Card
86
Figure 2-86 Removing the Plastic Knockout and Replacing the Main-Cover
86
Figure 2-87 Connecting a LAN Cable
87
Figure 2-88 Location of Leds
87
LED Indication
87
Table 2-19 VOIPDB LED Indications
87
Vrs/Voice Mail Card (PZ-VM21)
88
General
88
Installing the PZ-VM21 PCB
88
Table 2-20 Operation of VOIPDB LED Indications
88
Table 2-21 PZ-VM21 Packing List
88
Unpacking
88
Figure 2-89 Removing the Sub-Cover
89
Figure 2-90 Removing the Main-Cover
89
Figure 2-91 Removing the CPU Card
90
Figure 2-92 Installing the PZ-VM21 PCB
90
Installing the CF Card (CFVMS)
91
Figure 2-93 Installing the CPU Card
91
Figure 2-94 Replacing the Main-Cover
91
Figure 2-95 Installing the CF Card
92
And Optional Terminals
93
Installing the Multiline Telephones
93
Figure 2-96 Multiline Telephone (12TXH/24TXH/24TIXH (IP))
93
Location of Controls
93
Table 2-22 Multiline Telephone Functions (12TXH/24TXH/24TIXH (IP))
93
Figure 2-97 Leg Setting for Low Position
94
Figure 2-98 Cabling of Multiline Telephone
94
Multiline Telephone Legs Adjustment
94
Figure 2-100 Leg Setting for High Position
95
Figure 2-99 Setting for High Position
95
Figure 2-101 Cabling for Wall-Mount
96
Figure 2-102 Wall-Mount Unit - 24TIXH-C
96
Wall-Mounting the Multiline Telephone
96
Figure 2-103 Hook-Switch Hanger
97
Figure 2-104 Wall-Mount Screw Guide
97
Figure 2-105 Mounting the Multiline Telephone
97
Install the IP Multiline Telephone (IP4WW-24TIXH-C1 TEL)
98
Figure 2-106 IP Multiline Telephone Connection
98
Figure 2-107 IP Multiline Telephone Connectors
98
Installing the IP Multiline Telephone
98
System Connection
98
Applying Power to the IP Multiline Telephone
99
Installing the DSS Console
99
DSS Console Leg Adjustment
99
Figure 2-108 Low Position Setting
99
Figure 2-109 Cabling of DSS
100
Figure 2-110 Leg Stopper of DSS Console
100
Figure 2-111 High Position Setting
101
Figure 2-112 Cabling for Wall-Mount
101
Wall-Mounting the DSS Console
101
Installing the Headset
102
Figure 2-113 Wall-Mount Screw Guide
102
Figure 2-114 Mounting the DSS
102
Installing the Doorphone Box
103
Figure 2-115 Headset Socket (2-Wire Multiline Telephone)
103
Figure 2-116 Headset Socket (IP Multiline Telephone)
103
Wall-Mounting the Doorphone
103
Figure 2-117 Doorphone Box and Bracket
104
Figure 2-118 Doorphone
104
Connecting the Doorphone
105
Doorphone Interface Specifications
105
Installing the Door Unlock Devices
105
Table 2-23 Doorphone Interface Specifications
105
Figure 2-119 Connecting the Doorphone
105
Table 2-24 RJ-61 General Purpose/Door Unlock Relay Control Connector (J7)
106
Table 2-25 General Purpose/Door Unlock Relay Specifications
106
Figure 2-120 Connecting the Door Unlock Device
106
Installing the External Paging Speaker/External MOH/BGM Sources
107
Connecting the Audio Equipment
107
External Paging Output Specifications
107
Figure 2-121 Connecting Audio Equipment
107
Table 2-26 External Paging Output Specifications
107
Bgm/External MOH Source Input Specifications
108
SMDR (Station Message Detail Recording)
108
Figure 2-122 Connecting a PC for SMDR
108
General
108
Table 2-27 Bgm/External MOH Source Input Specifications
108
Chapter 3 System Start up
109
Before Starting up the System
109
Starting up the System
109
Table 3-1 Start up Method
109
Figure 3-1 Lithium Battery Protection Sheet
109
Section 1 SYSTEM START up
109
Perform a Cold Start
110
Figure 3-2 Power Switch Location
110
Figure 3-3 Load Button (S1) Location
110
Perform a Hot Start
111
Figure 3-4 Status LED (D5) and RUN LED Location
111
Figure 3-5 Display Indication (Idle)
111
Section 2 PROGRAMMING MODE
112
Entering the Programming Mode
112
Exiting the Programming Mode
112
Saving (Backup) the Customer Data
113
Loading the Customer Data
113
Figure 3-10 Inserting the CF Card
113
Figure 3-11 PRG90-03 Display
113
Figure 3-12 PRG90-04 Display
113
Figure 3-13 Inserting the CF Card
114
Figure 3-14 PRG90-04 Display
114
Figure 3-15 Next PRG Display
114
Section 3 SYSTEM SHUT down
115
Powering off the System
115
Resetting the System
115
Figure 3-16 Power Switch Location
115
Chapter 4 Maintenance
117
Section 1 FUSE REPLACEMENT
117
Replacing the Fuse
117
Figure 4-1 Removing the Sub-Cover
117
Figure 4-2 Removing the Main-Cover
117
Figure 4-3 Exchanging the Fuse
118
Figure 4-4 Replacing the Main-Cover
118
Section 2 LITHIUM BATTERY REPLACEMENT
119
General
119
Lithium Battery Specification
119
Figure 4-5 Warning of Low Battery
119
Replacing the Lithium Battery
120
Figure 4-6 Removing the Sub-Cover
120
Figure 4-7 Disconnecting the AC Power Cord
120
Figure 4-8 Removing the Main-Cover
121
Figure 4-9 Removing the CPU Card
121
Figure 4-10 Location of Lithium Battery Socket
122
Figure 4-11 Removing the Lithium Battery
122
Figure 4-12 Inserting the Lithium Battery
122
Figure 4-13 Installing the CPU Card
123
Section 3 MAIN SOFTWARE UPGRADING
124
General
124
Before Upgrading the Main Software
124
Main Software Version Confirmation
124
Figure 4-14 Display of Multiline Telephone
124
Upgrading the Main Software
125
Figure 4-15 Removing the Sub-Cover
125
Figure 4-16 Removing the Main-Cover
125
Table 4-1 Status Leds
126
Figure 4-17 Inserting the CF Card
126
Figure 4-18 LOAD Button (S1) Location
126
Figure 4-19 Removing the CF Card
127
Section 4 LED INDICATIONS
128
Table 4-2 CPU LED Indications
128
Chapter 5 Specifications
129
Section 1 SYSTEM CAPACITY
129
Table 5-1 System Capacity
129
Section 2 SYSTEM SPECIFICATIONS
131
General Precautions
131
Environmental Requirements
131
Operating Conditions
131
Site Requirements
131
AC Power Requirement
131
Table 5-2 Operating Conditions
131
Table 5-3 Power Requirement
131
Electrical Specifications <Power Supply> (KSU)
132
Cpu
132
Traffic Capacity
132
Table 5-4 Electrical Specifications of KSU
132
IP Terminal Power Chart
133
Ieee802.Af Class Specification
133
SLT Ring Signal Specification (V5.0 or Higher)
133
Mechanical Specifications
133
Table 5-5 IP Terminal Power Chart
133
Table 5-6 Ieee802.Af Class Specification
133
Table 5-7 Mechanical Specifications
133
Optional Unit Mechanical Specifications
134
Doorphone Interface Specifications
134
General Purpose/Door Unlock Relay Specifications
134
External Paging Output Specifications
134
Table 5-8 Optional Unit Mechanical Specifications
134
Table 5-9 Doorphone Interface Specifications
134
Table 5-10 General Purpose/Door Unlock Relay Specifications
134
Table 5-11 External Paging Output Specifications
134
Bgm/Exmoh Source Input Specifications
135
External Sensor Device Interface Specifications
135
CPU Card LAN Port Specifications
135
Cabling Requirements
135
Table 5-12 Bgm/External MOH Source Input Specifications
135
Table 5-13 External Sensor Device Interface Specifications
135
Table 5-14 CPU Card LAN Port Specifications
135
Cable Requirements
136
Table 5-15 Cable Requirements
136
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the NEC DP-D-1D and is the answer not in the manual?
Ask a question
NEC DP-D-1D Specifications
General
Brand
NEC
Model
DP-D-1D
Category
Telephone System
Language
English
Related product manuals
NEC DSX-160
2 pages
NEC dX-Z Series
31 pages
NEC Dterm I Series
59 pages
NEC UNIVERGE DT930
104 pages
NEC DSX INTRAMAIL FEATURE
94 pages
NEC DSX PRODUCT DESCRIPTION
162 pages
NEC IP4WW-60D DSS-B CONSOLE (BK)
138 pages
NEC SL 1000
666 pages
NEC 1232 AK Series
86 pages
NEC Univerge SV9500
281 pages
NEC IP4WW-12TXH-B-TEL(BK)
138 pages
NEC IP4WW-24TXH-B-TEL(BK)
138 pages
To Next PageTo Next PageTo Previous PageTo Previous Page
Loading...
Need help?
General
