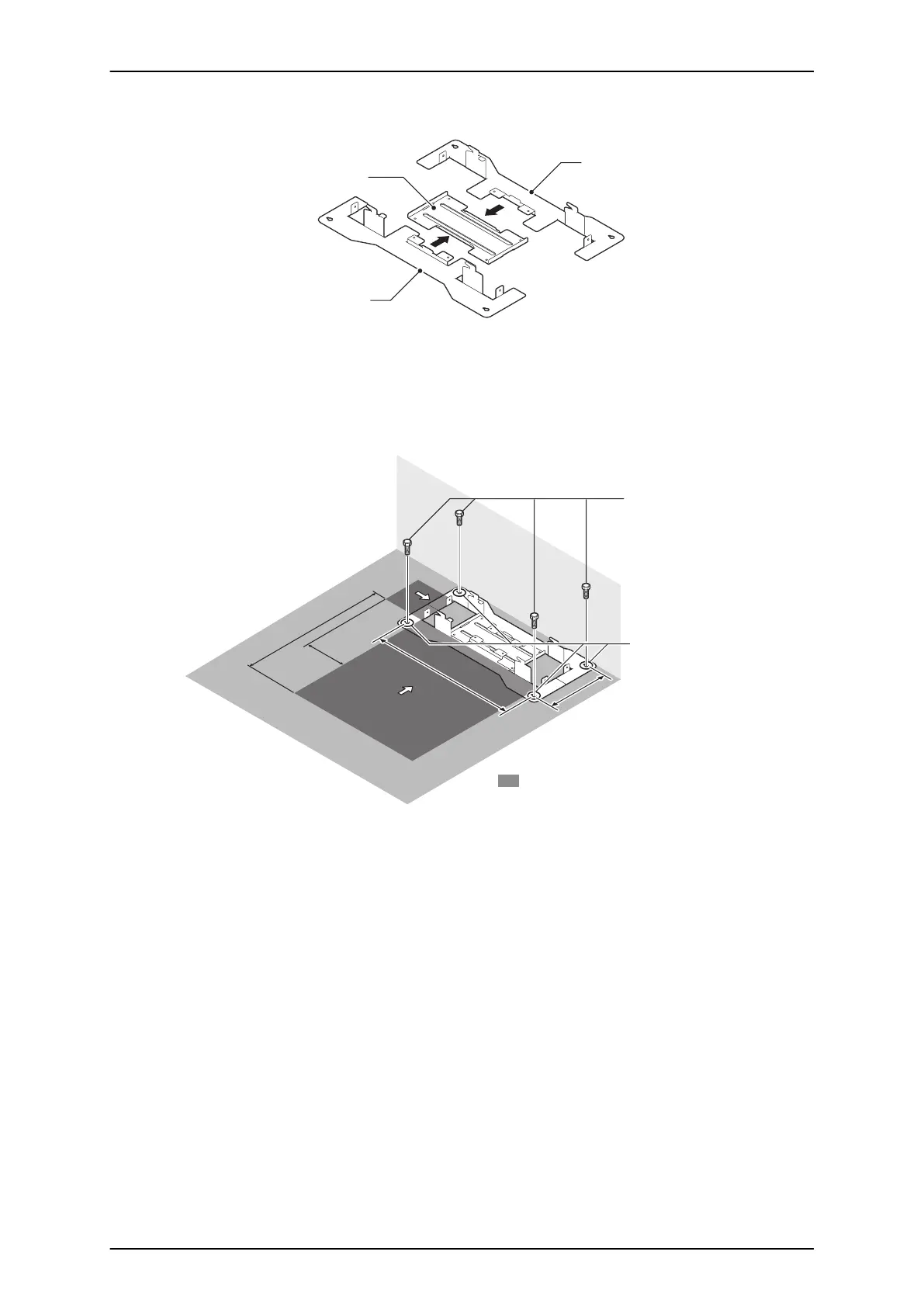

1. Assemble the FM/WM Base-F, Base-R and WM Support.
WM Support
FM/WM Base-R
FM/WM Base-F
Figure 2-29 Bases and Support of the Battery Box
2. Refer to Figure 2-30 Floor-Mount Spacing Guide on page 2-22 for required spacing before
drilling holes for 10 mm (0.394″) anchor bolts (locally procured).
Mark and drill the four holes required to install the FM/WM Base.
3. Using anchor bolts, secure the FM/WM Base to the floor.
Four Anchor bolts
M10 mm (0.394″)
Front side
: Maintenance space
Wall
AC inlet
side
500 mm (19.685″)
190 mm
(7.480″)
Anchor bolt location
Figure 2-30 Floor-Mount Spacing Guide
SL1100 ISSUE 4.1 (R5.1)
2-22 Installation
