11.

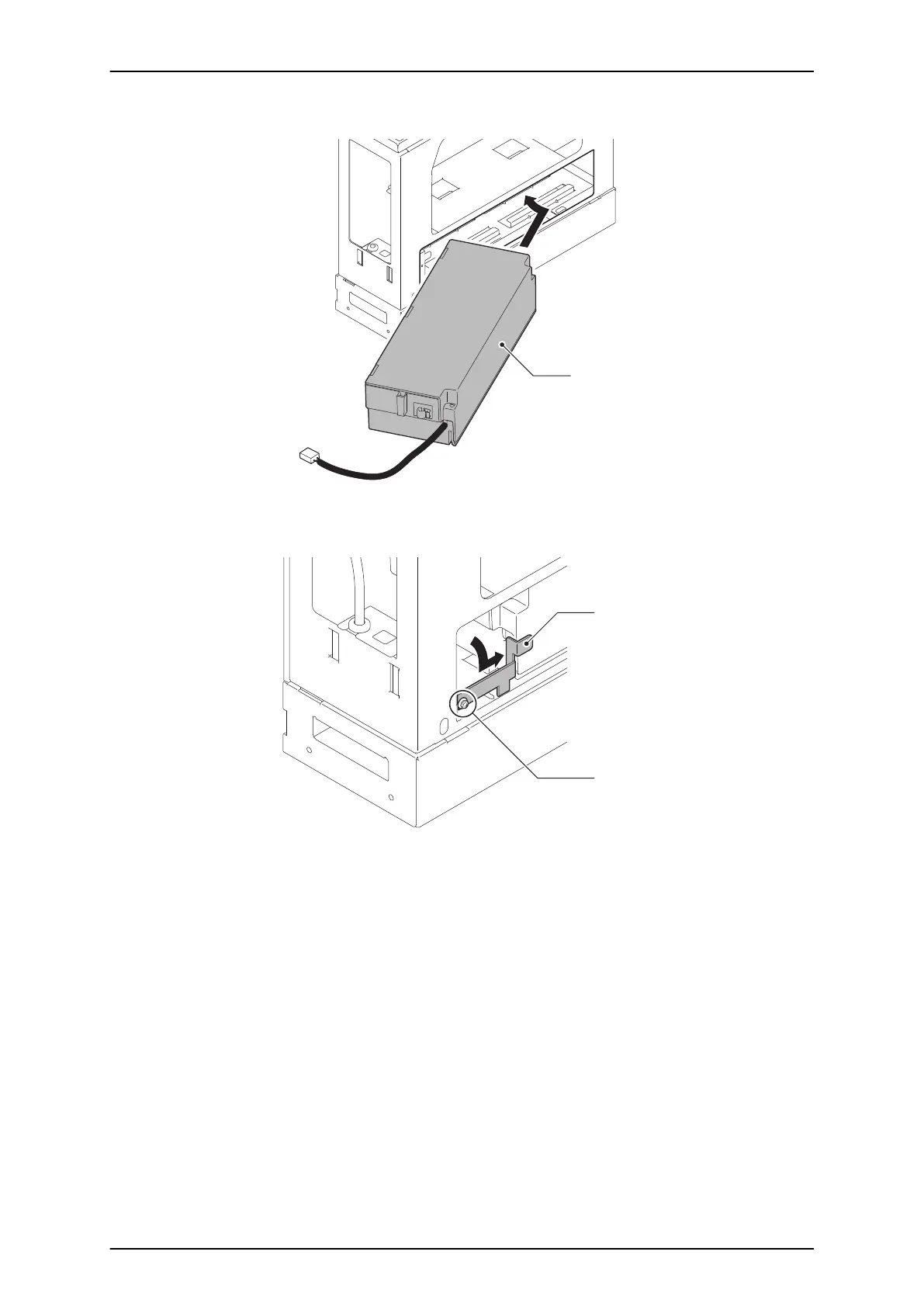

Insert the Battery tray into the Battery Box.
Battery tray
Figure 2-25 Inserting the Battery Tray
12.
Set the Batt Stopper bracket in place and secure with screw.
Screw
Batt Stopper
Figure 2-26 Secure Batt Stopper Bracket
SL1100
ISSUE 4.1 (R5.1)
2-20
Installation
