5. Mount the 2BRIDB-C1 with 084M-B1/080E-B1/008E-B1/000E-B1 PCB into the KSU.
084M-B1/080E-B1/008E-B1/000E-B1 PCB
and 2BRIDB-C1 PCB
Nylon-
Spacers
J1
Metal-Spacers
J21
Screws

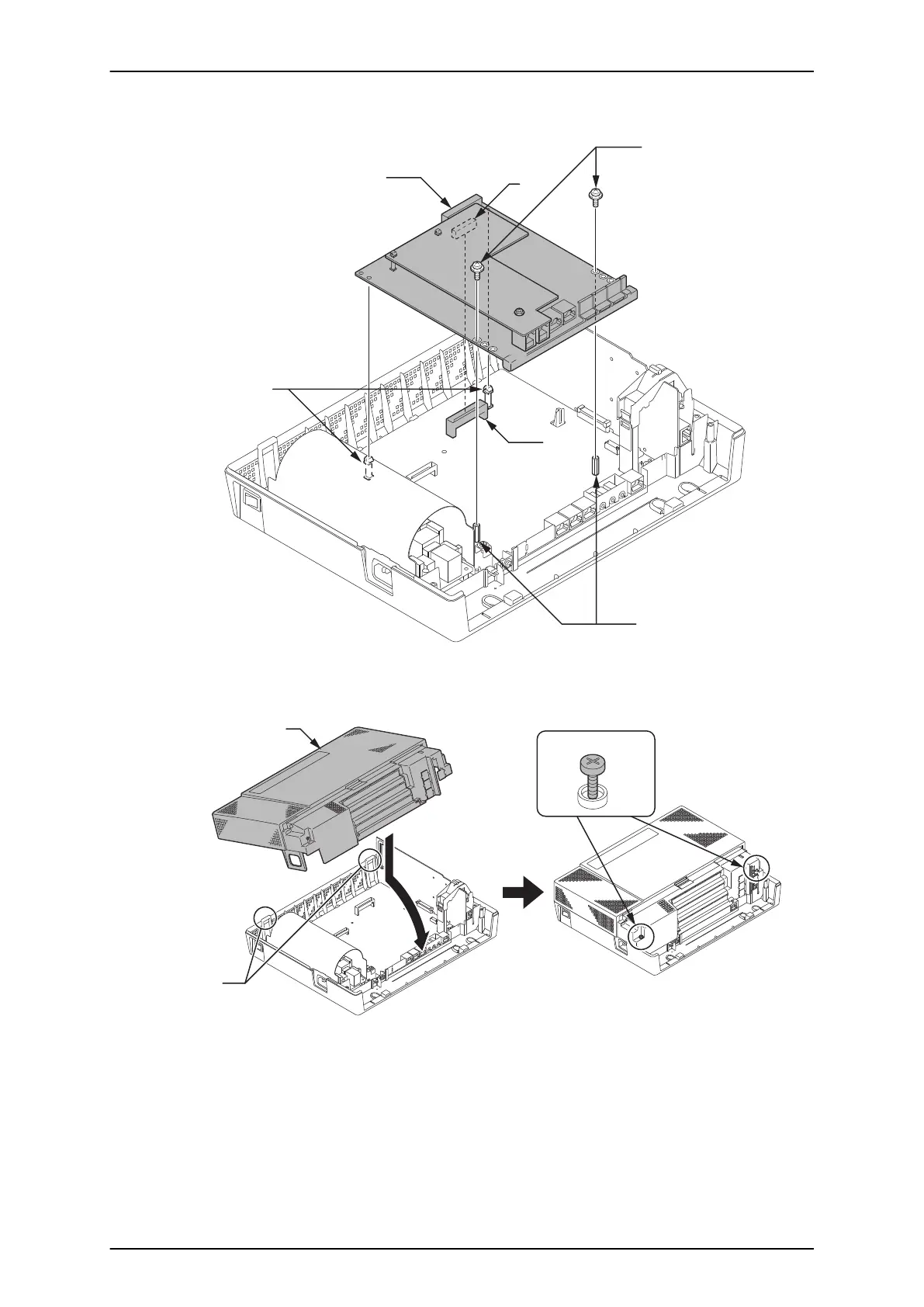

Figure 2-66 Mounting the 2BRIDB-C1 into the KSU
6. Replace the Main-Cover and fasten two screws.
Two screws
Hooks
Main-Cover
Figure 2-67 Replacing the Main-Cover
3.4 Cabling and Setting the Expansion Interface Card
Precautions for Cabling
• Do not wire the cable with an AC cable, computer, etc.
• Do not run the cable near the high frequency generating device.
SL1100
ISSUE 4.1 (R5.1)
2-44 Installation
To Next Page
