9. Appendix
127
[PE505XL]

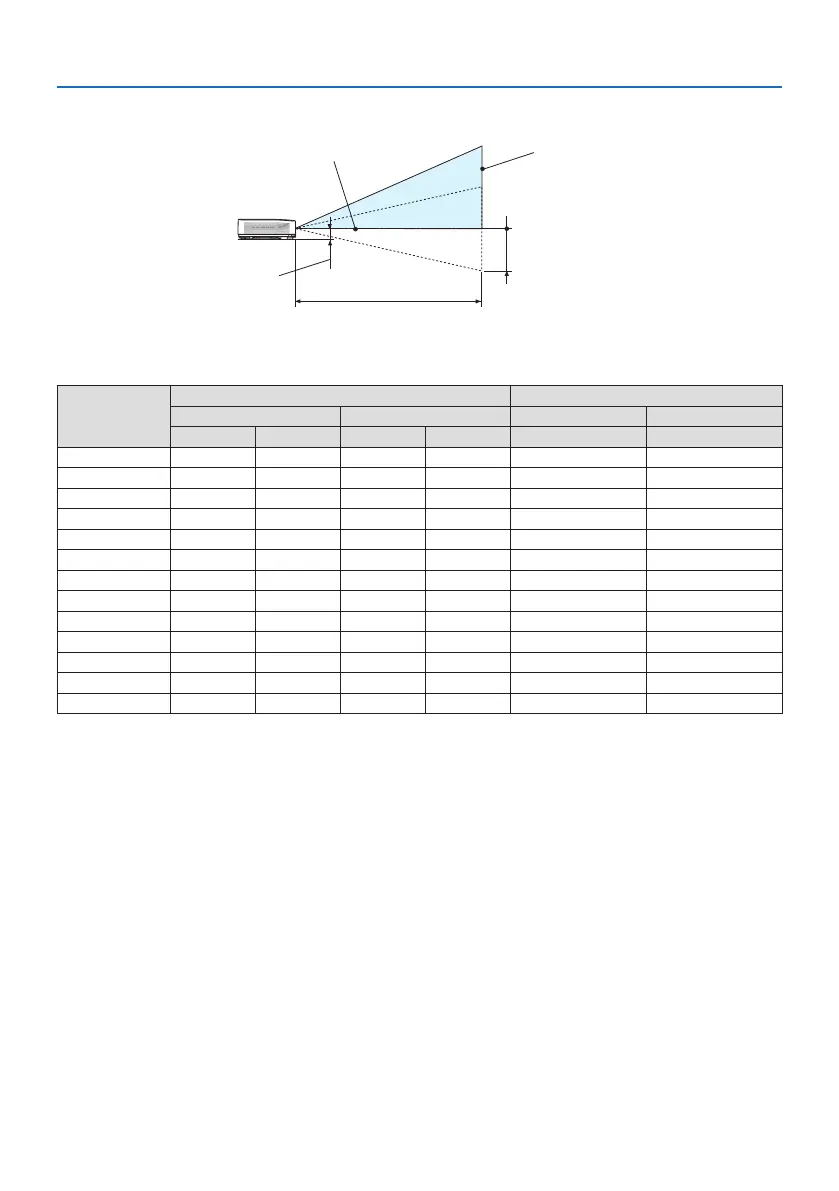

Screen surface
Lower edge of screen with 50% V
Measurement +H
Measurement −H
Lower edge of screen with 0% V
Lens center
Approximately 78 to 87 mm
Projection distance L
(NOTE) Height from lens center to lower edge of screen (with tilt feet screwed in)
Screen size
(inches)
Throw distance L Height H
(m) (inches) (cm) (inches)
Wide Tele Wide Tele 0%V – 50%V 0%V – 50%V
30 0.79 1.35 31.3 53.0 –22.9 – +0 –9.0 – +0
40 1.07 1.81 42.2 71.1 –30.5 – +0 –12.0 – +0
60 1.63 2.73 64.1 107.5 –45.7 – +0 –18.0 – +0
80 2.19 3.65 86.0 143.8 –61.0 – +0 –24.0 – +0
90 2.46 4.12 97.0 162.0 –68.6 – +0 –27.0 – +0
100 2.74 4.58 107.9 180.2 –76.2 – +0 –30.0 – +0
120 3.30 5.50 129.8 216.5 –91.4 – +0 –36.0 – +0
150 4.13 6.89 162.7 271.0 –114.3 – +0 –45.0 – +0
180 4.97 8.27 195.5 325.6 –137.2 – +0 –54.0 – +0
200 5.52 9.19 217.4 361.9 –152.4 – +0 –60.0 – +0
250 6.63 11.04 261.2 434.6 –182.9 – +0 –72.0 – +0
270 7.47 12.42 294.0 489.1 –205.7 – +0 –81.0 – +0
300 8.30 13.81 326.9 543.6 –228.6 – +0 –90.0 – +0
