2. Projecting an Image (Basic Operation)
27

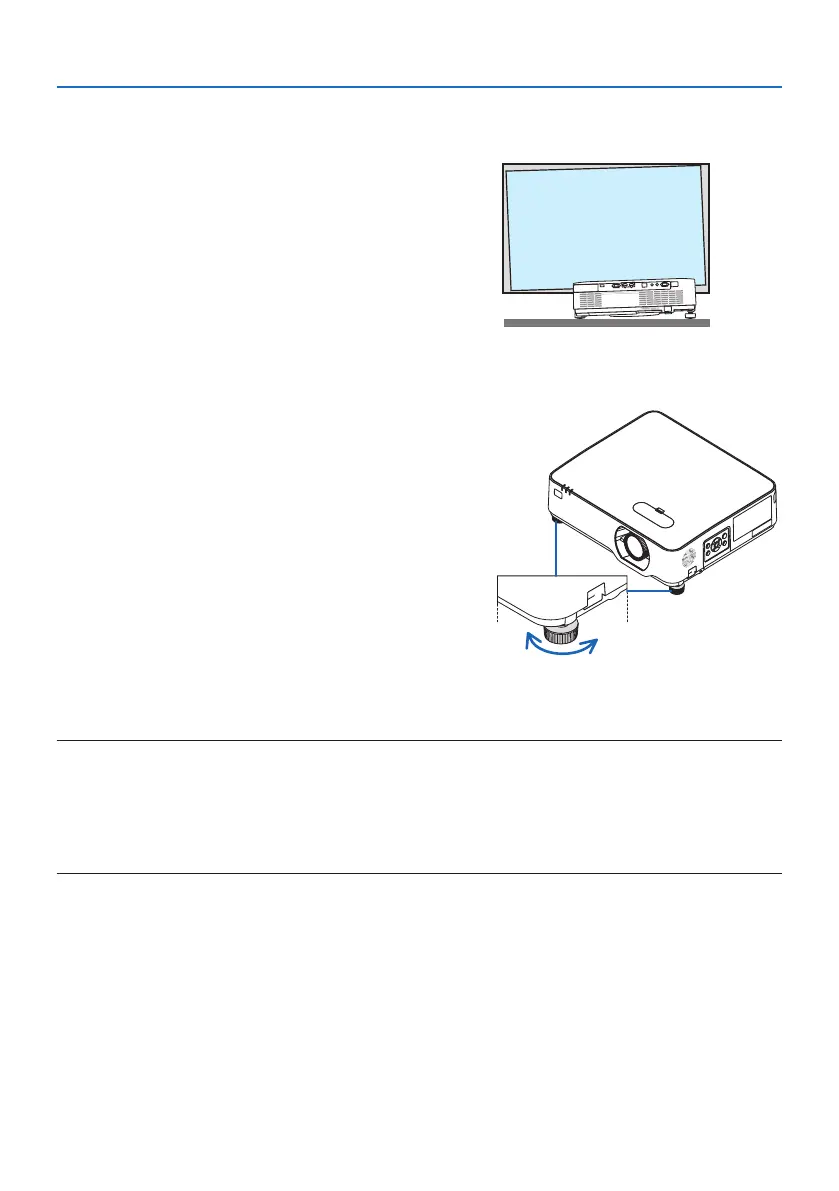

Adjusting the tilt (Tilt foot)
Adjusting the left and right tilt.
1. Turn the left and right tilt feet to adjust.
The tilt feet lengthen and shorten when turned.
The height of the projected image is adjusted
by turning the left and right tilt feet.
If the projected image is tilted, turn one of the
tilt feet to adjust the image so that it is level.
• Iftheprojectedimageisdistorted,see“2-6
Correcting Keystone Distortion [KEYSTONE]”
(→ page 28).
• Thetiltfeetcanbelengthenedbyamaxi-
mum of 15 mm/0.6".
• Thetiltfeetcanbeusedtotilttheprojector
by a maximum of 2°.
Up Down
Tilt foot
NOTE:
• Donotlengthenthetiltfeetanymorethan15mm/0.6".Doingsowillmakethetiltfeet’smountsectionunstableandcouldcause
thetiltfeettocomeotheprojector.
• Donotusethetiltfeetforanypurposeotherthanadjustingtheprojector’sprojectionangle.
 Handlingthetiltfeetimproperly,suchascarryingtheprojectorbygraspingthetiltfeetorhookingitontoawallusingthetiltfeet,
coulddamagetheprojector.
