3-10 Option Installation
Sample Memory Configurations
Bank 0 Bank 1 Bank 2 Total RAM
128 MB 32 MB 32 MB 192 MB
128 MB 64 MB Empty 192 MB
128 MB 64 MB 32 MB 224 MB
128 MB 64 MB 64 MB 256 MB
128 MB 128 MB Empty 256 MB
128 MB 128 MB 32 MB 288 MB
128 MB 128 MB 64 MB 320 MB
128 MB 128 MB 128 MB 384 MB
DIMM Removal
Use the following procedure to remove a DIMM.
!
CAUTION
Reduce static discharge by touching the system’s metal
chassis.
1.
Remove the access cover.
2.
Locate the DIMM sockets.
3.
To remove a DIMM from its socket, press the plastic clips at the outer edges
of the socket away from the DIMM.
4.
Carefully rock the DIMM to pull it from the socket.

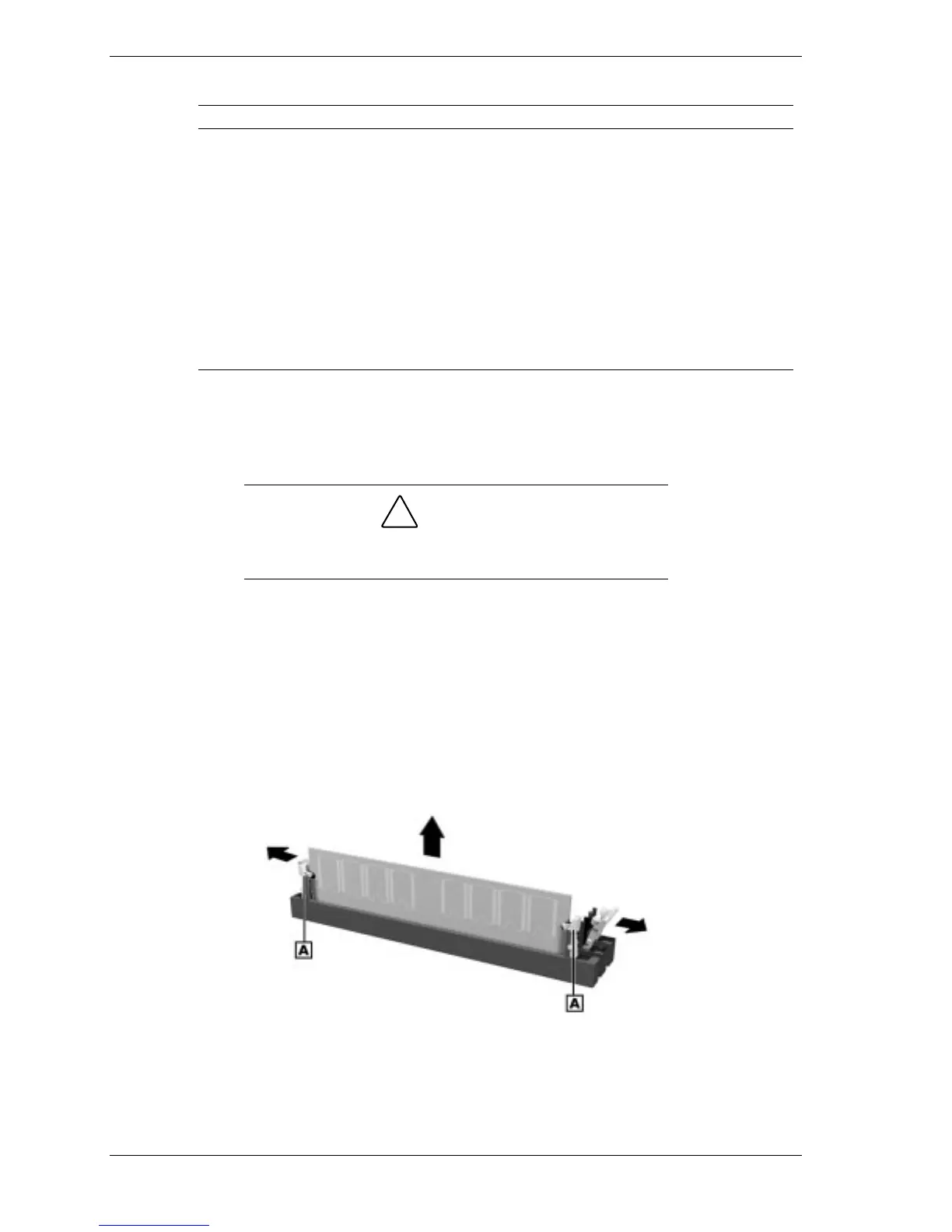

Removing a DIMM
A – Plastic Clip
5.
Store the DIMM in an antistatic bag (available at electronic supply stores) or
a cardboard box.
To Next Page
