Disassembly and Reassembly 5-5
Side Panel Removal
Remove the side panel from the system unit as follows.
1. Remove the system access cover and front panel as previously described.
2. Locate the two side panel securing tabs at the front of the system.
3. Pull the tabs out and away from the system.
4. Slide the side panel towards the rear of the unit and away from the unit.
Device Cage Removal
Remove the device cage from the system unit as follows.
1. Label and disconnect any cables connected to devices in the device cage.
2. Locate the screw on the front of the system between the 3 1/2-inch blank
panel and diskette drive (see the following figure). Remove the screw.

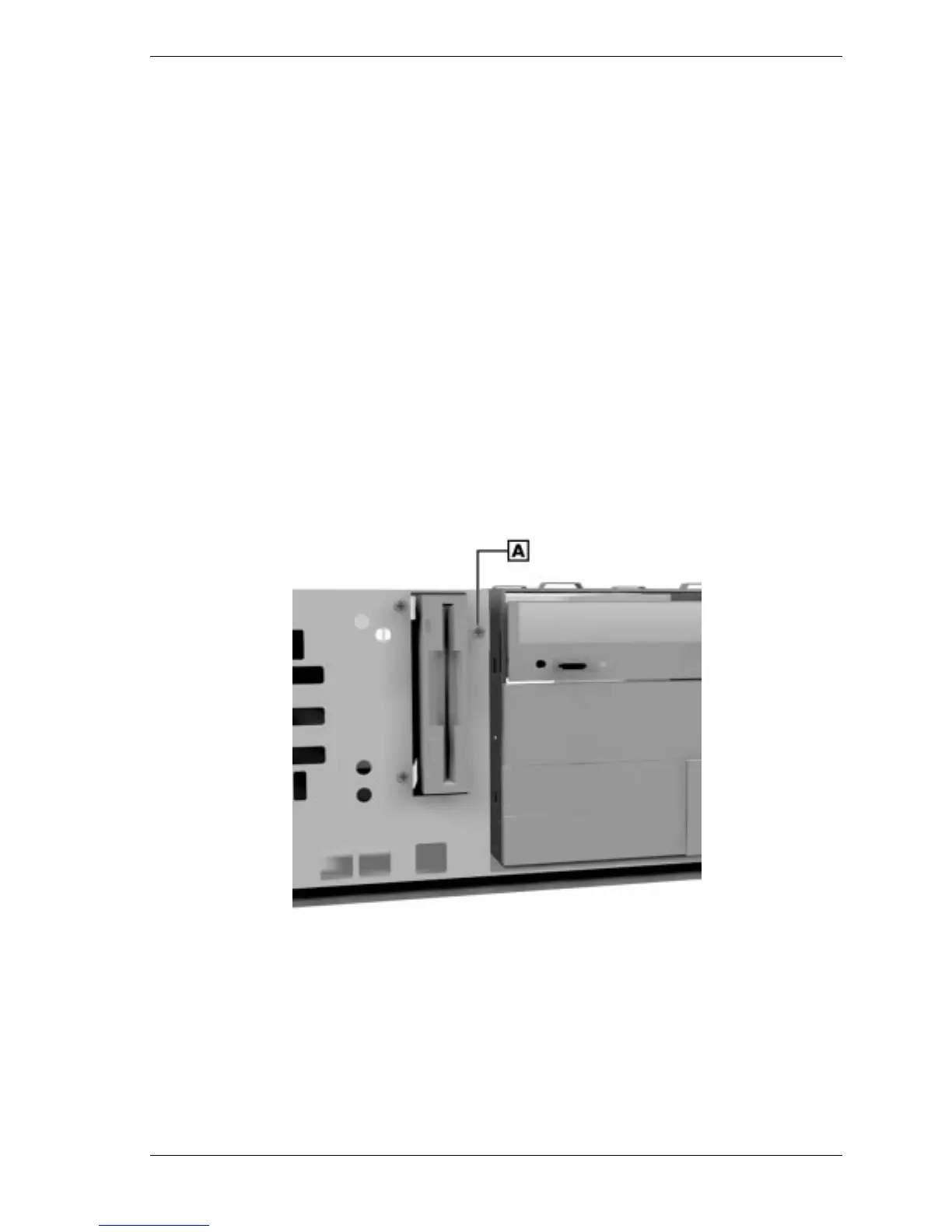

Locating the Device Cage Screw
A
– Device Cable Screw
3. Slide the cage towards the front of the system and lift it out of the unit.
