3-22 Option Installation
6. To install a 3 1/2-inch device in an accessible slot:
Remove the plastic blank panel from the selected slot by pressing the
panel tab inward and swinging the blank panel out (see the following
figure).

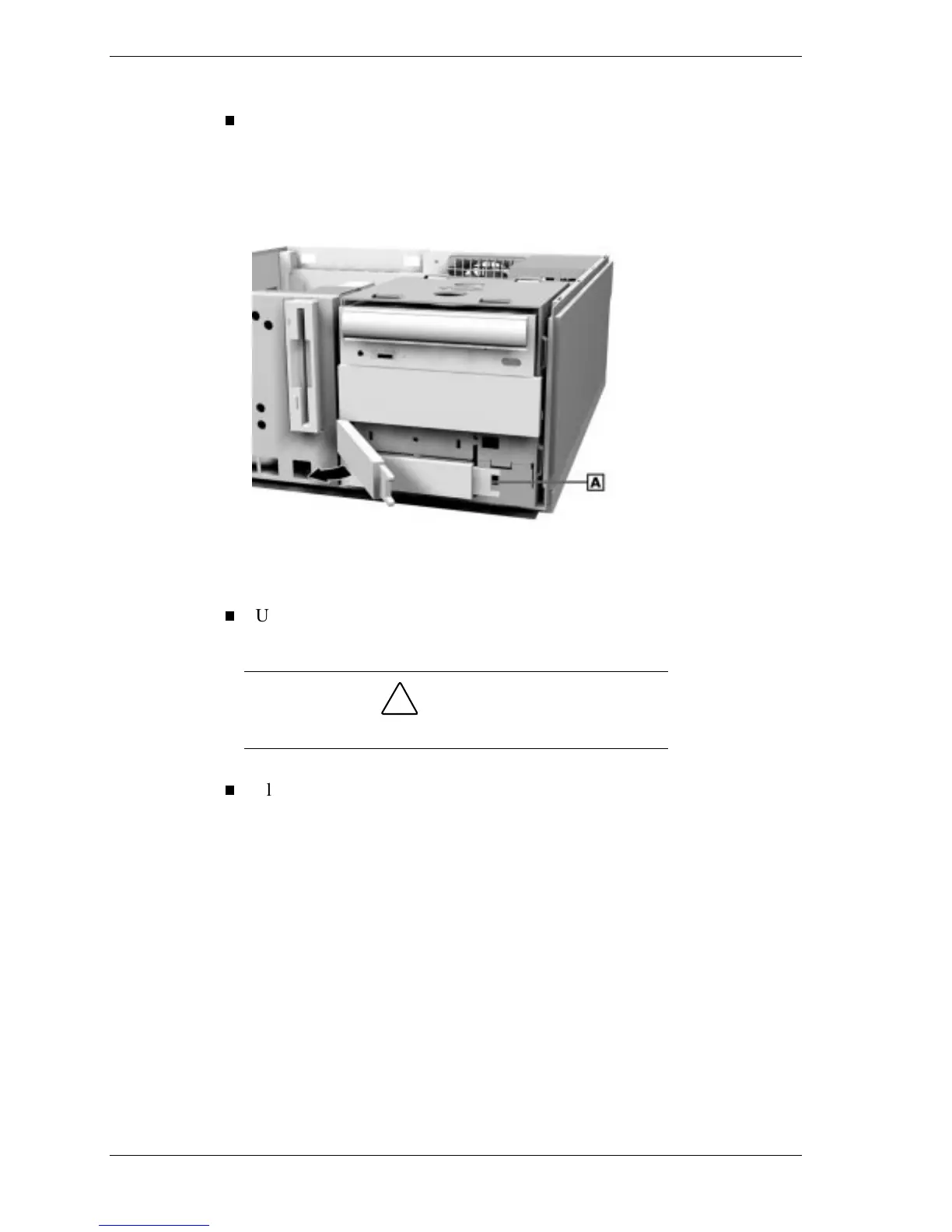

Removing the Blank Panel
A
– Blank Panel Tab
Use a screw driver to remove the metal slot cover by carefully pressing
it until it breaks away from the chassis.
!
CAUTION
Be careful of sharp edges!
Slide the device into the slot and secure the device.
7. Connect the device cables (see “Cabling an IDE Device”).
8. Replace the front panel.
9. Replace the access cover.
