3-16 Option Installation
Device Cabling
All storage devices require a power and signal cable connection. Devices
shipped with the system are already connected. Cable optional devices as
follows.
Cabling an IDE Device
1. Connect the IDE signal cable connector to the connector on the IDE device.
Take care to prevent bending drive connector pins. Align the IDE cable
connector as shown in the following figure.
2. Locate an available power connector coming from the power supply.
3. Connect the appropriate power cable to the power connector on the IDE
device.

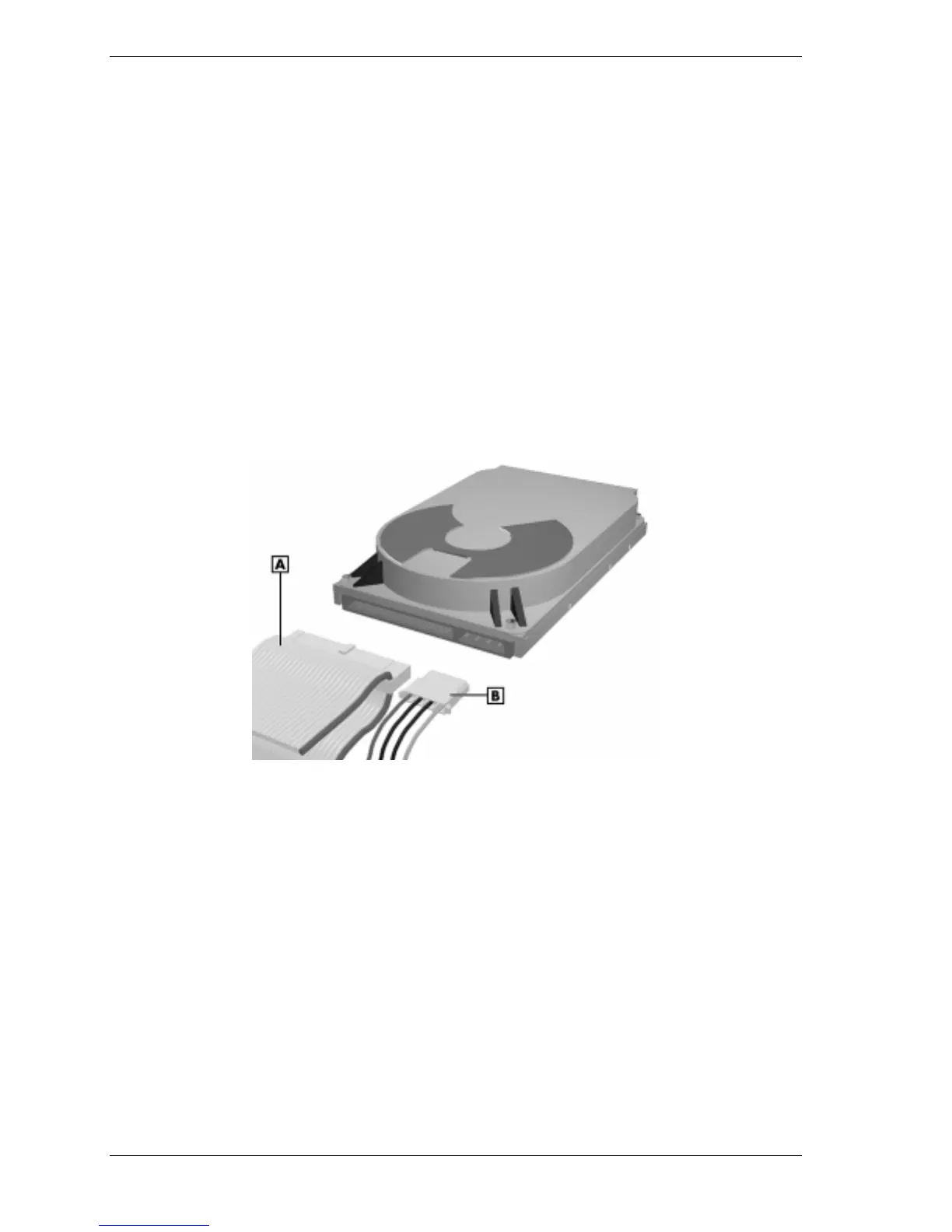

Connecting IDE Device Cables
A
– IDE Cable
B
– Power Cable
4. If installing an IDE CD-ROM drive, also connect the audio cable (see the
instructions that come with the drive).
Cabling an Accessible 5 1/4-Inch Device
1. Connect the diskette drive signal cable connector to the signal connector on
the device (see the following figure).
2. Locate an available power connector.
3. Connect the power cable to the power connector on the device.
