5-4 Disassembly and Reassembly
Removing a Board
Front Panel Removal
Remove the front panel from the system unit as follows.
1. Locate the two plastic tabs at the front of the chassis. They are indicated by
two arrows engraved on the chassis.
2. Press down on the two tabs and press in a third tab at the end of the panel to
release the panel (see the following figure).

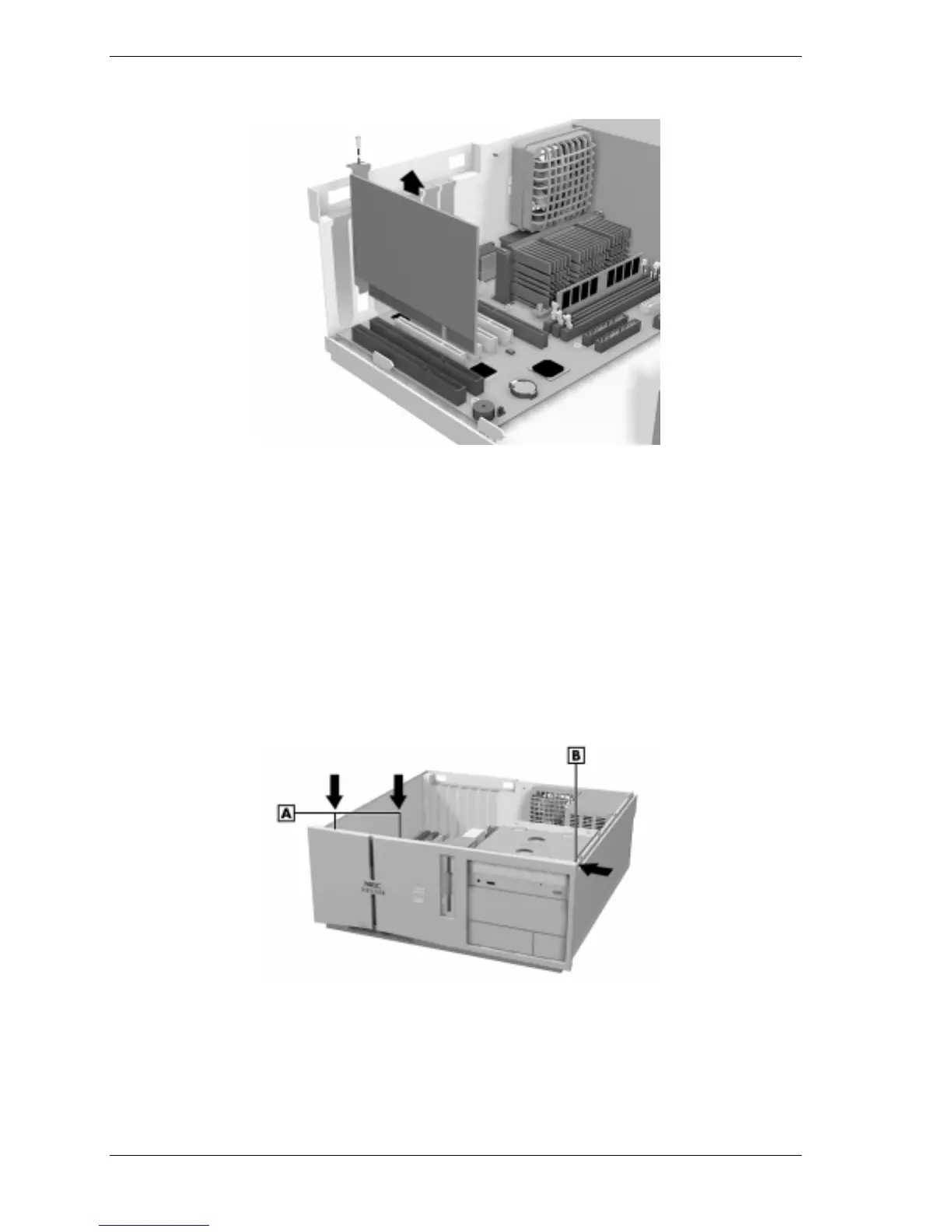

Releasing the Front Panel
A
– Release Tab
B
– Thumb Screw
3. Pull the panel away from the chassis.
