Nedap uPASS Access User Manual

uPASS Access | installation guide
8/
33
Mount the base-plate on the required location.
Ensure that it is placed correctly covering the cable entry hole. Properly fix the base-plate into its position using the 2
screws. When mounting on a stone or concrete wall drill 5mm holes for the plugs. When mounting on wood, drill with
2.5mm.
Install the uPASS Access reader onto the base-plate.
1. Feed the cable through the cable entry hole. Important note: minimum bending radius 30mm.
2. Attach the top of the uPASS Access onto the base-plate.
3. Fix the assembly using the screw on the bottom.

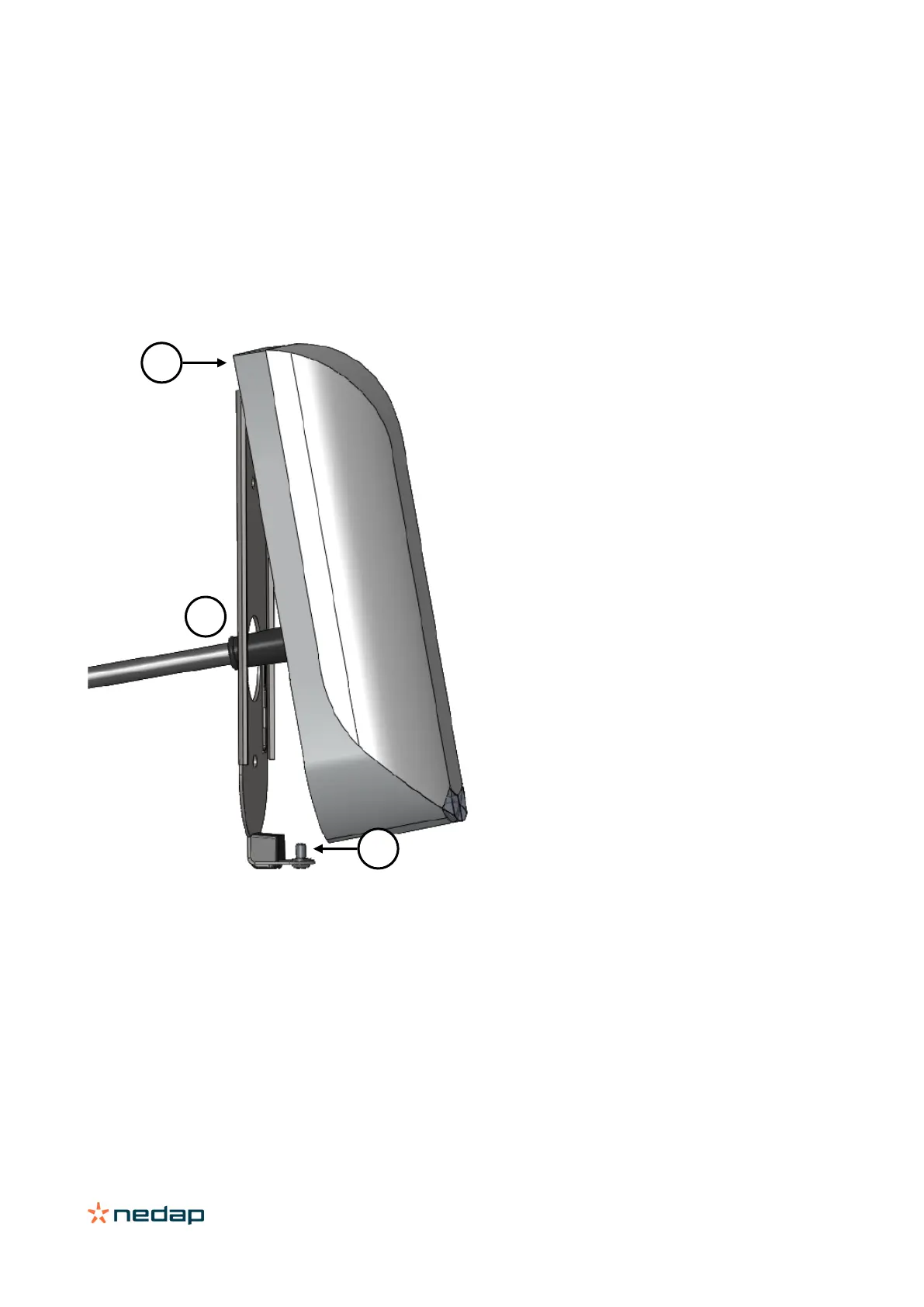

Figure 2: uPASS Access installation
1
2
3
