Nedap uPASS Access User Manual

uPASS Access | installation guide
9/
33
2.3 Antenna coverage
The uPASS Access antenna has a detection coverage area as shown in the picture below.
The read range, which is up to 2 meters, can be adjusted by means of UHFTOOL software setting. See chapter 5.3.5.
Reducing the read range will shrink the complete antenna lobe.

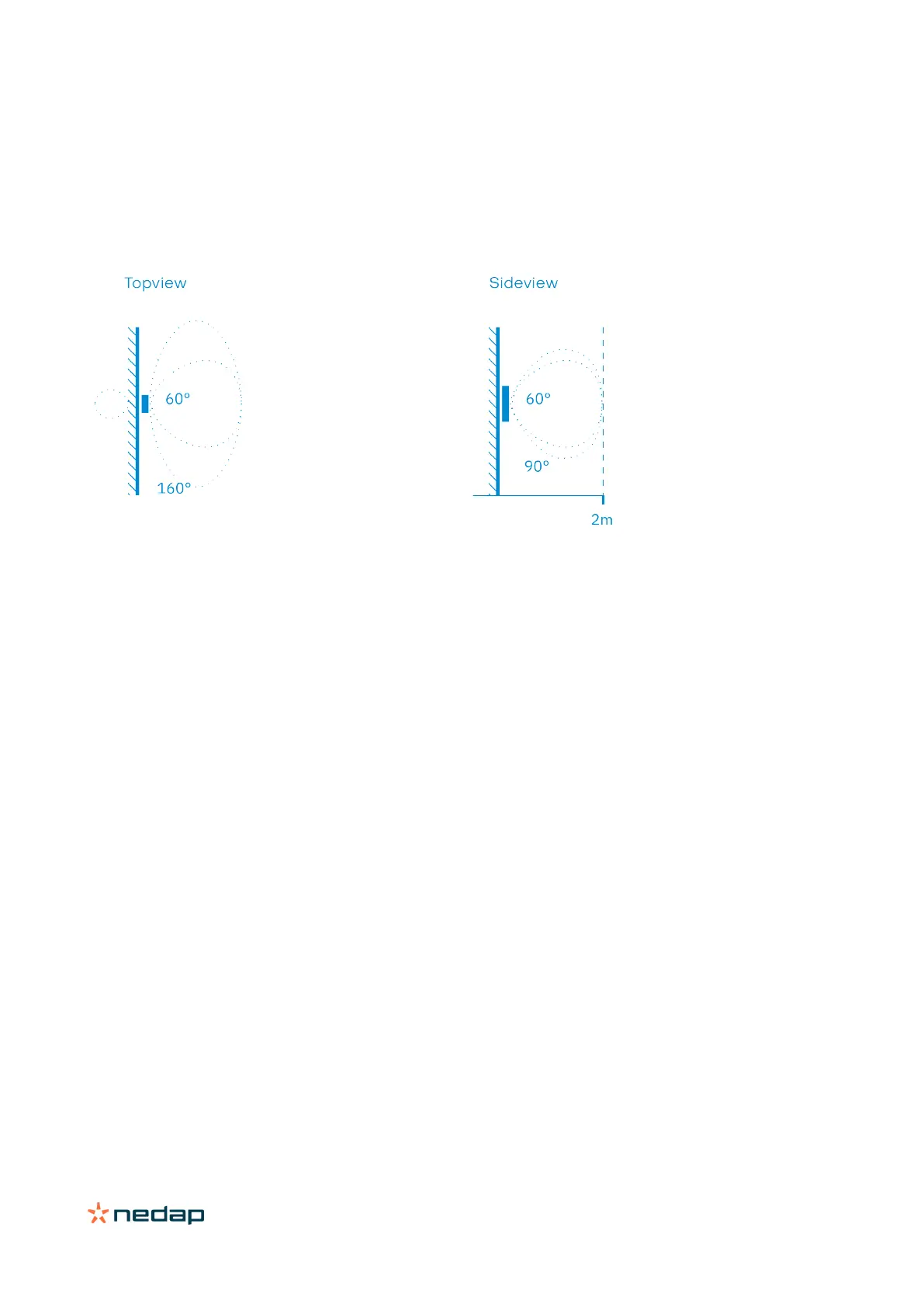

Figure 3: uPASS Access antenna coverage
Maximum read range: 2 meter (
6 feet)
Antenna polarization: Horizontal / Vertical
Horizontal reading angle: 160° / 90°
Vertical reading angle: 90° / 60°
