Nederman FlexPAK 800 Setting Manual

FlexPAK 800/1000
6
Run mode
Run Closed valve Closed valve Open valve Open valve Off
FCDelay
Clencyl
FC Start
Impulse
Output Q3
(FC Valve)
Output
Q12 Duct Isolaon
Damper SFV2)
Duct Isolaon Damper
Mechanical status
Closing Time
Extra delay mer to FC
TL=2s
TL=3s
TH=2s
TH=
1s
TL=3s
15s
TH=2s
TL=3s
TH=2s
T=Approximately 22 seconds
Filter Cleaning
IsoVDly(T=4s)
Vacuum
Equalizaon
me
Opening Time

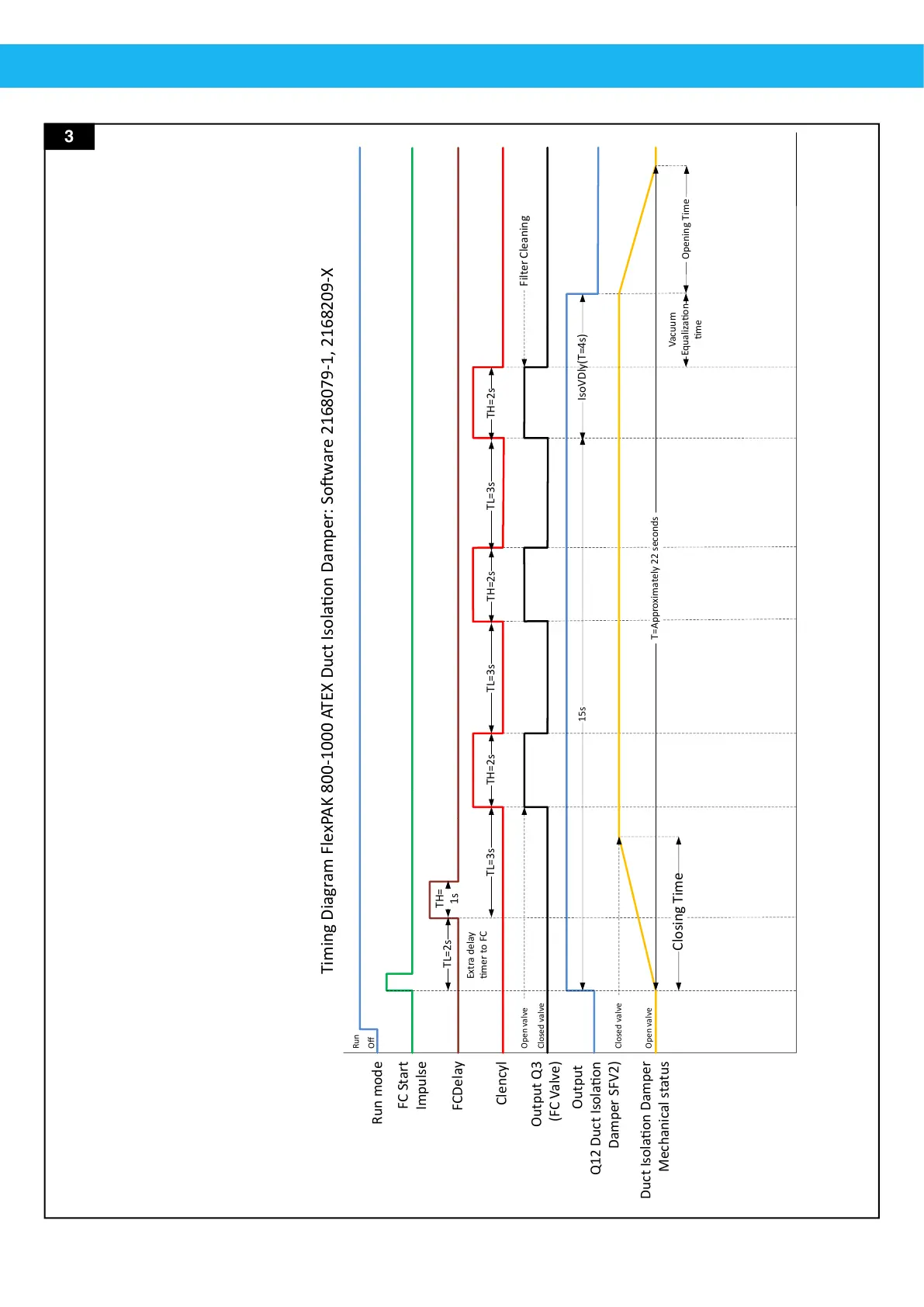

Timing Diagram FlexPAK 800-1000 ATEX Duct Isolaon Damper: Soware 2168079-1, 2168209-X
