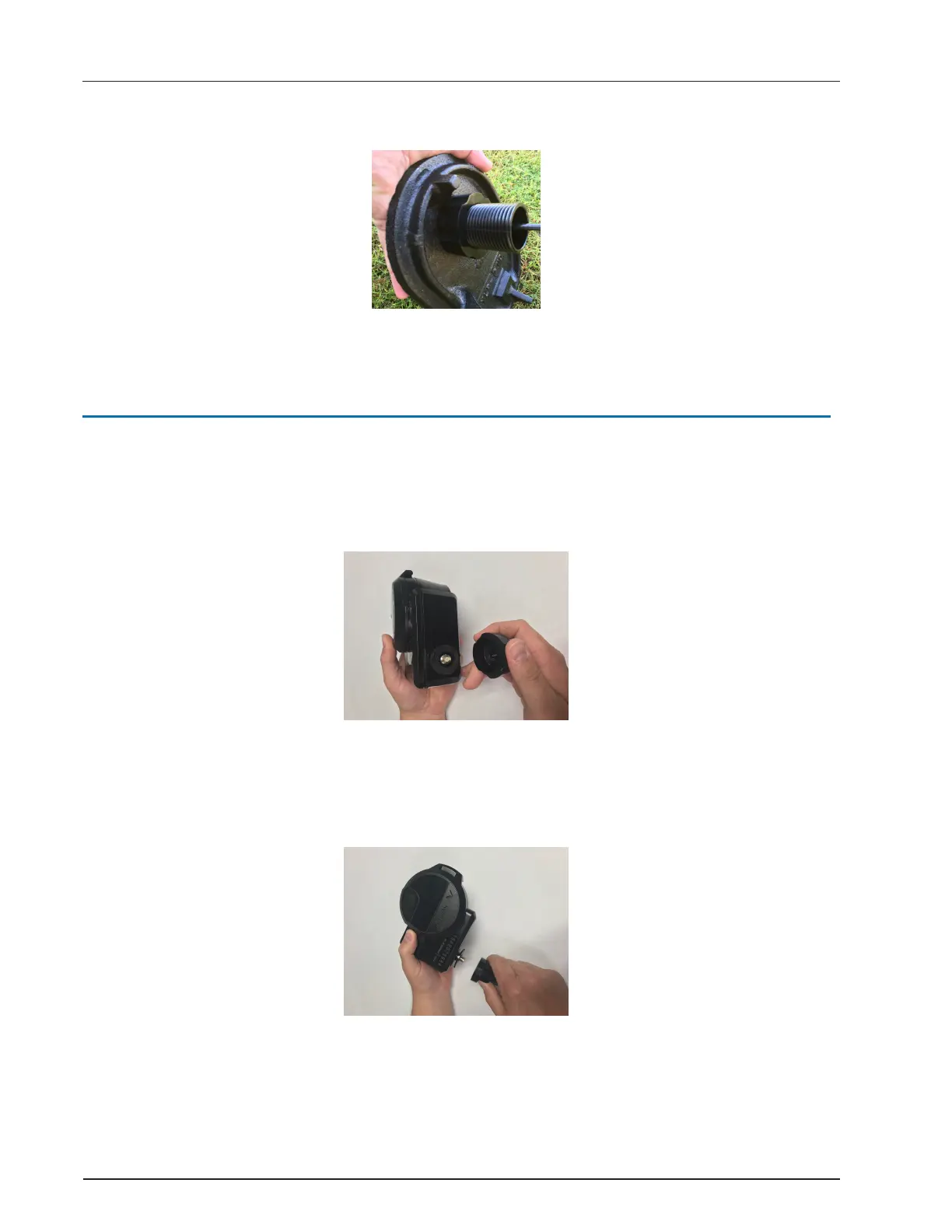

This figure shows a completed installation of the antenna.
Figure 8 Installation Complete
Attaching the Antenna to the MIU
Follow these steps to attach the antenna to the MIU.
1. Remove the protective cap and gasket. If you are replacing an existing antenna, remove
the existing antenna connection and clean any dirt, debris, or dielectric grease from the
F connector on the MIU housing.
Figure 9 Remove the Protective Cap and Gasket
2. Carefully align the F connector center conductor and insert the quick connect cable
connector into the F connector on the MIU housing.
Figure 10 Align the F Connector
E-CODER
®
)R900
i
Installation and Maintenance Guide 9
Chapter 3: Installing the E-CODER
®
