5.1.2. MINIMUM SAFETY DISTANCES
In order to provide a good performance of the device, respect the minimum safety distance from the side walls, other devices
and/or heat sources.
Maintain a minimum safety distance of 0.6 m from other heat sources. 0.1 m is enough if
there are no other heat sources present.

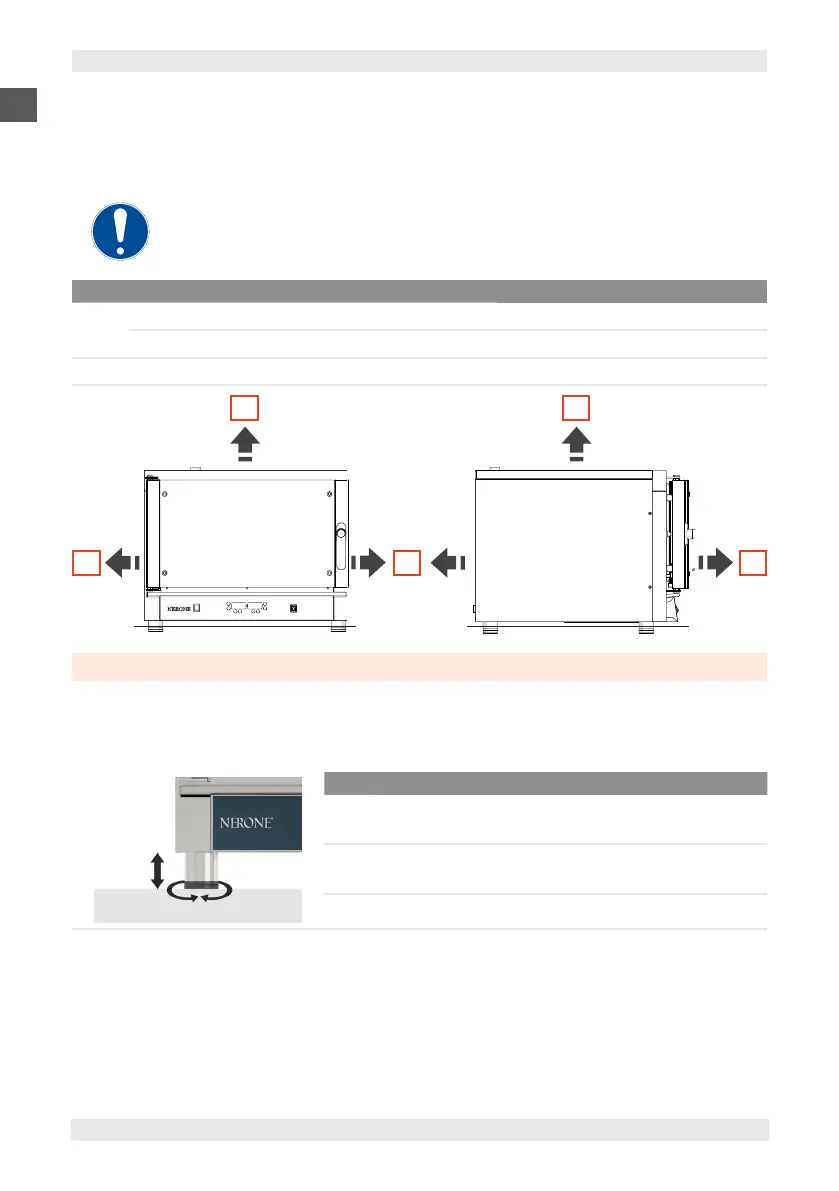

MINIMUM SAFETY DISTANCES
A
Lateral with presence of other heat sources nearby min 0.6 mm
Lateral/upper without presence of other heat sources nearby min 0.1 mm
B Front min 0.9 mm
A
BA
A
A
5.2. POSITIONING ON SUPPORT STRUCTURE
The base of the support structure must be built in non flammable material, which adequately supports its weight with a safe
structure which prevents sagging, falls or tipping over of the device.
To position the equipmenton the support structure, proceed as described below:
STEP ACTION
1
Place the equipment in a perfectly vertical position on the support
structure.
2
Act (if necessary) on the screw operated feet adjustment of the
device.
3 Check the flatness with a spirit level.
