Advanced Configuration 9-1
December 2003, M-10177-01
Chapter 9
Advanced Configuration
This chapter describes how to configure the advanced features of your ProSafe Wireless 802.11g
Firewall/Print Server Model FWG114P. These features can be found under the Advanced heading
in the Main Menu of the browser interface.
Using the WAN Setup Options
The first feature category under the Advanced heading is WAN Setup. This menu allows
configuration of a DMZ server, MTU size, port speed, etc. From the Main Menu of the browser
interface, under Advanced, click on WAN IP Setup to view the WAN IP Setup menu, shown
below.

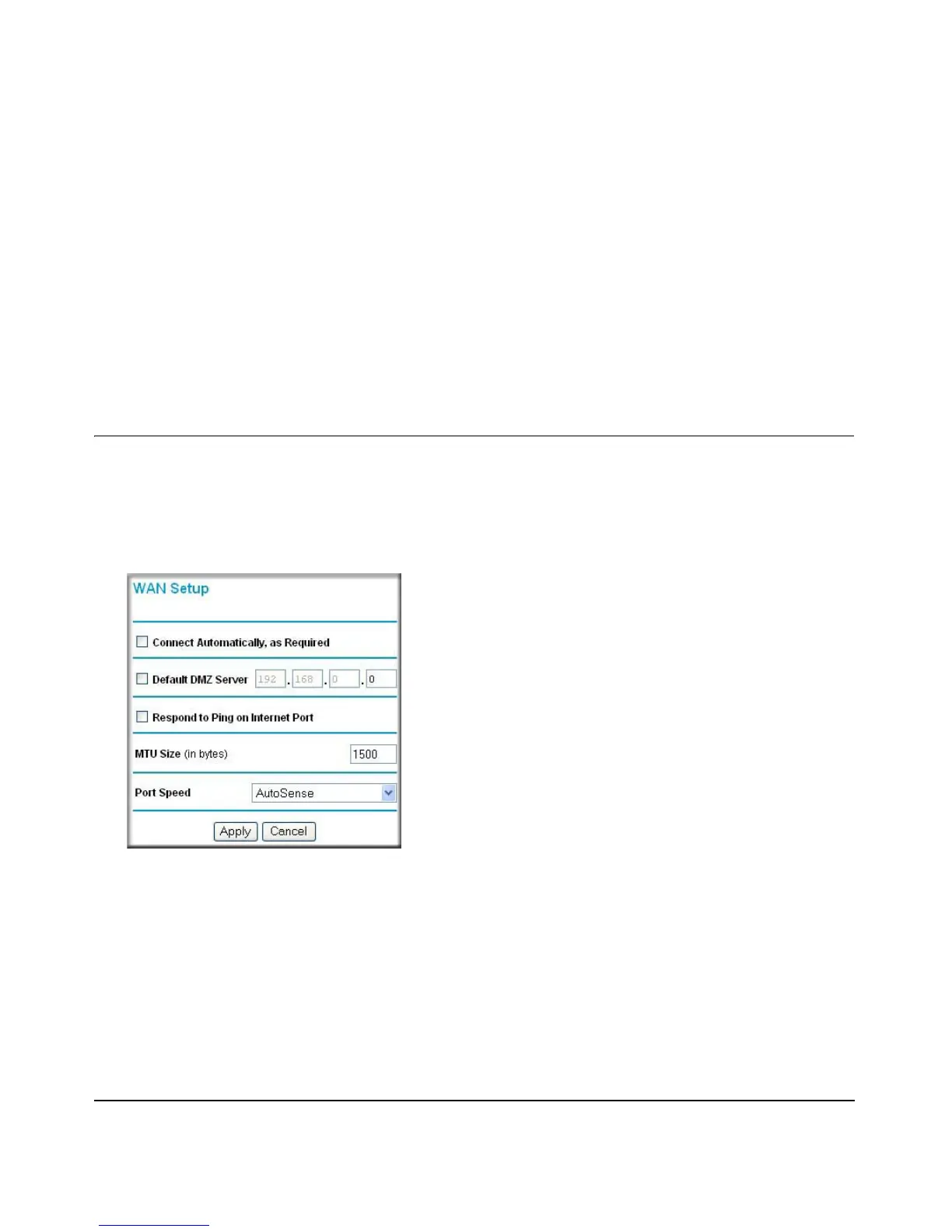

Figure 9-1: WAN Setup Menu
The WAN Setup options let you configure a DMZ server, change the MTU size and set the WAN
port speed. These options are discussed below.
• Connect Automatically, as Required
