Reference Manual for the ProSafe Wireless 802.11g Firewall/Print Server Model FWG114P
Serial Port Configuration 5-5
December 2003, M-10177-01M-10207-01, Reference Manual v2
Basic Requirements for Dial-in
Dial-in requires these elements:
1. A broadband connection to the FWG114P.
2. An analog phone line.
3. A serial modem properly configured and attached to the DB9 connector on the serial port.
4. The Dial-in settings configured and applied to the FWG114P.
How to Configure Dial-in
Follow the steps below to configure a serial port dial-in connection.
1. Configure a serial port modem according to the instructions above.
2. From the Serial Port section of the main menu, click Dial-in.

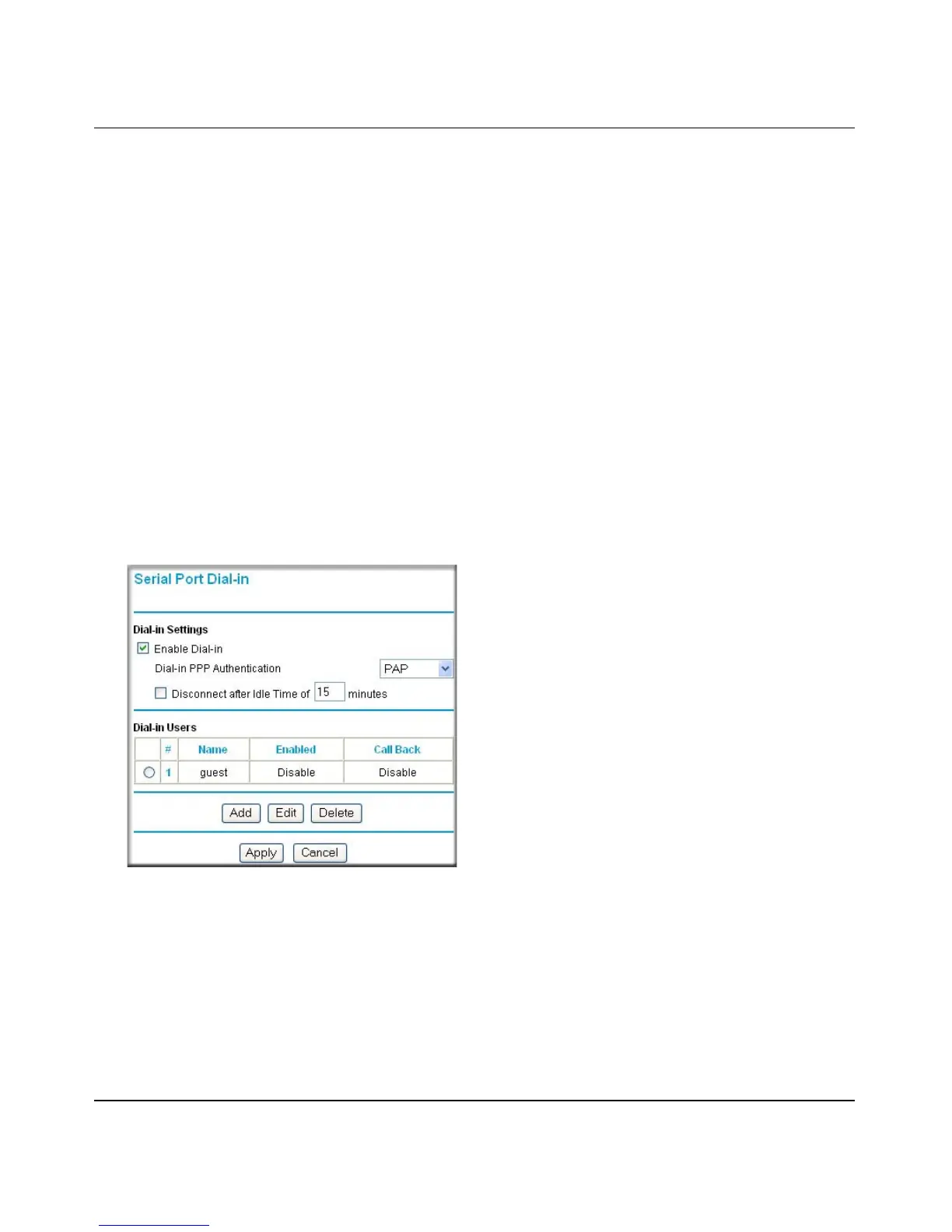

Figure 5-3: Serial Port Dial-in settings screen
3.
Configure the Dial-in settings.
4. Click Apply for the changes to take effect.
