From left to right, the back panel of model M4300-8X8F provides the following
components:
•
Fixed fans for front-to-back air flow.
•
Modular bay in which an APS250W power supply unit (PSU) is installed.
Model M4300-12X12F

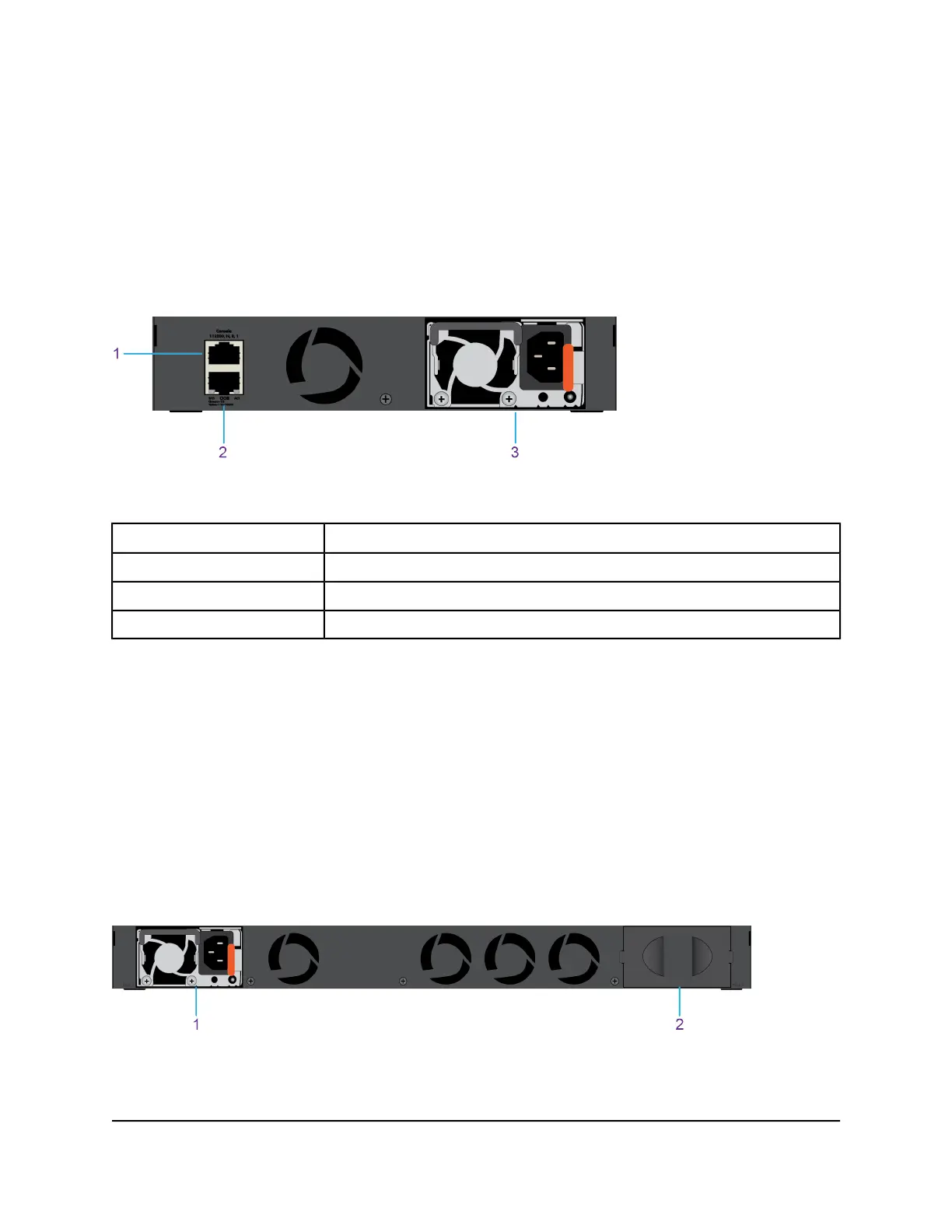

The following figure illustrates the back panel of half-width model M4300-12X12F.
Figure 7. Back panel model M4300-12X12F
DescriptionNumber
RJ-45 RS232 console port1
OOB port with port LEDs2
PSU with AC connector3
From left to right, the back panel of model M4300-12X12F provides the following
components:
•
One out-of-band 1G Ethernet port.
•
One RJ-45 RS232 (115200, N, 8, 1) console port.
•
Fixed fans for front-to-back air flow.
•
Modular bay in which an APS250W power supply unit (PSU) is installed.
Model M4300-24X24F
The following figure illustrates the back panel of full-width model M4300-24X24F.
Figure 8. Back panel model M4300-24X24F
Hardware Installation Guide20Hardware Overview
M4300 Intelligent Edge Series Fully Managed Stackable Switches
