Model M4300-48XF

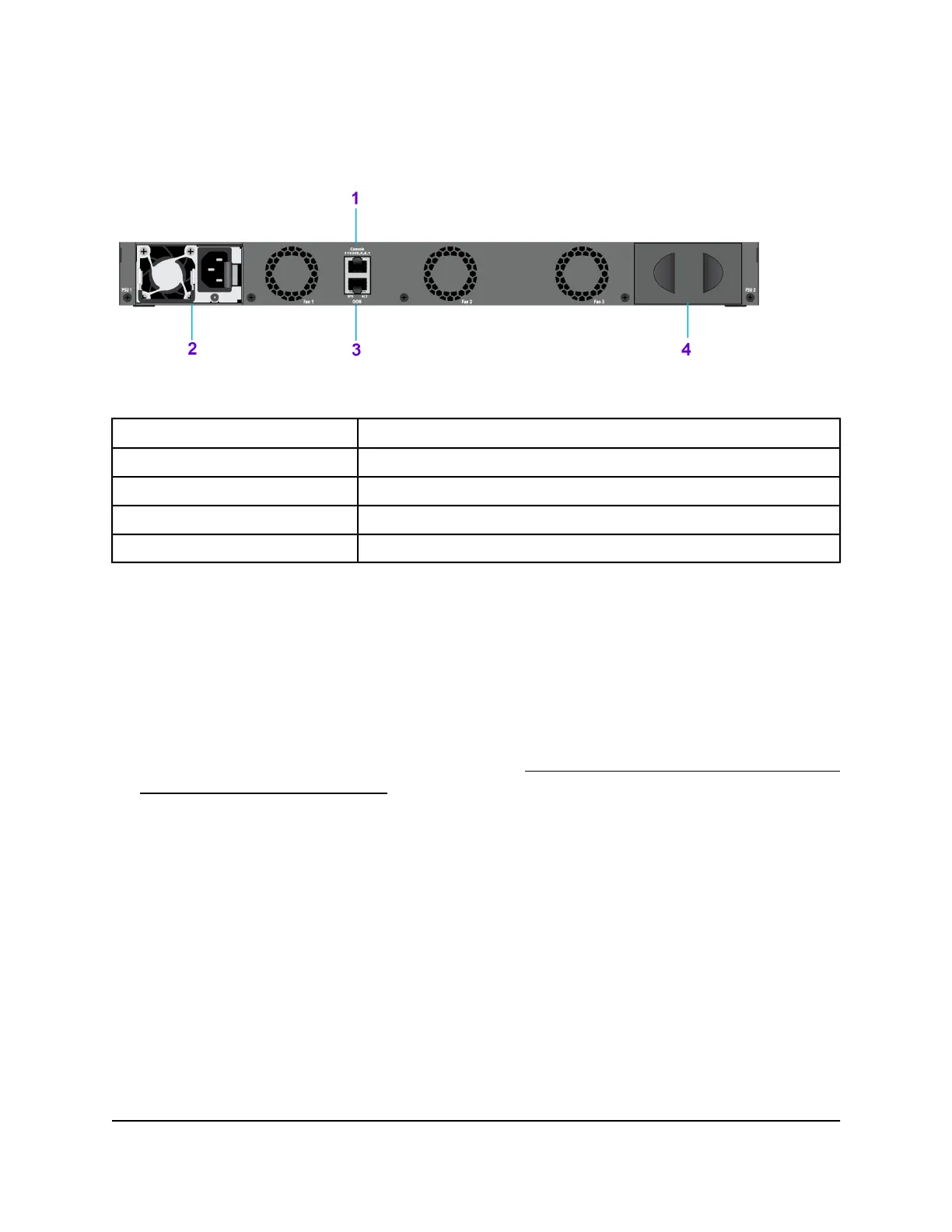

The following figure illustrates the back panel of full-width model M4300-48XF.
Figure 22. Back panel model M4300-48XF
DescriptionNumber
RJ-45 RS232 console port1
PSU 1 with AC connector2
OOB port with port LEDs3
Bay for PSU 24
From left to right, the back panel of model M4300-48XF provides the following
components:
•
Modular bay for power supply unit 1 (PSU 1), which, by default, is an APS250W.
•
Fixed fans for front-to-back air flow.
•
One RJ-45 RS232 (115200, N, 8, 1) console port.
•
One out-of-band (OOB) 1G Ethernet port with a left LED that indicates the speed
and a right LED that indicates the activity (see LEDs, M4300X series full 10G models
with RJ45/SFP+ combo ports on page 38).
•
Modular bay PSU 2 for an optional second PSU.
LEDs, M4300X series full 10G models with RJ45/SFP+
combo ports
The following table describes the LEDs on the front panel of the full 10G models.
For the following models, some port LEDs are on the back panel:
•
For model M4300-24X, the LEDs for the 10GBASE-X SFP+ combo ports are on the
back panel.
•
For model M4300-24XF, the LEDs for the 10GBASE-T RJ45 combo ports are on the
back panel.
Hardware Installation Guide38Hardware Overview
M4300 Intelligent Edge Series Fully Managed Stackable Switches
