To install an SFP transceiver module in a full 10G model:
1. Insert the transceiver into the SFP+ port.
2.
Press firmly on the flange of the module to seat it securely into the connector.

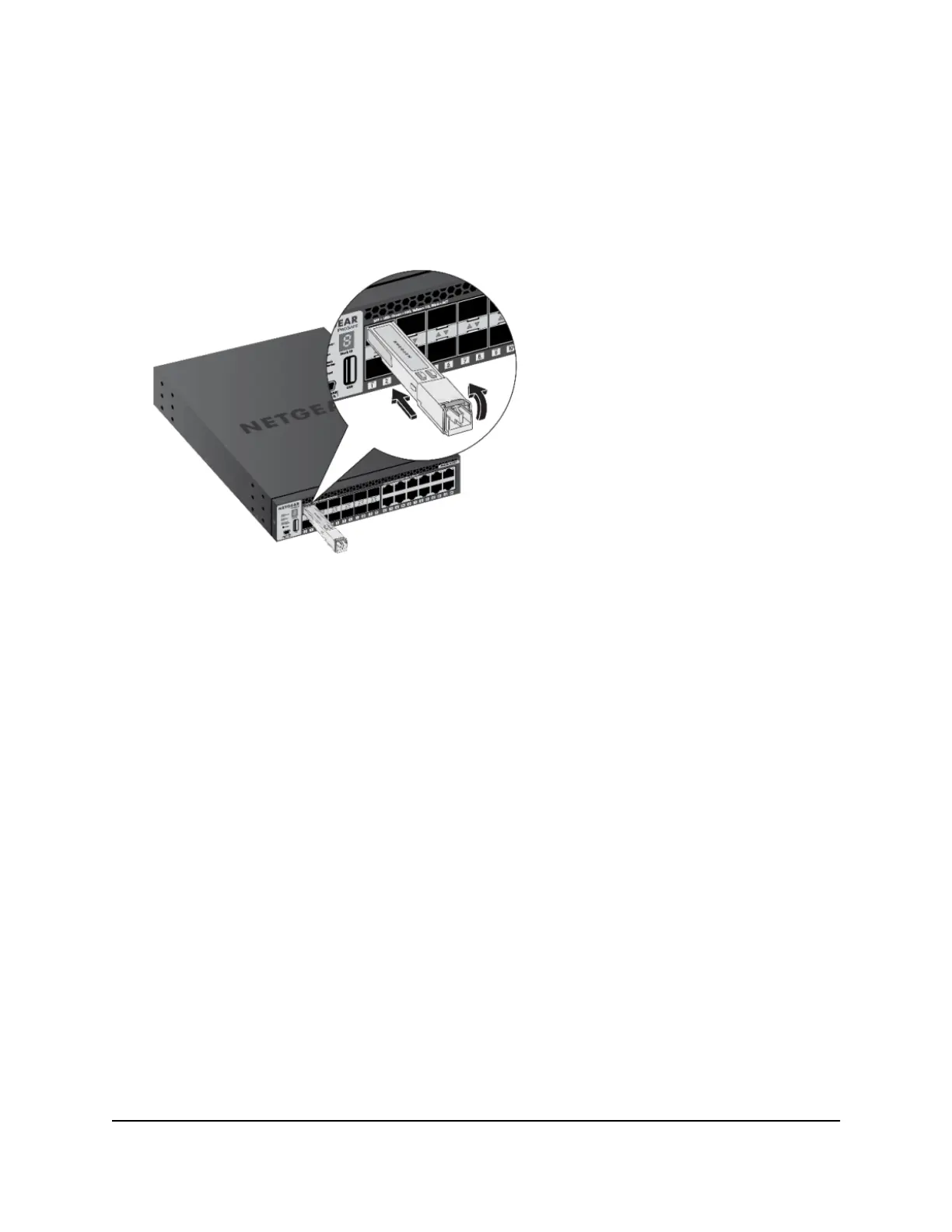

The following figure shows model M4300-12X12F. However, you install SFP
transceiver modules in the SFP+ ports of the other 10G models in the same manner.
Install an SFP transceiver module in an uplink or combo
port
This procedure describes how to install an SFP transceiver module in a 1G model with
10G uplinks or a 10G model with RJ45/SFP+ combo ports. That is, this procedure is for
models M4300-24X, M4300-24XF, M4300-28G, M4300-28G-POE+, M4300-48X,
M4300-48FX, M4300-52G, and M4300-52G-POE+. For models M4300-24X and
M4300-24XF, the SFP+ combo ports are on the back panel.
To install an SFP transceiver module in a 1G models with 10G uplinks or a 10G
model with RJ45/SFP+ combo ports:
1. Insert the transceiver into the SFP+ port.
2.
Press firmly on the flange of the module to seat it securely into the connector.
Hardware Installation Guide57Installation
M4300 Intelligent Edge Series Fully Managed Stackable Switches
